51309218-175 Low Level Analog Mux FTA | Honeywell

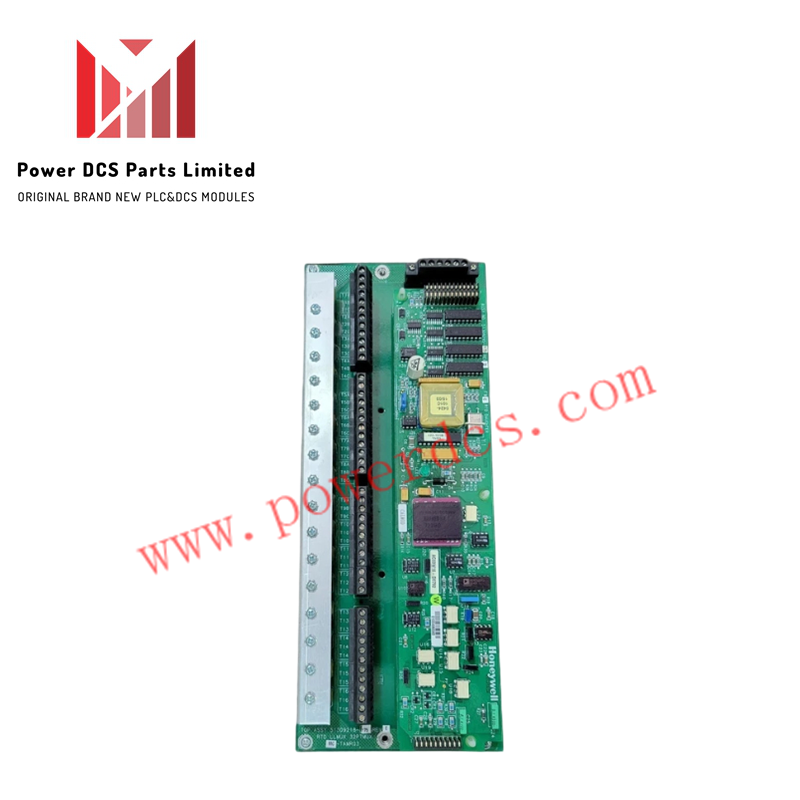

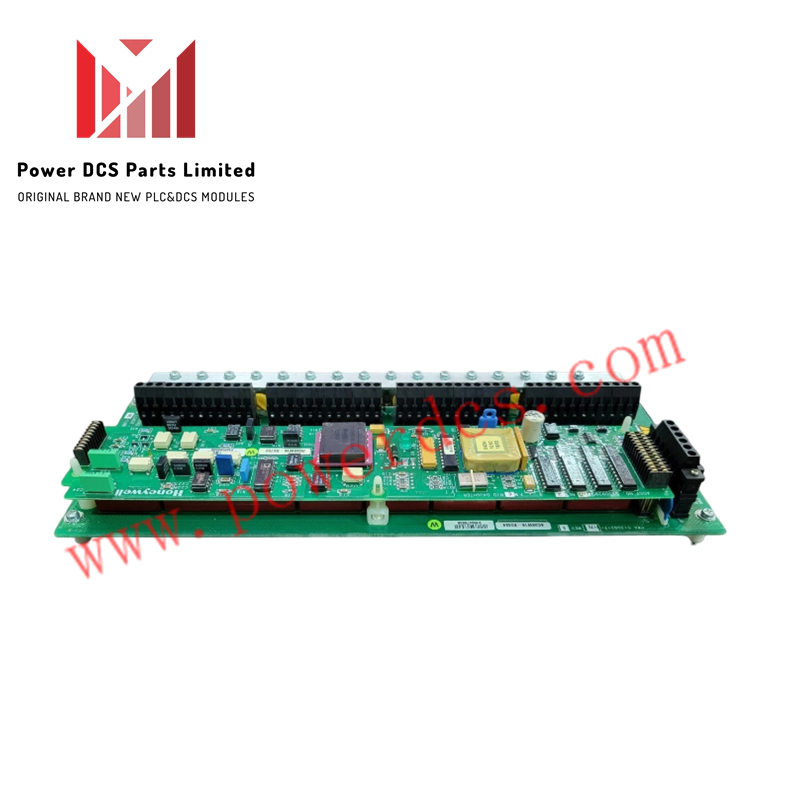

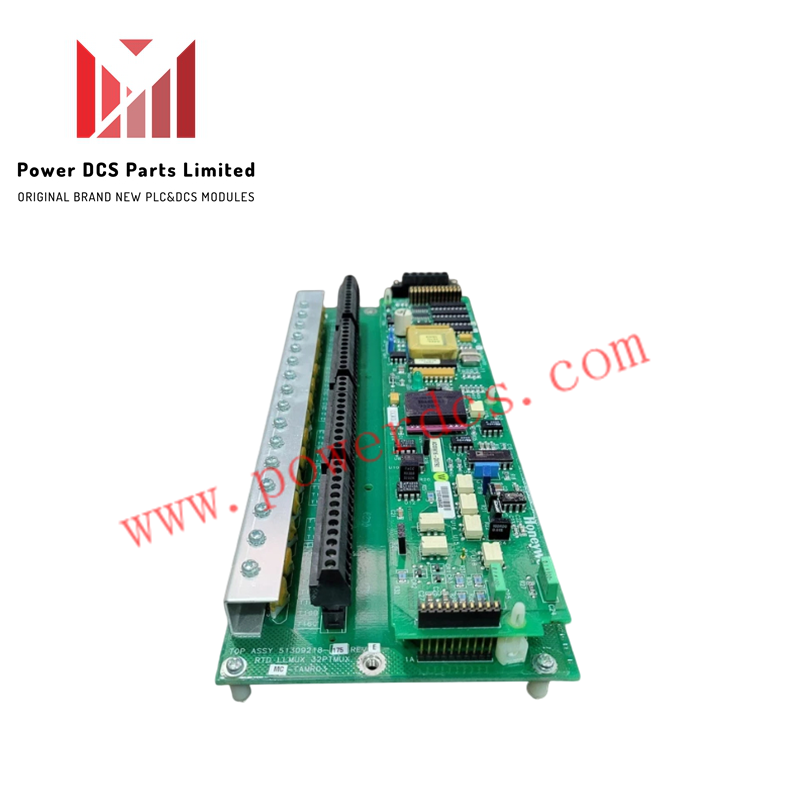

The Honeywell 51309218-175, also cataloged as the 51309218-175 Low Level Analog Mux FTA, operates as a dedicated hardware component for low-level analog signal multiplexing and signal conditioning within Honeywell MC-TAMR03 Rev. E/B systems.

Hardware Specifications

Channel Isolation & Cold Junction Compensation

Designed for high-accuracy temperature acquisition circuits, this assembly integrates dedicated channel-to-channel isolation topology alongside cold junction compensation (CJC) reference paths. The physical signal processing path mitigates Common Mode Rejection Ratio (CMRR) degradation on millivolt-level RTD inputs, maintaining signal fidelity across all primary multiplexing node switches prior to A/D conversion on the backplane input processor.

Frequently Asked Questions

Q: What restricts the operational lifecycle of the electromechanical switching matrix on this board?

A: Channel switching frequency and physical contact wear degrade electromechanical relays over time; applications requiring continuous high-speed multiplexing are typically retrofitted to the solid-state 51305907-175 revision to eliminate mechanical failure points.

Q: How does cabinet vibration affect the operational integrity of the 51309218-175 board?

A: Mechanical vibration can induce contact bounce or intermittent open-circuits across the electromechanical relays, requiring installation within isolated enclosures compliant with standard industrial vibration thresholds.

Field Installation Guidelines

• Power down the target subsystem rack fully before seating or dismounting the termination board.
• Route field instrumentation wiring in dedicated signal trays away from high-voltage AC cables to reduce EMI coupling on low-level RTD circuits.
• Terminate all field cable shields at the designated chassis ground bus bar; do not double-ground shield wires.
• Verify physical engagement with the enclosure rails to guarantee mechanical stability against ambient vibration.
• Use standard grounded wrist straps and anti-static handling procedures during installation to prevent ESD damage to board-level componentry.
