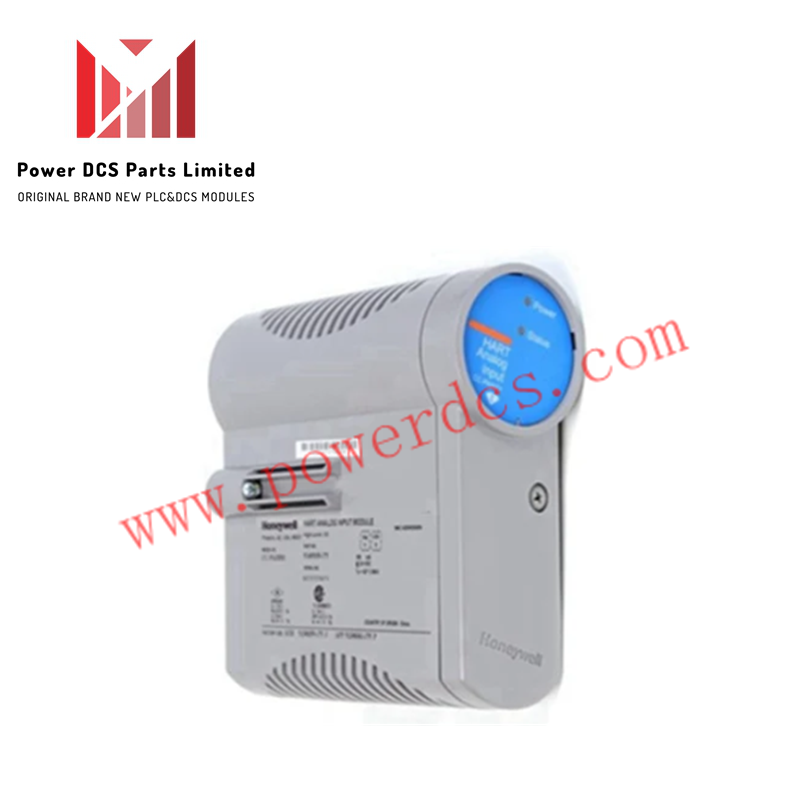

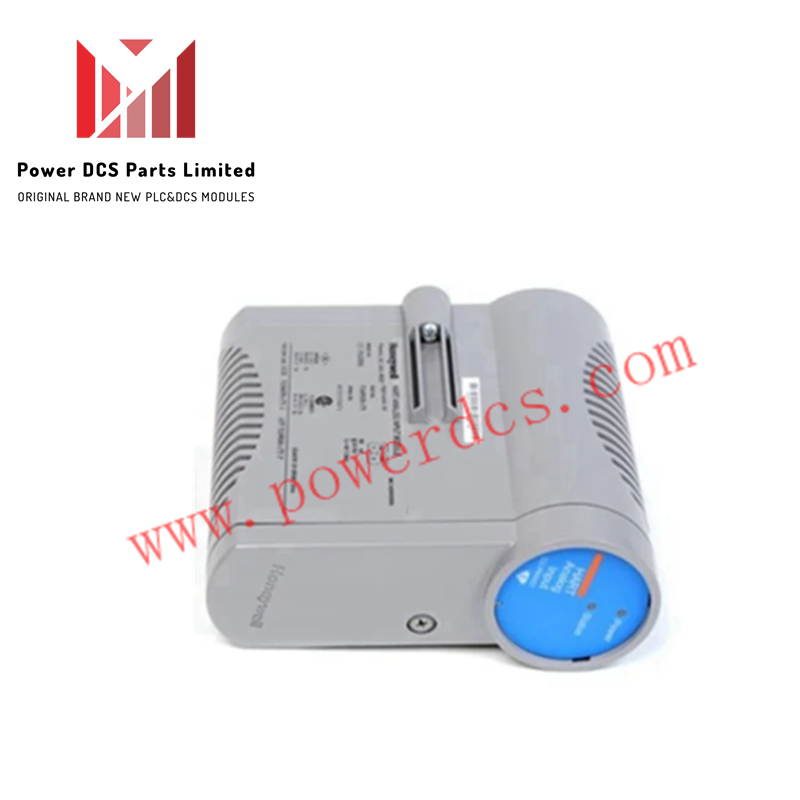

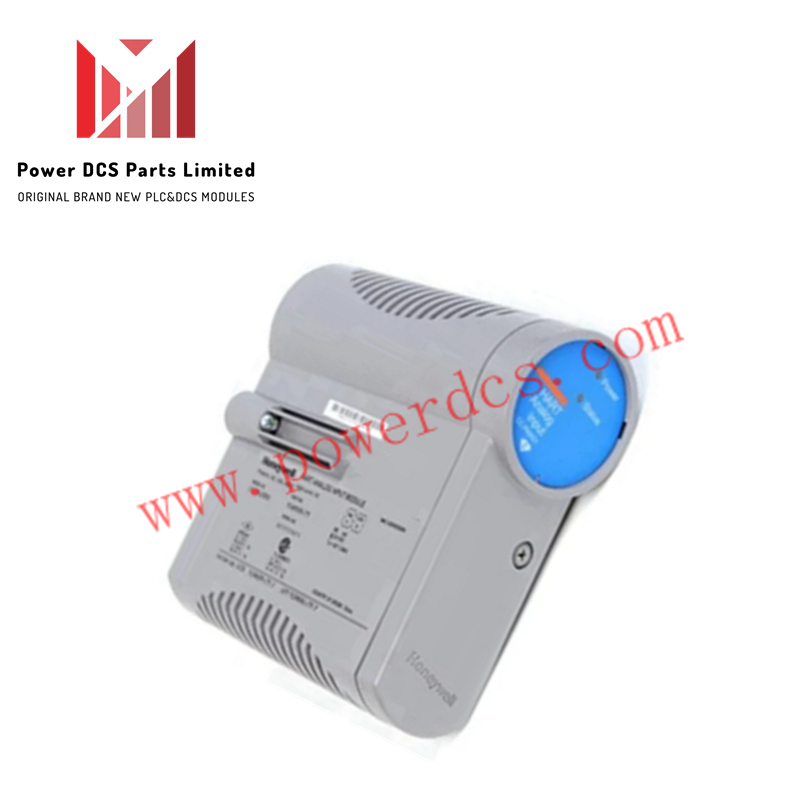

8U-TAIDA1 Honeywell Series C Analog Input Module

The Honeywell 8U-TAIDA1, also cataloged as the 8U-TAIDA1 Analog Input Module, operates as a dedicated hardware component for analog field signal acquisition within Honeywell Experion PKS C300 controller systems.

Hardware Specifications

Process Loop Power Management and Channel Isolation

The Honeywell 8U-TAIDA1 conditions high-accuracy analog signals originating from field transmitters across eight differential channels. The hardware supports 4-20 mA HART loop protocol current transmitters, voltage sources up to +/-10 V, and resistive sensors up to 100 ohm. Channel-to-channel isolation and galvanic suppression prevent field ground loops from degrading signal integrity before internal 12-bit analog-to-digital conversion occurs. Integrated surge filters clip electrical transients on incoming field lines to protect the internal digital bus interface during steady-state processing.

Frequently Asked Questions

Q: Can 4-20 mA loop transmitters be connected directly to the differential input channels of the 8U-TAIDA1?

A: Yes, the module accepts standard 4-20 mA current signals across its differential inputs alongside voltage and resistance ranges.

Q: What analog conversion resolution is provided across the input ranges?

A: The onboard analog-to-digital converters process all configured input signals at 12-bit resolution with an overall accuracy of +/-0.1% of full scale.

Q: Does the 8U-TAIDA1 support online module insertion and removal?

A: Hot-swapping is supported when installed on compatible Experion PKS Series C I/O Termination Assemblies (IOTA) without removing backplane power.

Field Installation Guidelines

1. Power down field instrument loop supplies prior to connecting or wiring signal leads to the IOTA terminal blocks.
2. Align the 8U-TAIDA1 card edges with the plastic guide rails of the target Series C assembly slot.
3. Seat the module firmly into the backplane pin connector and tighten the top and bottom captive retaining screws to secure mechanical grounding.
4. Connect individual channel wiring using twisted shielded pair conductors for all 4-20 mA current and voltage signals.
5. Terminate wire shields at the dedicated chassis ground bar at one end only to prevent differential ground loops.
6. Verify channel selection parameters and input ranges in the Experion builder software prior to placing loops into active control modes.
