900K01-0201 Quadrature Module | Honeywell

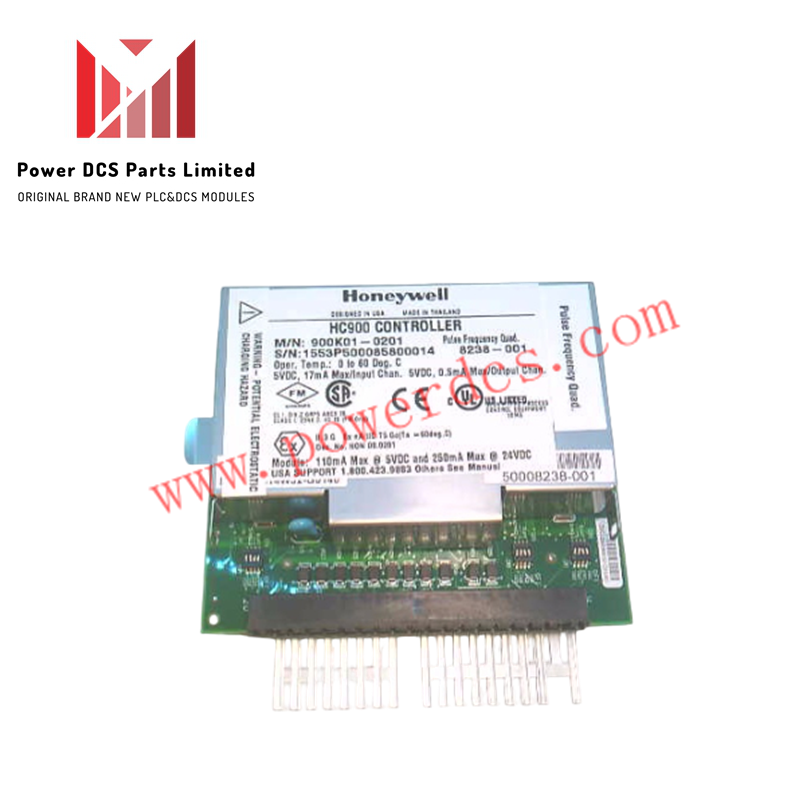

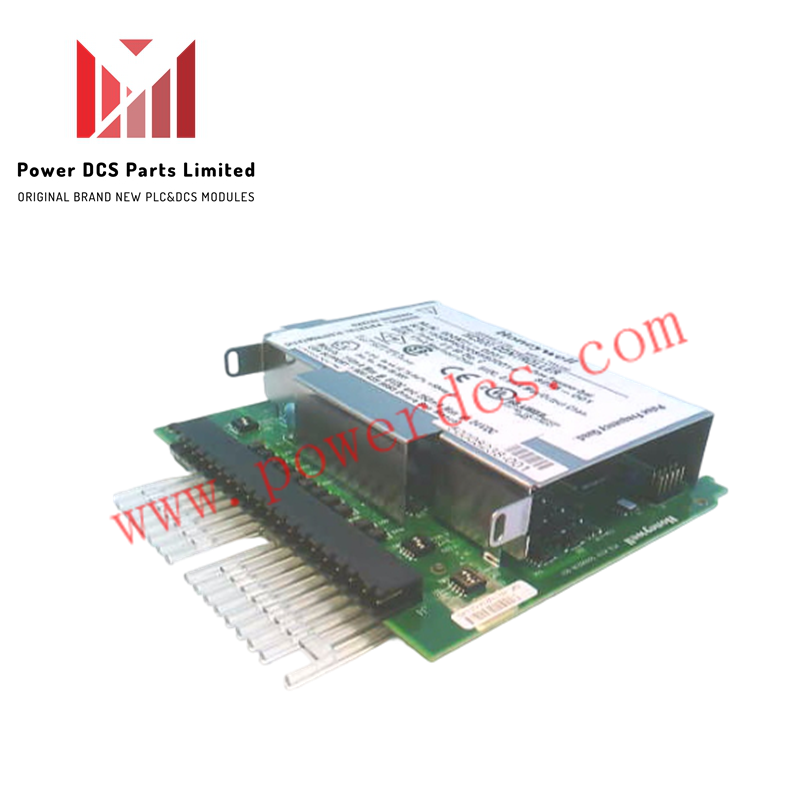

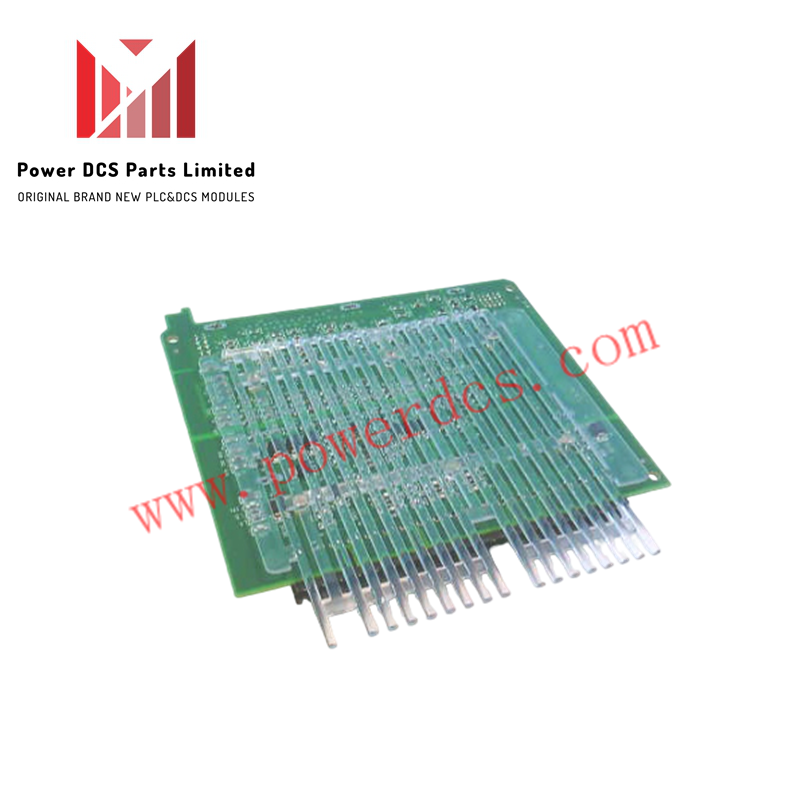

Configured for pulse and frequency signal processing in ControlEdge HC900 architectures, the Honeywell 900K01-0201 (900K010201 Quadrature Module) provides direct physical execution across 4 independent input channels for high-speed counter and encoder feedback measurement.

Hardware Specifications

Honeywell DCS Process Control and Loop Isolation

Integrated within Honeywell ControlEdge HC900 distributed control environments, the 900K01-0201 quadrature card processes high-frequency pulse trains and rotational encoder signals from field sensors. While process control loops routinely utilize 4-20 mA HART loop protocols or FOUNDATION Fieldbus connectivity for analog variables, high-speed pulse acquisition demands precise edge detection and robust channel-to-channel isolation. Internal signal filtering prevents high-frequency common-mode noise and electrical transients from corrupting positional accuracy or frequency calculations across the 4 active channels.

Frequently Asked Questions

Q: Can the 900K01-0201 quadrature module be replaced while the ControlEdge rack remains energized?

A: Hot-swapping high-speed counter modules under live system power should be performed strictly according to system architecture guidelines to prevent transient bus states or encoder pulse miscounts.

Q: What are the input voltage parameters for acceptable pulse signal detection?

C: The module accepts discrete pulse inputs ranging from 0 to 24 VDC, designed for direct compatibility with standard industrial encoders and proximity switches.

Q: How does the 10 ms update rate impact high-speed frequency measurement?

A: The 10 ms scan interval dictates the internal register refresh frequency for accumulated pulse counts and velocity derivations; ensure field encoder pulse rates align with system bandwidth constraints.

Field Installation Guidelines

• Verify that backplane power is turned off or stable before inserting the module into the designated ControlEdge HC900 rack slot.
• Ensure module retention clips are fully engaged to establish continuous ground and power connections with the backplane bus.
• Route shielded encoder and pulse input cables through dedicated metallic conduits, maintaining total separation from high-voltage power lines and VFD output cabling.
• Terminate encoder signal cable shields to the cabinet grounding bar at a single point to prevent ground loops and maintain noise immunity.
