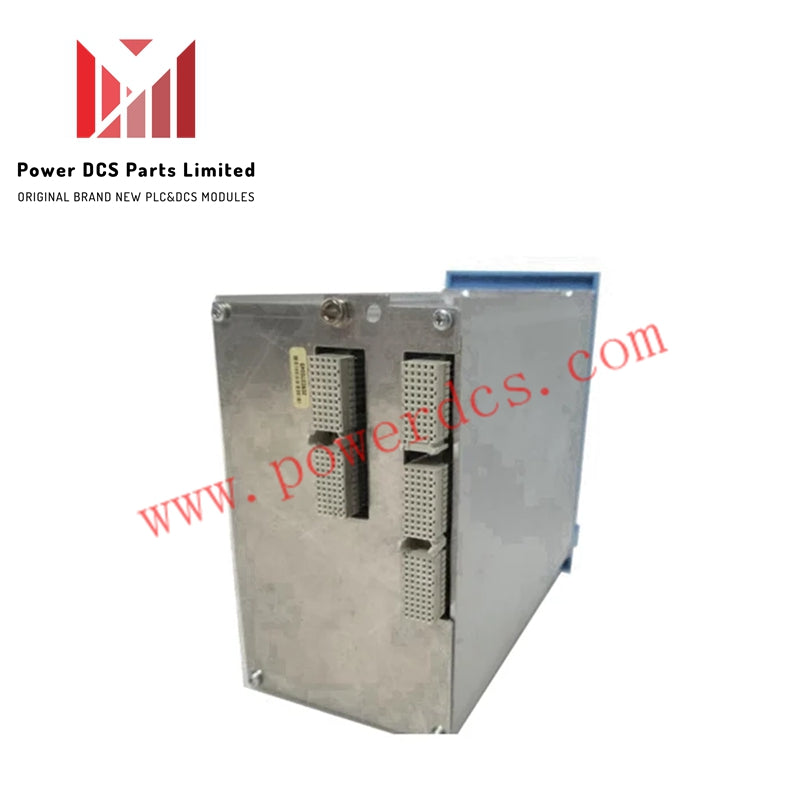

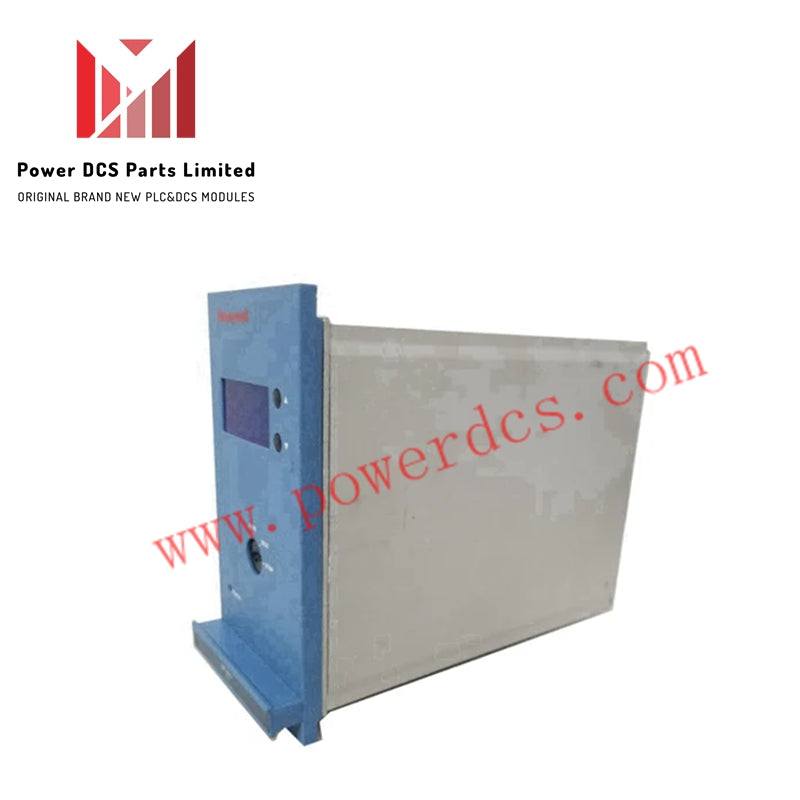

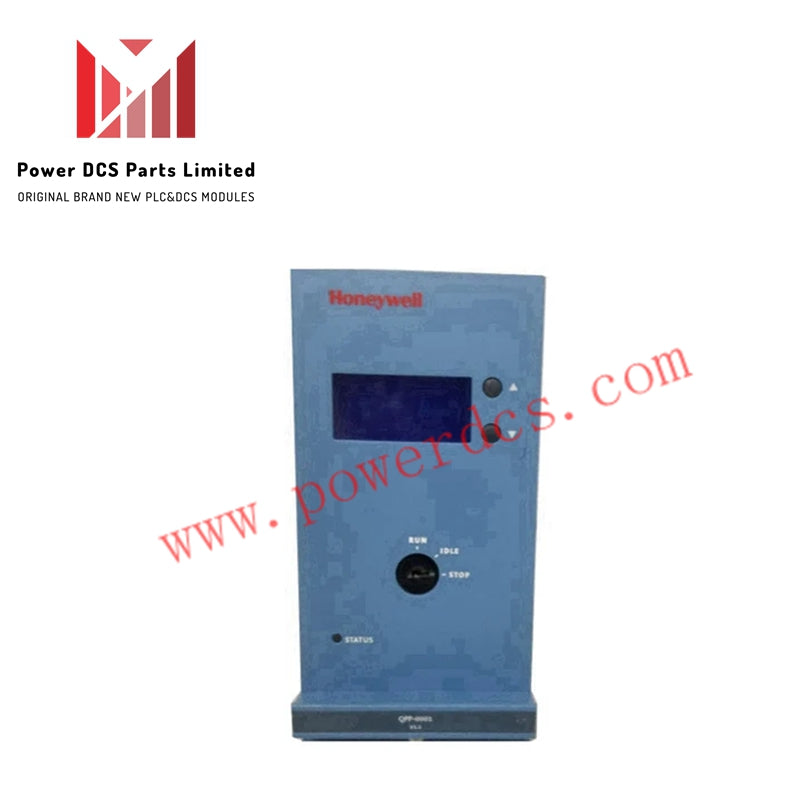

FC-QPP-0002 V1.0 | Honeywell | Quad Processor Safety Module

The Honeywell FC-QPP-0002 V1.0, also cataloged as the FC-QPP-0002 Quad Processor Safety Module, operates as a dedicated hardware component for deterministic safety logic processing and communication interfacing within Honeywell DCS networks. Certified to IEC 61508 SIL 2 standards, the four-processor assembly executes safety-critical control algorithms while managing real-time data exchange across RS-485 and Modbus RTU protocols. The unit operates within a temperature envelope of -20 to +60 deg C to guarantee uninterrupted hardware monitoring and trip enforcement.

Hardware Specifications

Channel-to-Channel Isolation & Communication Gateway

The FC-QPP-0002 V1.0 incorporates channel-to-channel isolation networks and differential transceiver protection across its serial links. By isolating field-side RS-485 and Modbus RTU communication lines from internal quad-processor logic buses, the module prevents ground loops and electrical transients from propagating into core processing circuits. This isolated architecture maintains data integrity during high-density multi-drop field device operations while preserving SIL 2 safety loop execution across the system backplane.

Frequently Asked Questions

Q: How does the quad-processor architecture handle internal fault detection?

A: The four internal processing nodes perform cross-checking execution of safety logic routines, triggering diagnostic fault registers and forcing output lines to a fail-safe state if instruction divergence occurs.

Q: What are the installation wiring restrictions for the RS-485 serial interface?

A: Serial links require shielded twisted-pair cables with 120-ohm termination resistors fitted at both physical line endpoints to minimize signal reflections and common-mode noise.

Q: Does the module require active external forced-air cooling?

A: No, the module relies on passive convection cooling within the chassis enclosure across the operating temperature range of -20 to +60 deg C.

Field Installation Guidelines

1. Disconnect all primary rack power sources prior to inserting or removing the processor module.
2. Align the module card edges with the designated chassis slot guides and slide the assembly into place.
3. Seat the backplane connector completely into the bus header and hand-tighten front panel retention screws.
4. Connect RS-485 serial field wiring using shielded cables, terminating the shield drain wire to cabinet earth ground.
5. Verify that relative humidity inside the control cabinet remains below 95% non-condensing before energizing system power.
