FC-TDIO51 Digital Safety I/O Module | Honeywell

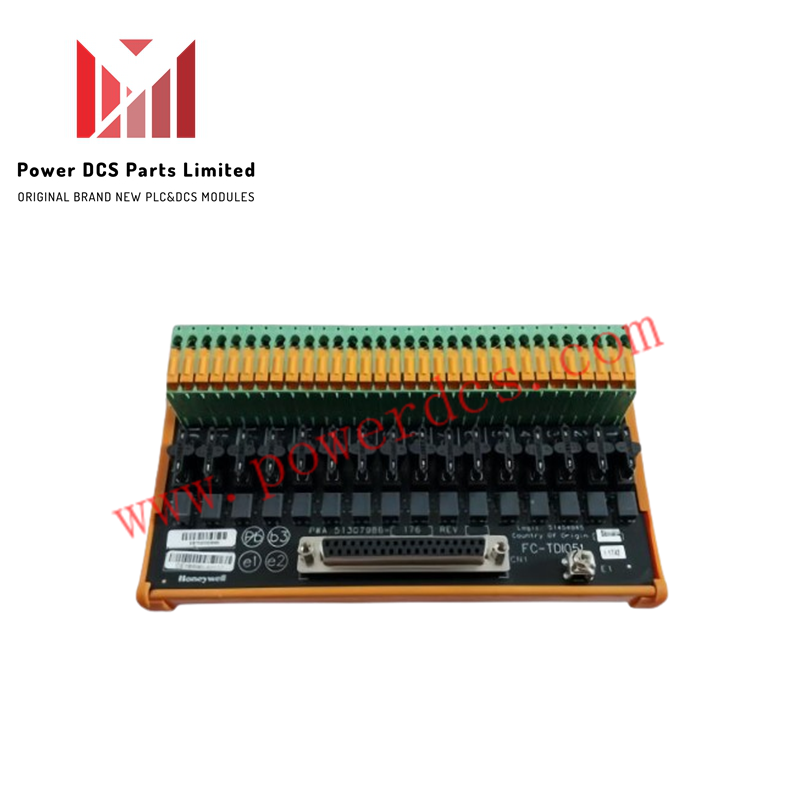

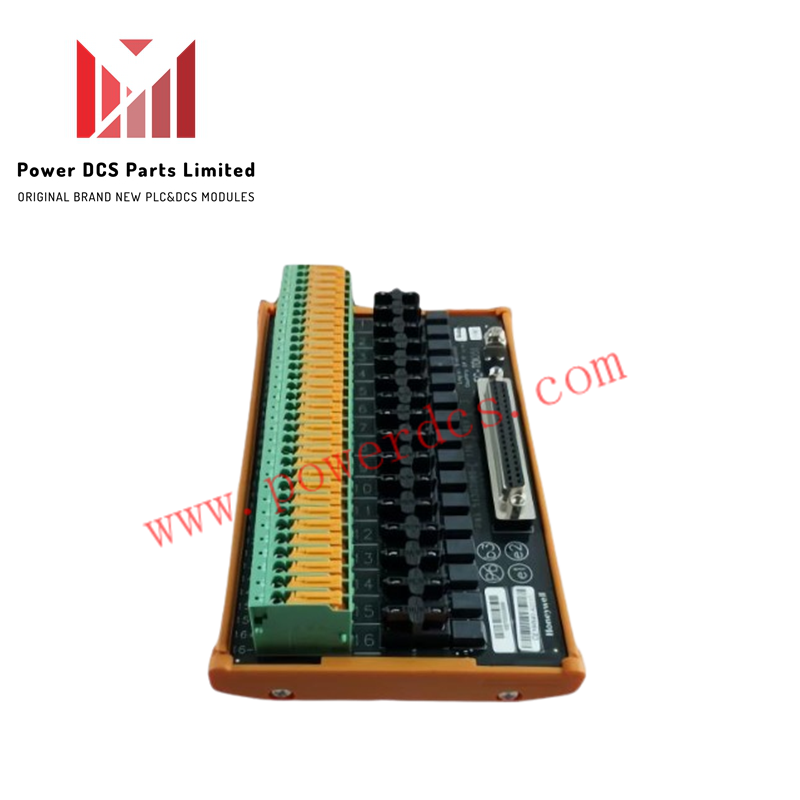

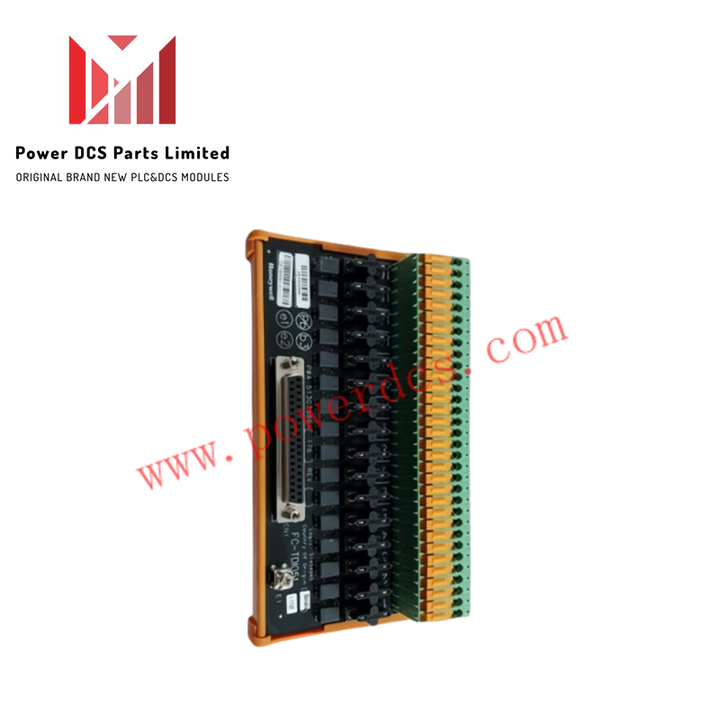

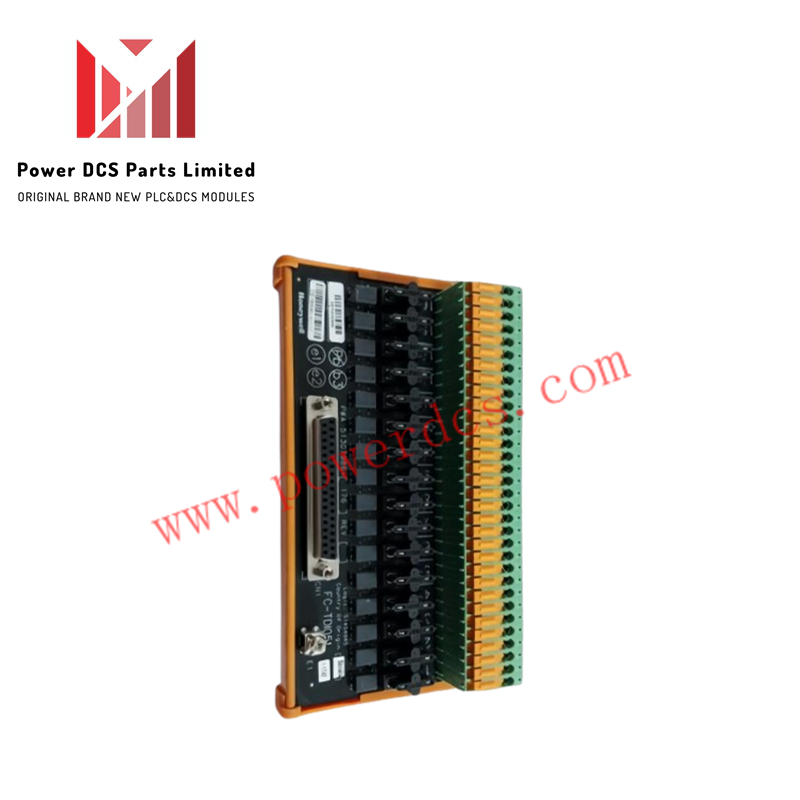

Configured for discrete signal acquisition and final execution in Honeywell Safety Manager and Experion PKS architectures, the Honeywell FC-TDIO51 (FC-TDIO51 Digital Safety Input/Output Module) provides direct physical/electrical execution. It handles bidirectional binary signals, monitoring discrete field switches while driving output actuation to solenoids and relays at 24 VDC nominal operating levels.

Hardware Specifications

Process Control & DCS Signal Processing Characteristics

The FC-TDIO51 incorporates high-density channel-to-channel isolation to prevent electrical fault propagation and ground loops across distributed control topologies. Built to interface with 4-20 mA HART loop protocol instruments and safety-instrumented systems (SIS), the onboard conditioning circuitry suppresses electromagnetic noise on discrete inputs while managing fast output switching transients. Active current limiting shields upstream backplane buses against field-side short circuits and overvoltage conditions.

Frequently Asked Questions

Q: What power supply levels and backplane connection parameters govern the FC-TDIO51?

A: The FC-TDIO51 operates on a nominal 24 VDC supply voltage drawn directly through the backplane chassis interface.

Q: How does channel isolation function during field wiring fault events?

A: Integrated channel-to-channel isolation electrically decouples each input/output pathway, preventing localized field line faults or ground loops from impairing adjacent channels or logic solver operations.

Q: Is hot-swapping permitted for this digital I/O card during live cabinet operation?

A: Hot-swapping is supported provided the field terminal connections are isolated or power supply states are verified, preventing voltage spikes across backplane connector pins during module replacement.

Field Installation Guidelines

• Mechanical Installation: Slide the module into the designated rack slot inside the enclosure. Press evenly on the front fascia until backplane connectors seat fully, then lock the retention latches.
• Wiring & Termination: Terminate discrete field input and output conductors to the corresponding terminal blocks. Observe strict polarity alignment for all 24 VDC power and signal runs.
• Shielding & Grounding: Connect field cable drain wires directly to the cabinet earth bus bar using single-point ground straps to eliminate stray electrical noise interference.
• Cable Routing: Maintain a minimum 30 cm physical clearance between low-voltage 24 VDC digital lines and high-voltage AC power wiring inside wire ducts.
