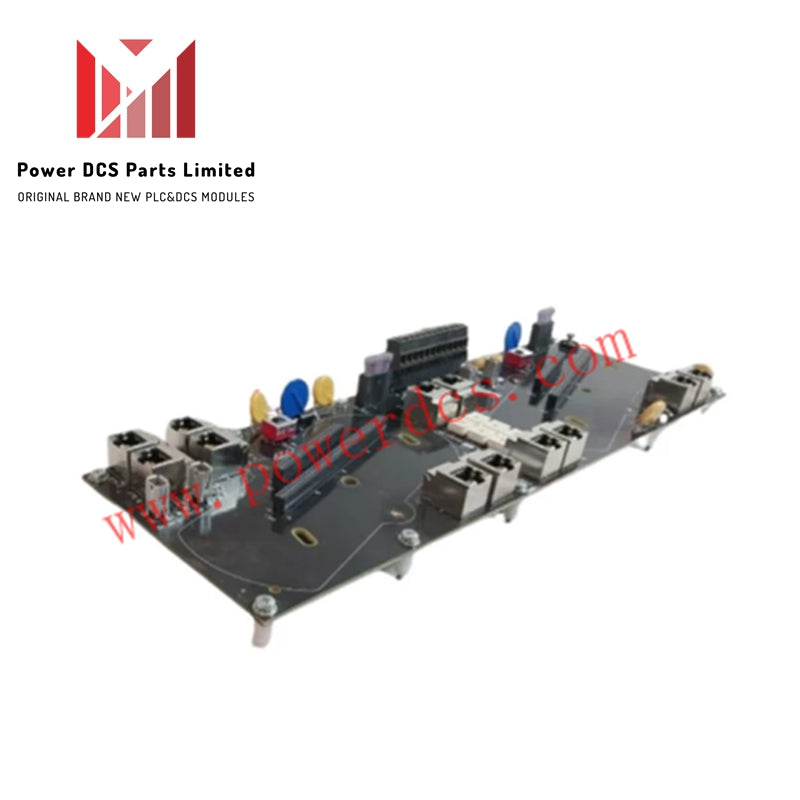

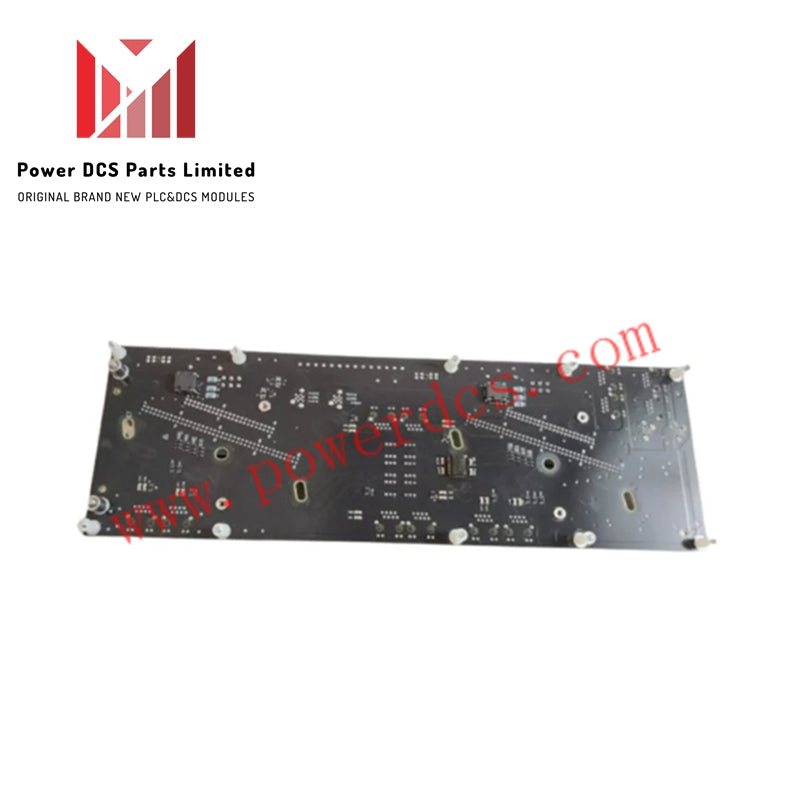

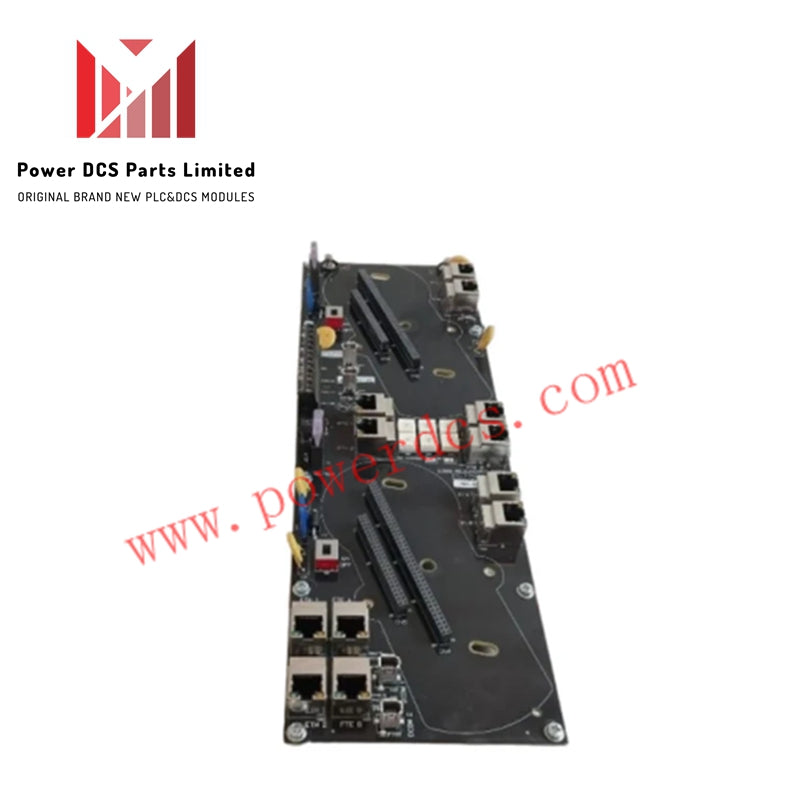

FC-TUIO11 Safety Universal I/O Module | Honeywell

Configured for universal field signal execution in Honeywell Safety Manager and Fail Safe Controller systems, the Honeywell FC-TUIO11 (FC-TUIO11 Safety Universal I/O Module) provides direct physical and electrical interface functions for safety-related input and output channels. The hardware manages bidirectional signal conditioning and channel routing, executing discrete and analog safety loop execution across controller backplane assemblies.

Hardware Specifications

Process Control & DCS Signal Processing Characteristics

The FC-TUIO11 safety universal I/O module incorporates high-density channel-to-channel isolation to prevent loop interference and ground loops between field sensors and the logic solver backplane. Fully compatible with standard 4-20 mA HART loop protocol field devices and discrete safety loops, the module filters high-frequency electromagnetic noise while maintaining defined safety voltage limits (Um = 250 V). Integrated current limiting protects central backplane communication buses from unexpected field-side overvoltage conditions or short circuits.

Frequently Asked Questions

Q: What are the nominal power supply requirements for the FC-TUIO11 module?

A: The module requires a nominal 24 VDC supply, drawing a rated current of 55 mA with a total power consumption of 1.22 W.

Q: What entity parameters define the maximum safety limits of the field output channels?

A: The hardware specifies a maximum safe voltage (Um) of 250 V, with output safety parameters defined as Uo = 25.2 V, Io = 113.13 mA, and Po = 712.7 mW.

Q: How is field signal isolation maintained across the universal channels?

A: Universal channels utilize galvanic channel-to-channel isolation to decouple field loop circuits from internal logic circuits and neighboring I/O channels.

Field Installation Guidelines

• Mechanical Mounting: Align the module enclosure with the baseplate chassis slots in the safety cabinet and press firmly until the locking mechanism fully latches into position.
• Wiring & Termination: Connect field loop conductors to the dedicated terminal block pins. Verify cable wire strip lengths and ensure proper polarity alignment for 24 VDC circuits.
• Shielding & Grounding: Connect field wiring cable shields directly to the cabinet main earth grounding bar using low-impedance grounding clamps to prevent noise interference.
• Wiring Separation: Route low-voltage universal I/O cables in separate wireways from high-voltage AC power distribution lines, maintaining at least 30 cm clearance.
