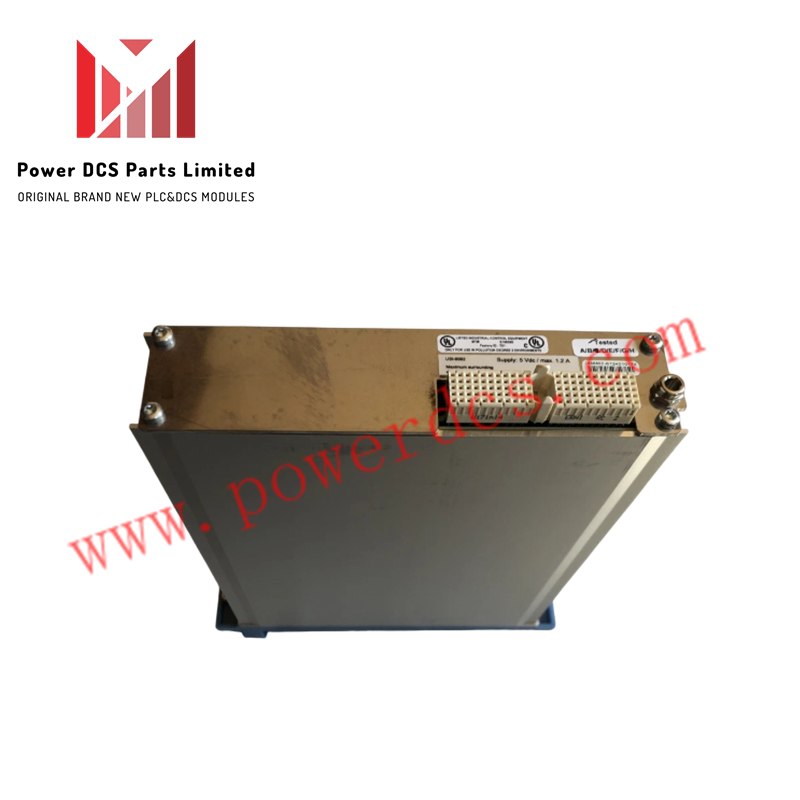

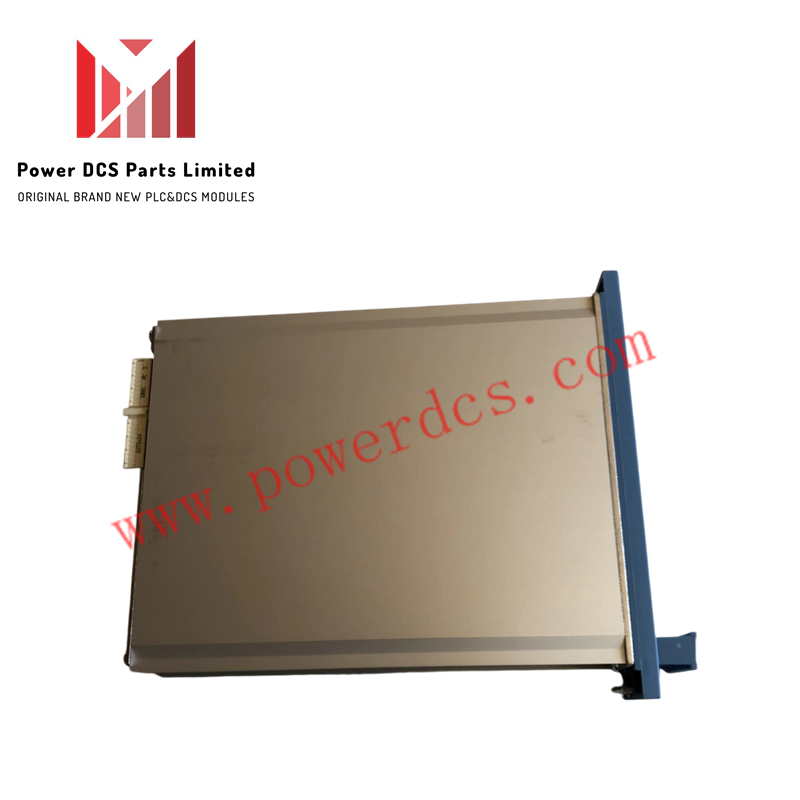

FS-USI-0002 Honeywell Safety Manager System Module

Specifications

  • Manufacturer: Honeywell

  • Product No.: FS-USI-0002

  • Condition： 10 العناصر الموجودة في المخزون

  • Product Type: Interface Modules

  • Payment:T/T, Western Union

  • Weight: 850g

  • Shipping port: Xiamen

  • Warranty: 12 months

تفاصيل المنتج

وصف

Configured for universal system interfacing and diagnostic execution in Honeywell Safety Manager architectures, the Honeywell FS-USI-0002 (FS-USI-0002 Safety Manager System Module) provides direct physical/electrical execution.

Hardware Specifications

Parameter Specification
Model FS-USI-0002
Brand Honeywell
Origin USA
Weight Approx. 0.85 kg
Dimensions Standard Safety Manager rack module dimensions
Operating Temp 0 deg C to +60 deg C
Power Consumption 24 VDC backplane powered
Module Type Universal System Interface (USI) Module
Communication Safety-rated internal bus communication with system processors
Signal Processing Secure processing and isolation of safety-critical I/O signals
Diagnostics Continuous real-time module health and bus status monitoring
Installation Standard chassis slot insertion with retention screws

4-20 mA HART Loop Protocol and Channel-to-Channel Isolation

The FS-USI-0002 interface module maintains strict galvanic isolation between its internal processing logic and field-side communications to prevent transient overvoltages from propagating across the Safety Manager backplane. Integrated filtering networks attenuate high-frequency switching noise on internal power rails, preserving high channel-to-channel isolation references required for downstream analog modules processing 4-20 mA HART loop protocol telemetry.

Frequently Asked Questions

Q: What primary technical role does the FS-USI-0002 module fulfill within the Safety Manager rack?

A: The module functions as a safety-rated universal system interface that handles secure data communication and continuous diagnostic monitoring between local processors and rack I/O modules.

Q: Does the FS-USI-0002 module support live insertion and hot-swapping?

A: Module replacement must follow established Safety Manager maintenance procedures; hot-swapping requires verifying that redundant interface channels are active to prevent system trips.

Q: How does the module indicate internal health and communication status?

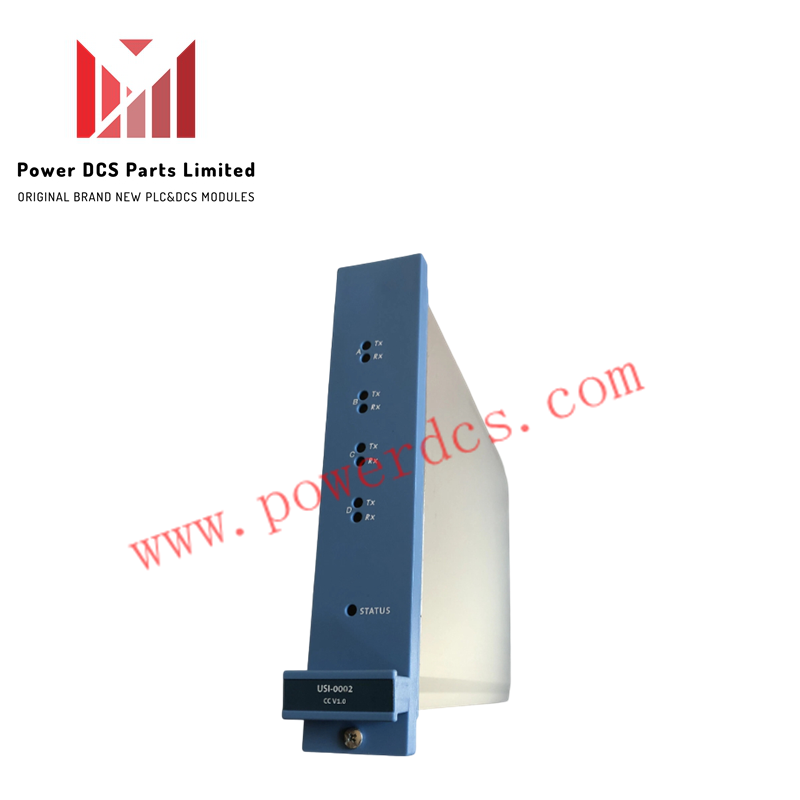

A: Front-panel LED indicators provide real-time visual feedback regarding power status, internal diagnostic test results, and bus communication activity.

Field Installation Guidelines

  • Ensure backplane power is isolated or follow certified safety system maintenance protocols prior to module insertion or removal.
  • Align the module PCB guide edges with the chassis slot rails before pushing the board firmly into the backplane connector.
  • Tighten the top and bottom panel retention screws to secure the chassis earth connection and prevent vibration displacement.
  • Ensure all field wiring and shield grounding terminals comply with Safety Manager installation guidelines to prevent ground loops.
