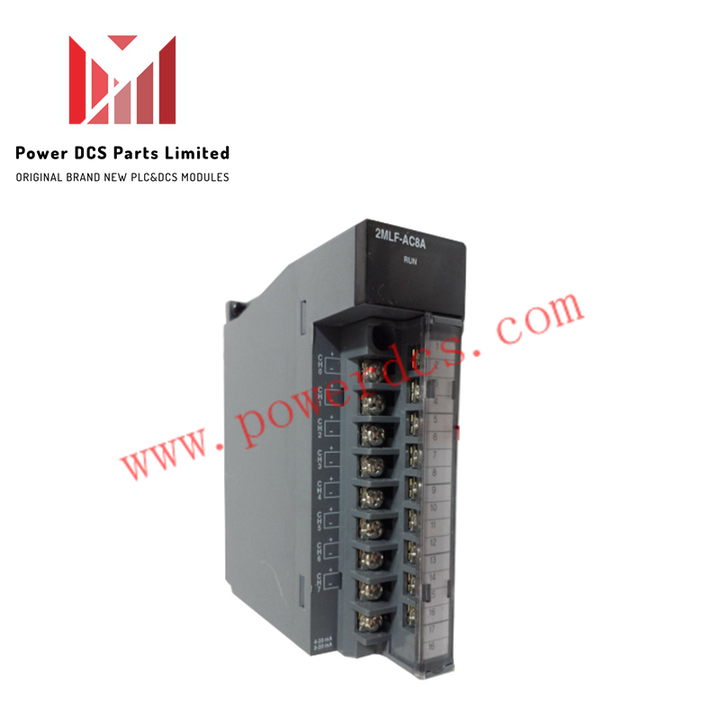

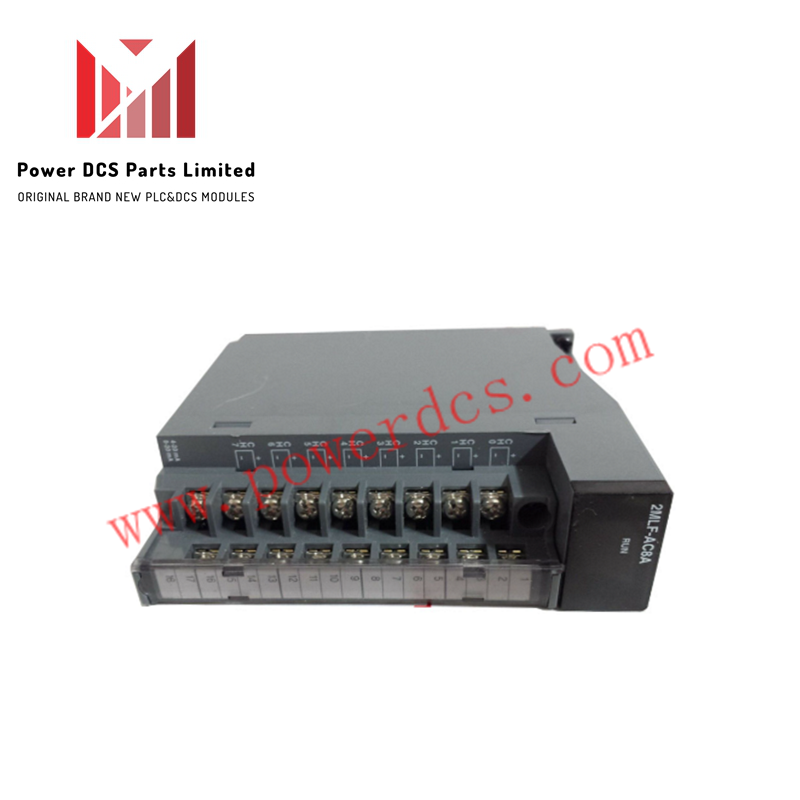

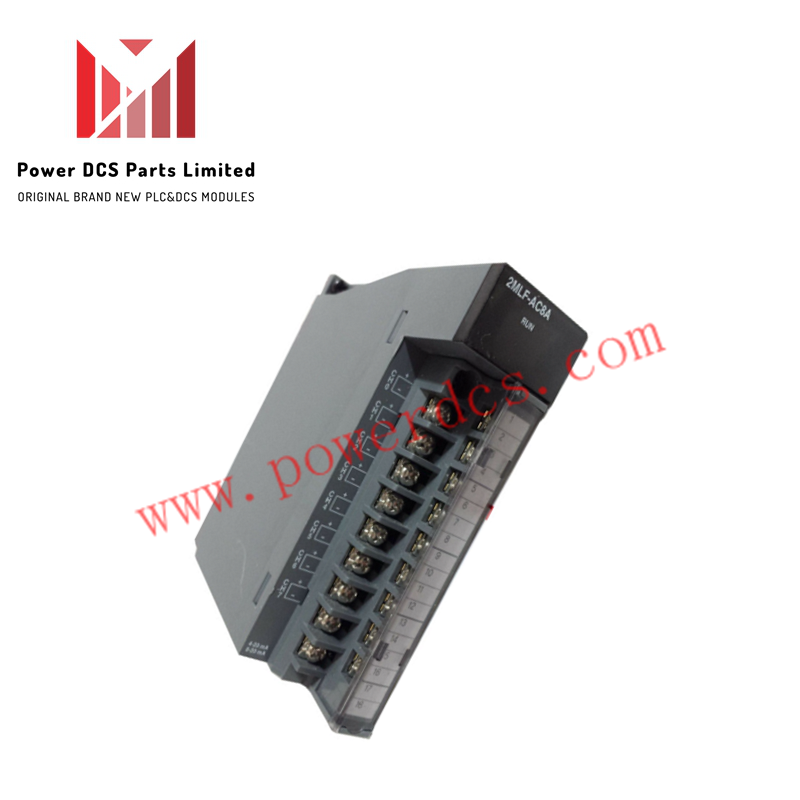

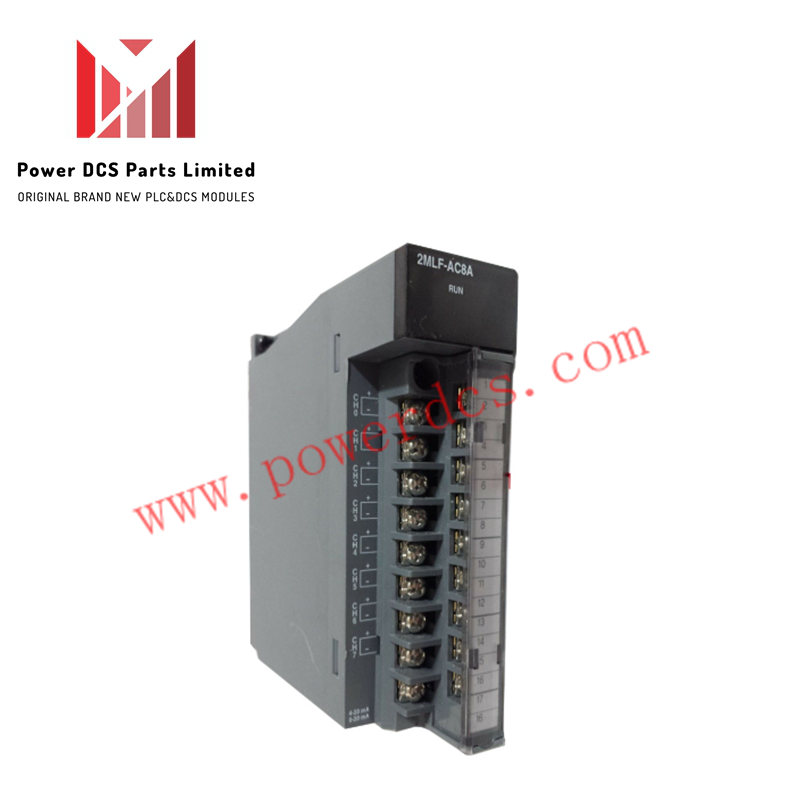

Honeywell 2MLF-AC8A Analog Input Module
Specifications
Manufacturer: Honeywell
Product No.: 2MLF-AC8A
Condition： 10 العناصر الموجودة في المخزون
Product Type: Analog Input Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months
تفاصيل المنتج
وصف
The 2MLF-AC8A is an 8-channel analog current input module designed by Honeywell for programmable logic controller applications. It converts analog current signals into digital values with high accuracy and fast sampling rates, interfacing through an 18-point terminal block.
Signal Processing and Isolation
The module processes 8 current input channels with a maximum conversion speed of 250 us per channel. Optical photocoupler isolation is provided between the input terminals and the internal PLC power circuit to protect control logic from field voltage spikes, though individual channels share a common ground reference without inter-channel isolation.
Addressing and Current Consumption
System integration supports flexible memory allocation, allowing either a fixed assignment of 64 I/O points or a variable assignment of 16 I/O points depending on backplane configuration. The module operates on internal logic power, drawing 420 mA from the 5 VDC backplane bus.
| Parameter | Specification |
|---|---|
| Model | 2MLF-AC8A |
| Brand | Honeywell |
| Product Type | Analog Input Module |
| Number of Channels | 8 channels |
| Input Type | Current |
| Accuracy | <= ±0.2% (at 25 ±5 deg C), <= ±0.3% (at 0-55 deg C) |
| Max Conversion Speed | 250 us/channel |
| Absolute Max Input | ±30 mA |
| Isolation Method | Photocoupler between terminals and PLC power (no isolation between channels) |
| Terminal Type | 18-point terminal block |
| I/O Address Allocation | Fixed: 64 points, Variable: 16 points |
| Current Consumption | 420 mA @ 5 VDC |
| Weight | 0.14 kg |
| Shipping Weight | 2 kg |
Frequently Asked Questions
Q: Are the input channels on the 2MLF-AC8A isolated from each other?
A: No, the photocoupler isolation is present only between the input terminals and the internal PLC power; there is no channel-to-channel isolation.
Q: How fast does the 2MLF-AC8A convert analog current signals?
A: The module achieves a maximum conversion speed of 250 us per channel.
Q: What are the absolute maximum input limits for this module?
A: The module tolerates an absolute maximum input current rating of ±30 mA.
