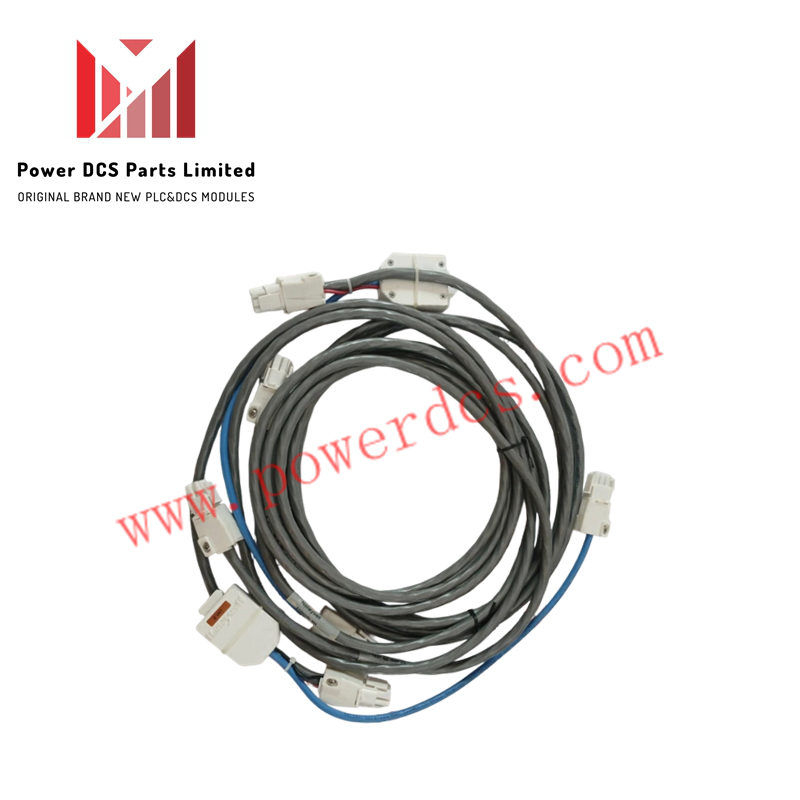

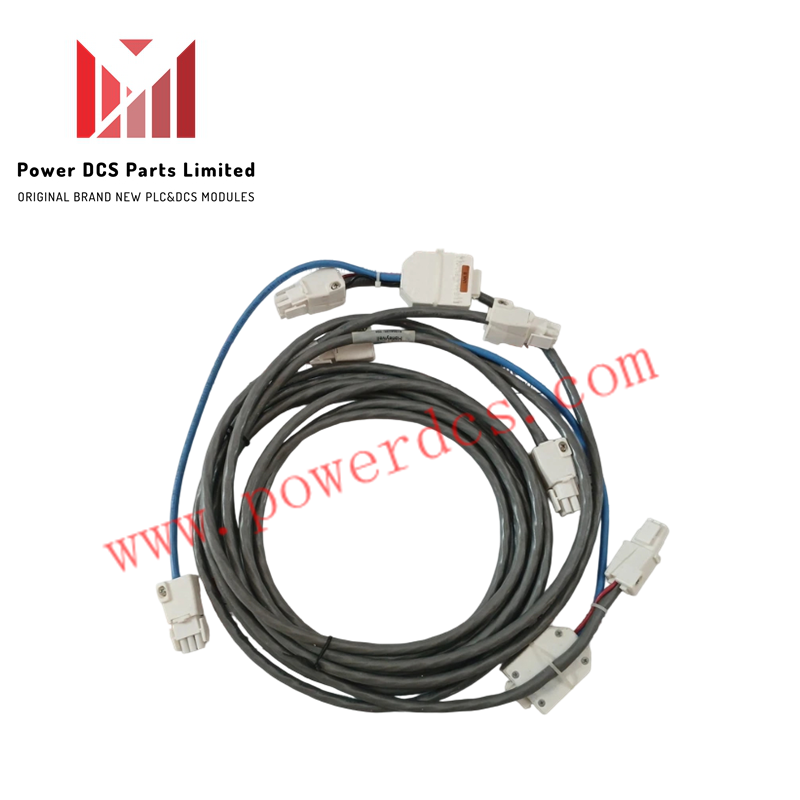

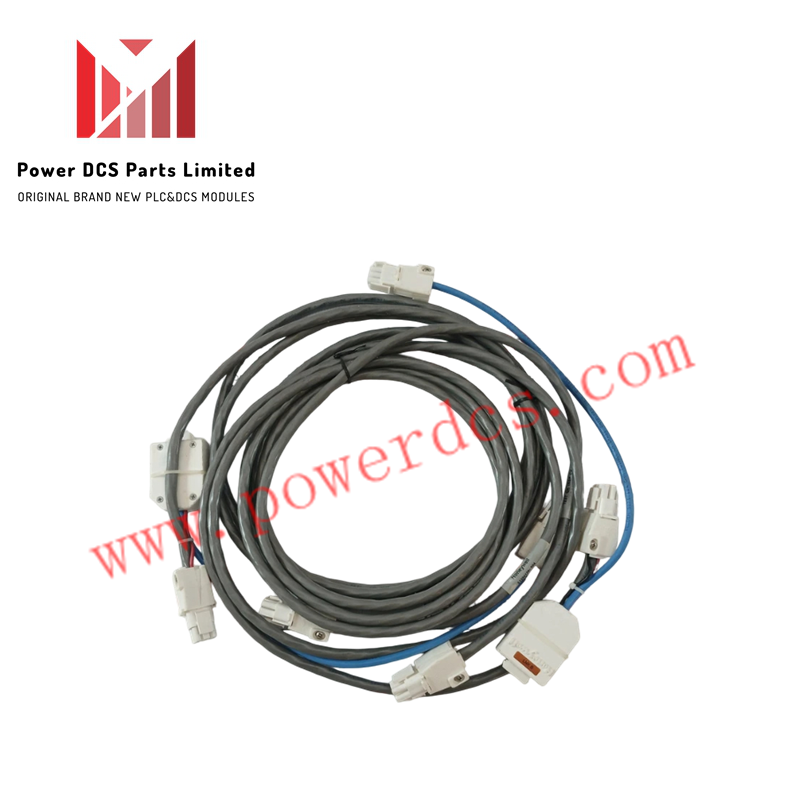

HONEYWELL 51204126-004 Power Link Cable Set

The 51204126-004 (Rev B) is a 4-meter Process Manager (PM) power cable set manufactured by Honeywell for Distributed Control System (DCS) infrastructure. It delivers regulated DC power across Process Manager card files while integrating an I/O link protection circuit to maintain signal fidelity. Featuring a 124 Ohm controlled impedance and a 300 V insulation rating, this assembly supports reliable operation alongside 4-20 mA HART loop communication networks.

Link Protection and Impedance Control

The integrated I/O link protector safeguards power distribution logic and connected controller modules against transient electrical noise and power spikes. With a characteristic impedance of 124 Ohm, the cable suppresses reflections and signal degradation over its 4-meter length, ensuring stable signal transmission in high-density industrial control enclosures.

Field Installation Guidelines

When deploying or replacing the 51204126-004 cable assembly, observe the following physical installation steps:

1. De-energize system power before installing or removing the cable assembly to prevent electrical transients.
2. Route the cable away from high-voltage AC conductors to minimize EMI and RFI interference.
3. Ground the cable shield at the controller termination point only to eliminate ground potential loops.
4. Verify complete connector engagement with the I/O link protector interface before restoring power.
5. Inspect the cable jacket and maintain recommended bend radii to protect internal conductor insulation.

Frequently Asked Questions

Q: Can the Honeywell 51204126-004 cable set be replaced while system power is active? A: No, cable replacement requires a full system power-down to prevent signal transients and maintain system bus stability.

Q: How should the cable shield be grounded during field installation? A: The shield must be grounded strictly at the controller termination point to prevent induced noise and ground loops.

Q: What is the benefit of the 124 Ohm impedance specification on this cable? A: The controlled 124 Ohm impedance maintains signal integrity and prevents reflections across extended communication and power paths.
