Honeywell 51307186-275 Header Board
Specifications
Manufacturer: Honeywell
Product No.: 51307186-275
Condition： 10 العناصر الموجودة في المخزون
Product Type: Header Boards
Product Origin: USA
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months
تفاصيل المنتج
وصف

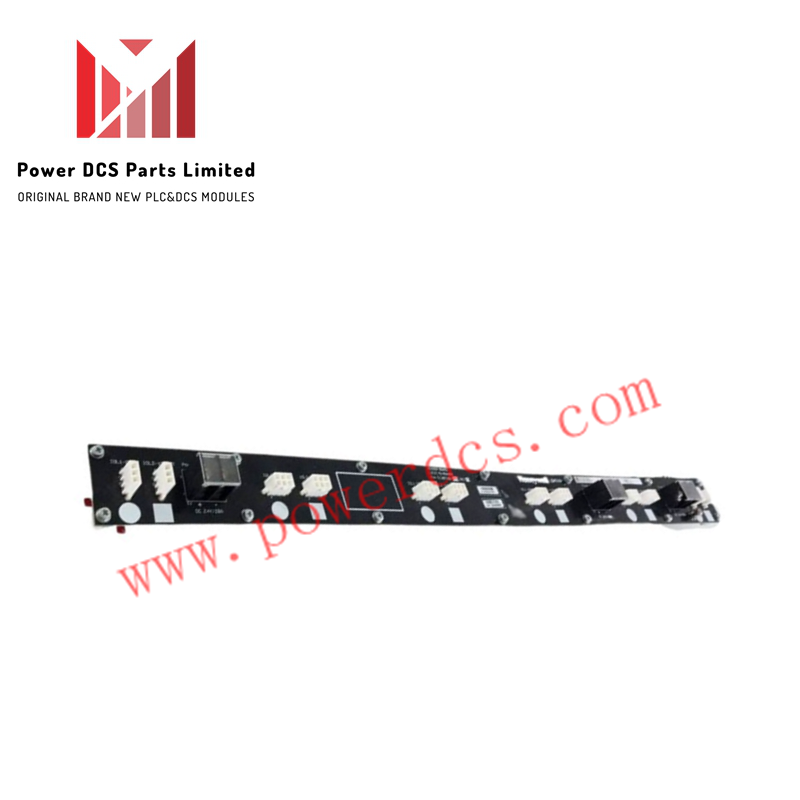

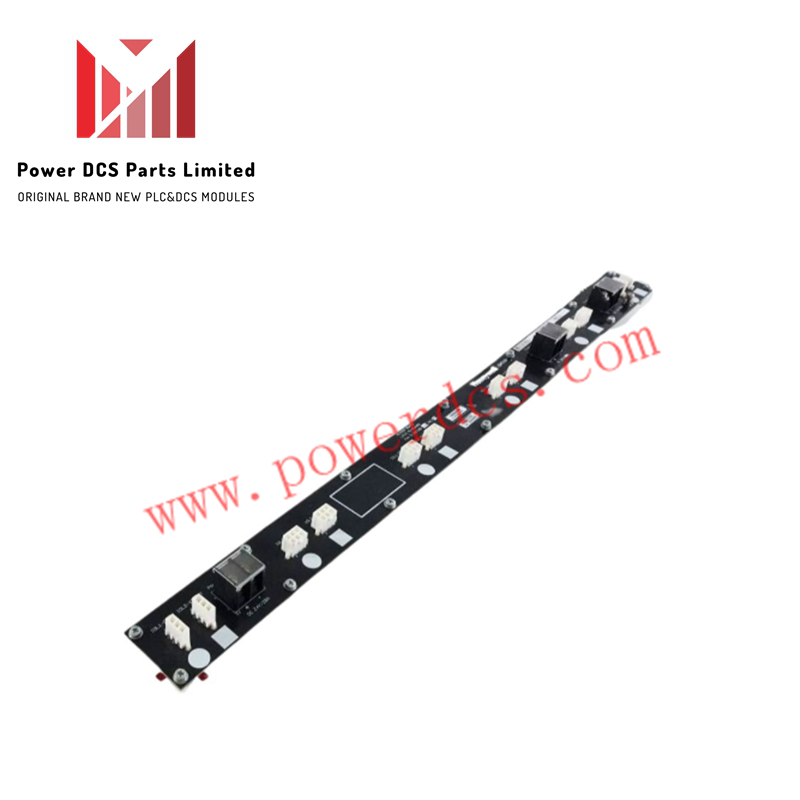

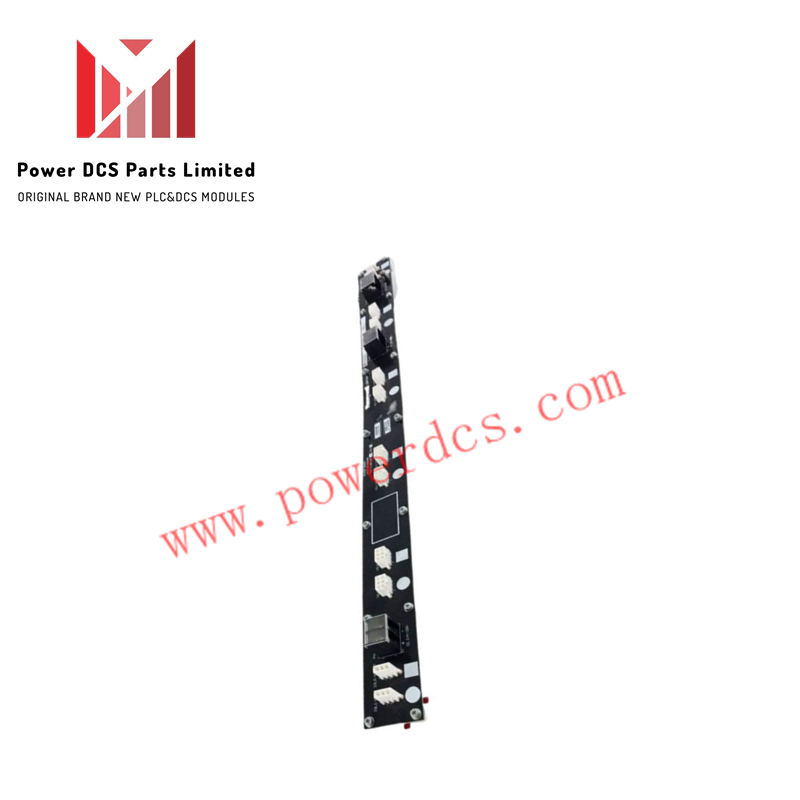

The 51307186-275 Rev. E is a logic interface header board manufactured by Honeywell for process automation control systems. It handles internal signal routing and logic integration across Honeywell automation architectures, featuring hazardous location certifications for deployment in classified industrial environments.
Board Design and Hazardous Location Ratings
The module incorporates 51454468 logic integration functionality and operates in conjunction with associated board PWB 51307185-100 Rev. B. Constructed with a 94V-0 flame-rated circuit board, it operates across an ambient temperature range of 0 to 60 deg C and weighs 320 g.
For hazardous areas, the board holds Class I, Div. 2 (Groups A-D, T4) and Class I, Zone 2 (AEx/Ex nA IIC T4 Gc) ratings, certified under IECEx FMG 15.0038X and FM 15ATEX0065X standards.
| Parameter | Specification |
|---|---|
| Model | 51307186-275 |
| Revision | Rev. E |
| Brand | Honeywell |
| Product Type | Header Boards |
| Logic Integration | 51454468 logic |
| Associated Board | PWB 51307185-100 Rev. B |
| Flame Rating | 94V-0 |
| Temperature Range | 0 to 60 deg C |
| Weight | 320 g |
| Country of Origin | China |
| Hazardous Location Ratings | Class I, Div. 2, Groups A-D, T4; Class I, Zone 2, AEx/Ex nA IIC T4 Gc |
| Certifications | IECEx FMG 15.0038X, FM 15ATEX0065X |
Frequently Asked Questions
Q: What hazardous location certifications does the Honeywell 51307186-275 Rev. E hold?
A: It is certified for Class I, Div. 2 (Groups A-D, T4) and Class I, Zone 2 (AEx/Ex nA IIC T4 Gc) under IECEx FMG 15.0038X and FM 15ATEX0065X.
Q: Which associated circuit board is paired with the 51307186-275 header board?
A: It is designed for operation alongside the PWB 51307185-100 Rev. B assembly.
