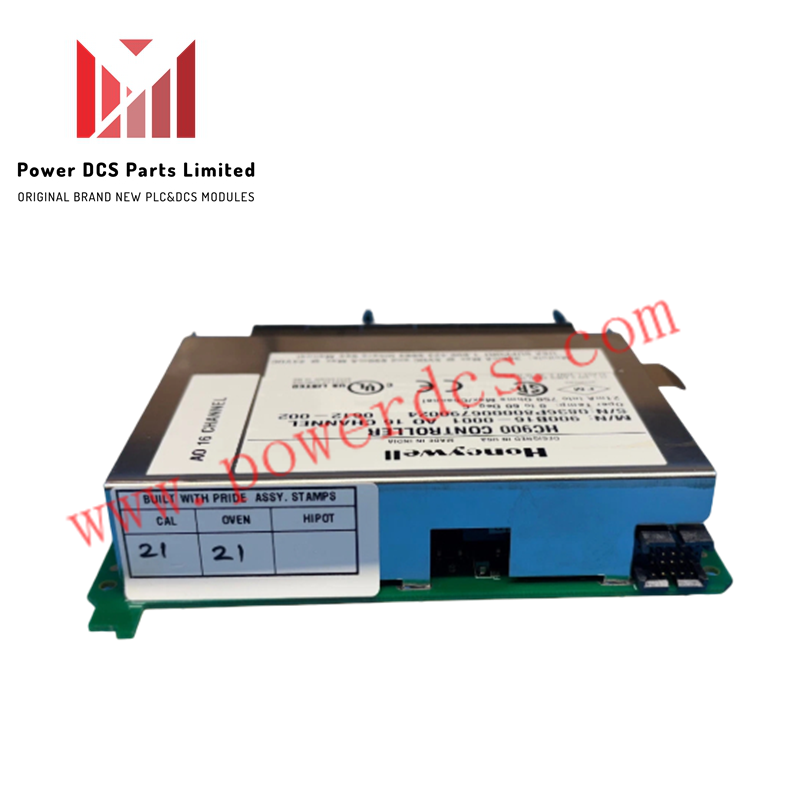

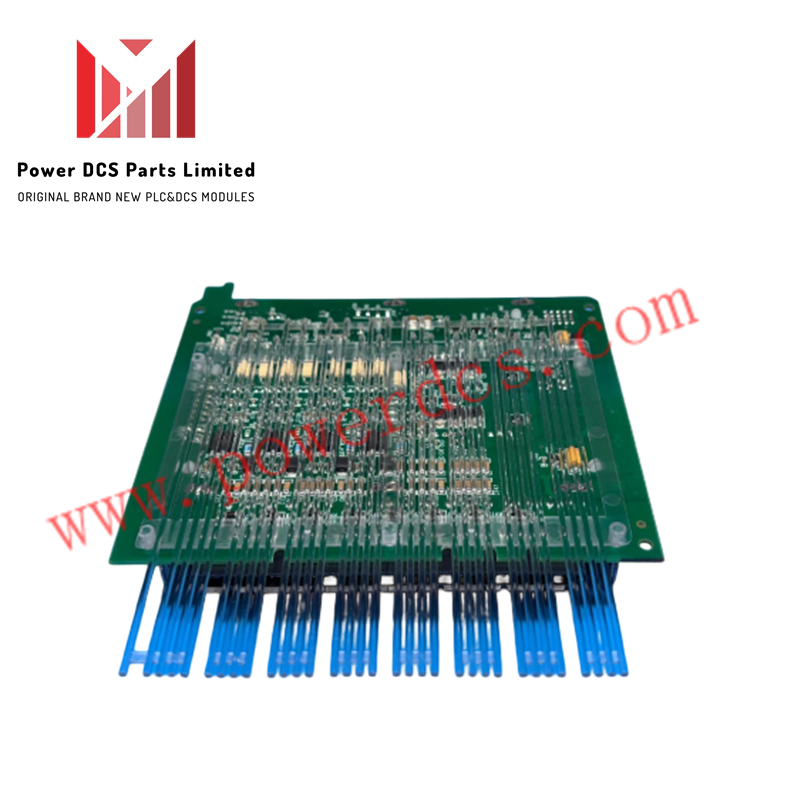

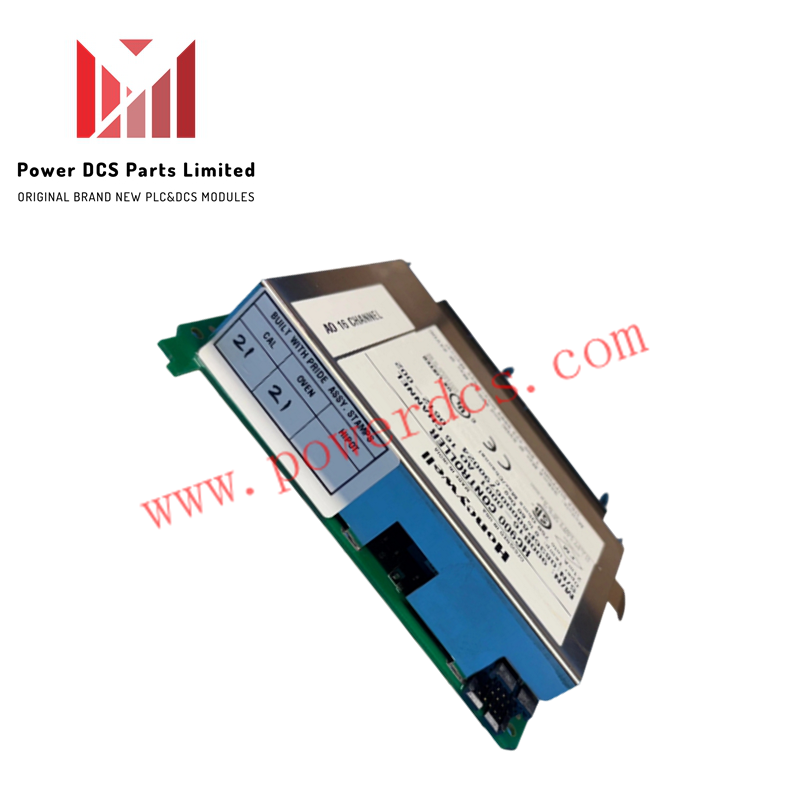

Honeywell 900B08-0101 Analog Output Module

Configured for multi-channel analog output signal conditioning and process loop control within ControlEdge HC900 hybrid controller architectures, the Honeywell 900B08-0101 (900B08-0101 Analog Output Module) provides direct physical/electrical execution of 0-20 mA and 4-20 mA current loop commands.

Hardware Specifications

Channel-to-Channel Isolation and 4-20 mA HART Loop Protocol

The module incorporates robust channel-to-logic and group isolation barriers designed to decouple field load loops from internal system backplane logic. Galvanic isolation prevents common-mode voltage differentials and electrical transients from corrupting output DAC reference levels. Precision output conditioning stages preserve superimposed 4-20 mA HART protocol communication signals, ensuring seamless bidirectional data exchange between control processors and intelligent final control elements such as valves and actuators.

Frequently Asked Questions

Q: What output current ranges are selectable on the 900B08-0101 module channels?

A: Each of the 8 output channels can be configured independently for either 0-20 mA or 4-20 mA current loop output ranges.

Q: Does the module support online hot-swapping within the HC900 controller rack?

A: Rack power must be de-energized before removing or inserting output modules to prevent backplane bus communication errors and potential hardware damage.

Field Installation Guidelines

1. Verify that incoming cabinet HC900 rack power is isolated and locked out prior to handling or installing the module.
2. Align module card edges with the designated I/O slot guide rails on the HC900 controller chassis.
3. Push the module firmly inward until rear backplane connectors mate completely with the header pins.
4. Terminate field actuator signal wiring to the corresponding terminal blocks, ensuring correct polarity matching across all active channels.
