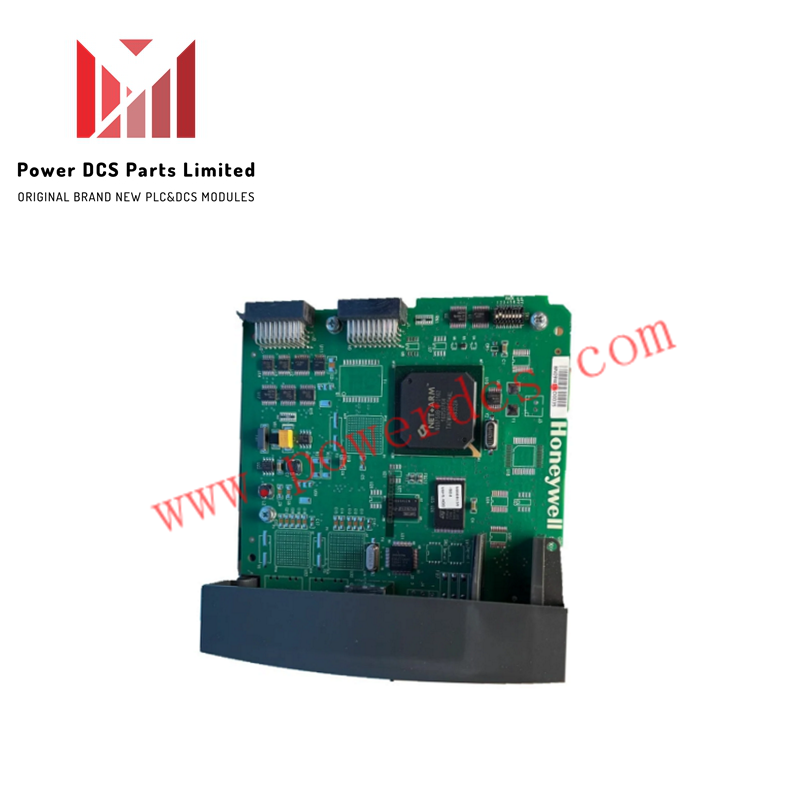

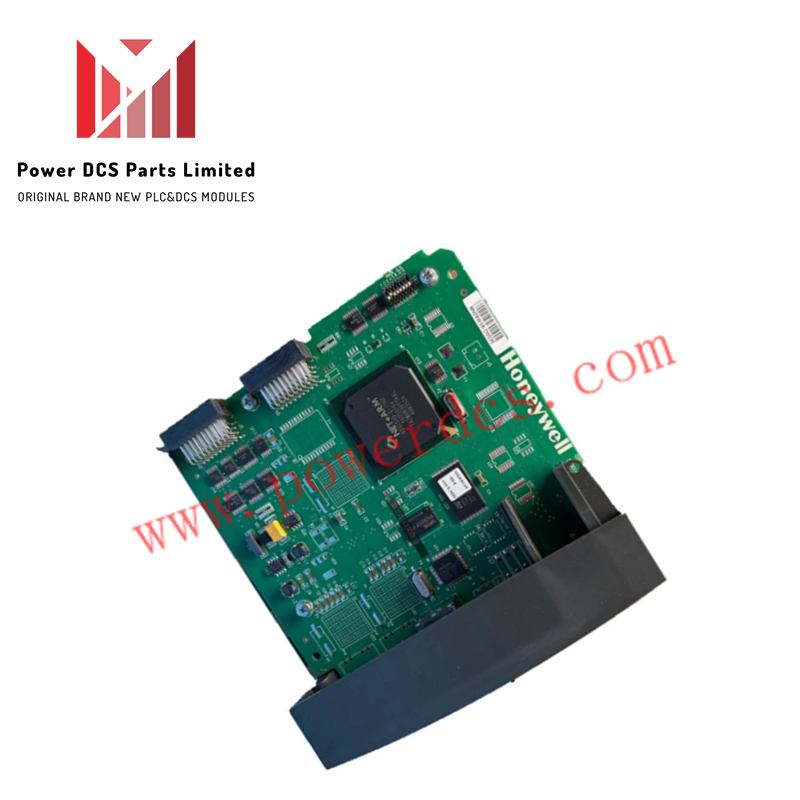

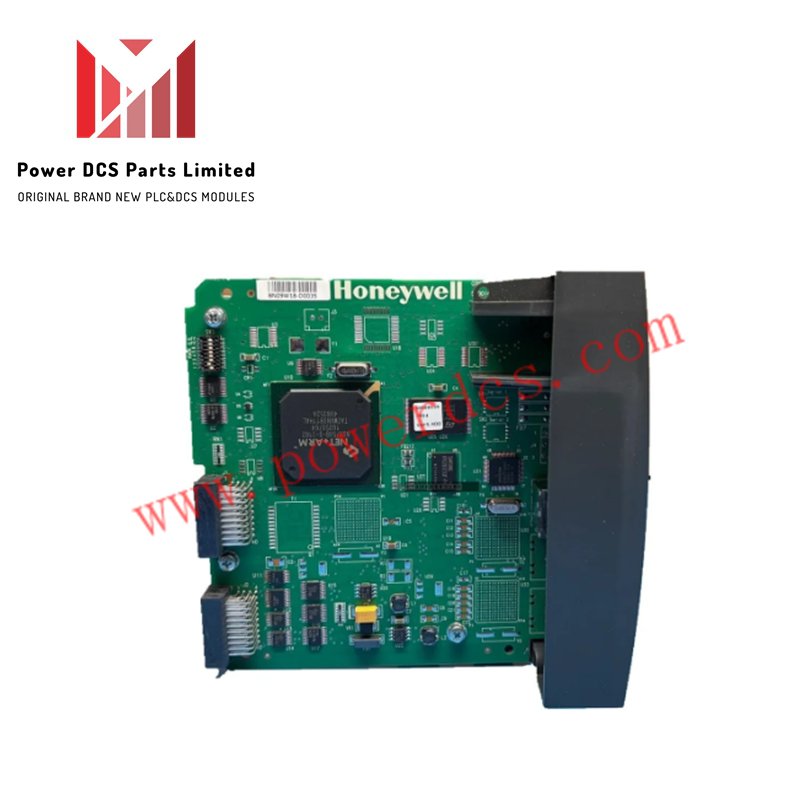

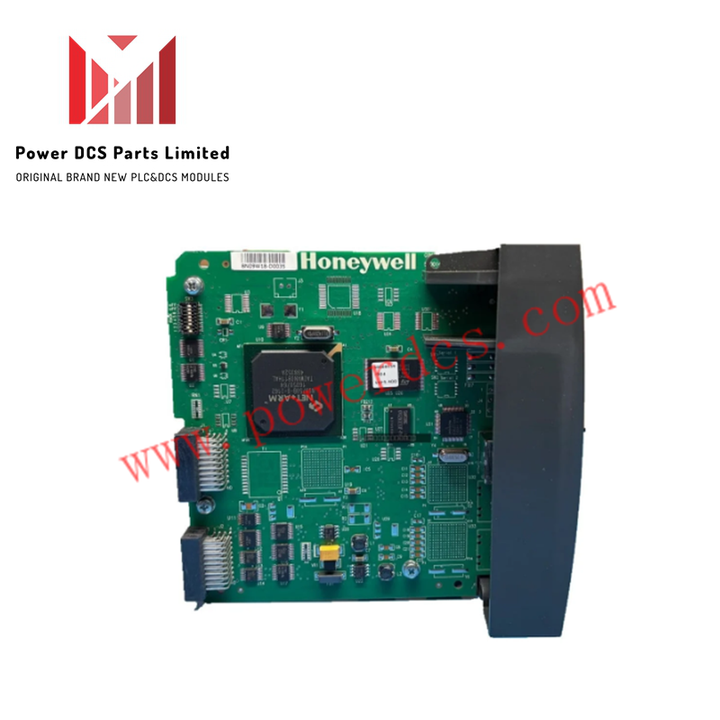

Honeywell 900C53-0124-00 I/O Scanner Module

Specifications

  • Manufacturer: Honeywell

  • Product No.: 900C53-0124-00

  • Condition: 10 العناصر الموجودة في المخزون

  • Product Type: I/O Scanner Modules

  • Payment:T/T, Western Union

  • Weight: 300g

  • Shipping port: Xiamen

  • Warranty: 12 months

تفاصيل المنتج

وصف

Configured for deterministic process data scanning and remote I/O communication in Honeywell control system racks, the Honeywell 900C53-0124-00 (900C53 I/O Scanner Module) provides direct physical/electrical execution.

Hardware Specifications

Parameter Specification
Model 900C53-0124-00
Brand Honeywell
Origin USA
Product Type I/O Scanner Module
System Function Distributed I/O communication and cyclic scanning
Operating Temp 0 to 60 deg C
Storage Temp -40 to 85 deg C
Relative Humidity 5% to 95% non-condensing
Mounting Rack mount backplane slot
Power Consumption Backplane powered (dependent on I/O load)

Process Control & Network Integration

The scanner module coordinates deterministic backplane communication to execute synchronized cyclic data transfers between distributed remote expansion racks and central process controllers. Built-in channel-to-channel isolation and differential signal processing preserve process variable data integrity across 4-20 mA HART loop protocol connections and remote digital I/O nodes. Advanced diagnostic routines continuously verify backplane frame integrity to mitigate data transmission latency and prevent corrupted field measurements from reaching controller execution memory.

Frequently Asked Questions

Q: What is the primary functional responsibility of the 900C53-0124-00 module?

A: The unit manages cyclic, deterministic I/O scan sequences across distributed expansion sub-racks, maintaining real-time data synchronization with the primary controller.

Q: How is operating power supplied to the scanner module?

A: The board draws its required operational current directly from the system rack backplane power bus.

Q: Can the 900C53-0124-00 be inserted or removed while the rack chassis is energized?

A: Main backplane power must be disconnected before module removal or insertion to prevent electrical arcing and memory bus signal disruption.

Field Installation Guidelines

  1. Disconnect all system backplane power supplies before inserting or extracting the scanner module from the rack chassis.
  2. Observe standard anti-static procedures and wear a grounded ESD wrist strap when handling the card.
  3. Align the circuit board edges with the designated rack chassis guide slots and insert the module until backplane connectors seat completely.
  4. Secure module retention screws to establish proper chassis grounding and prevent vibration-induced mechanical disconnection.
  5. Maintain physical separation between signal communication cabling and high-voltage AC conductors within wire channels to prevent electromagnetic interference.
