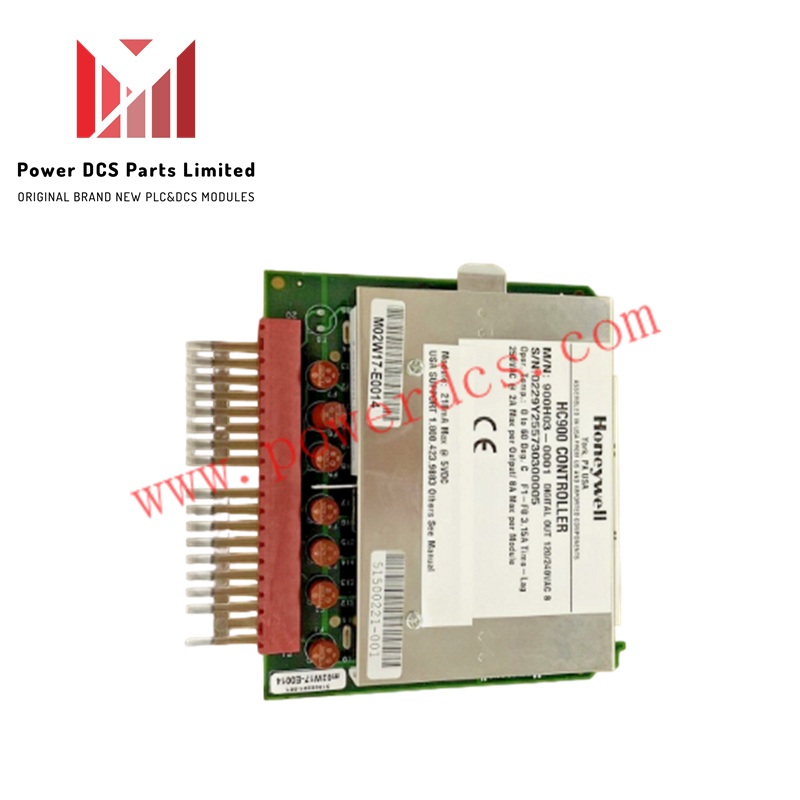

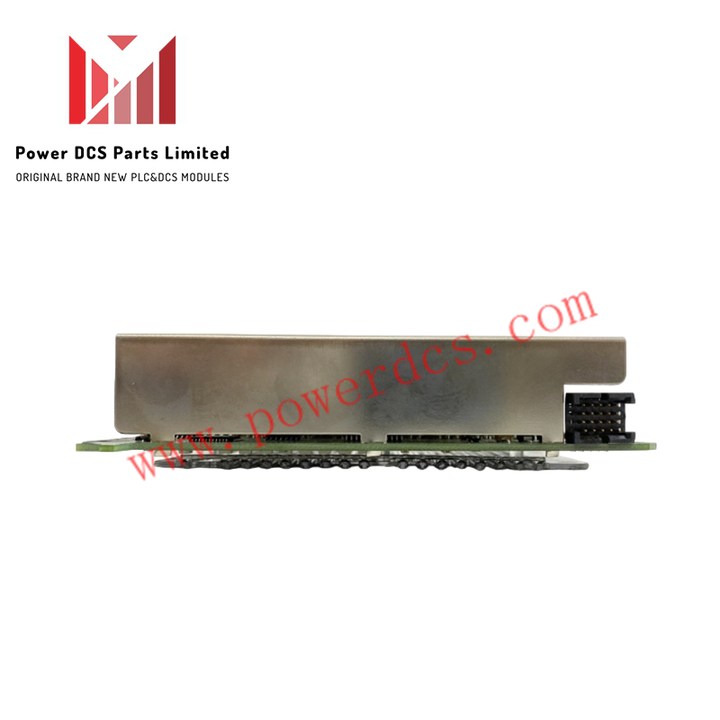

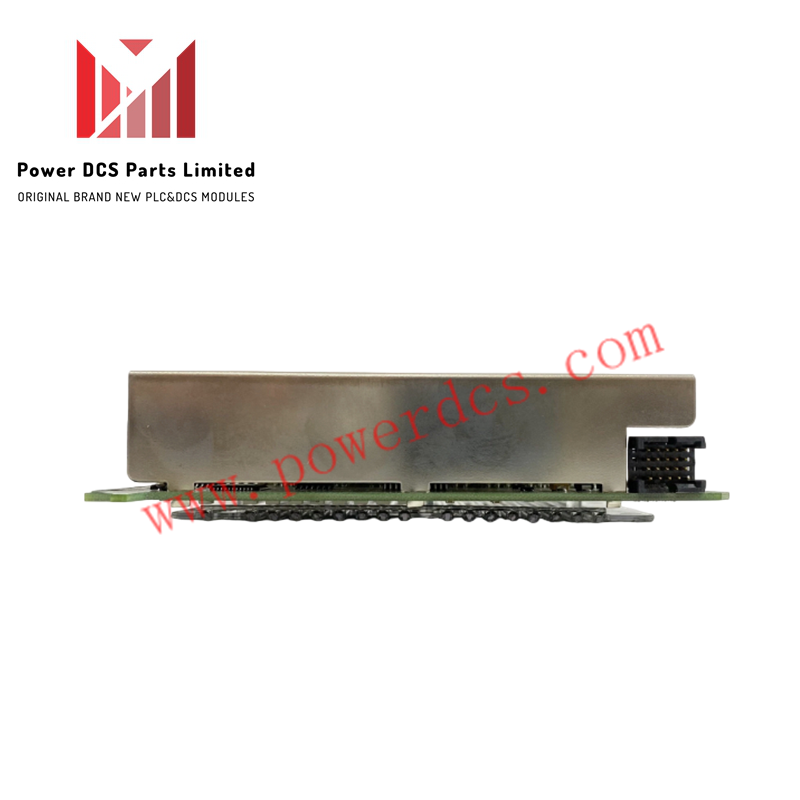

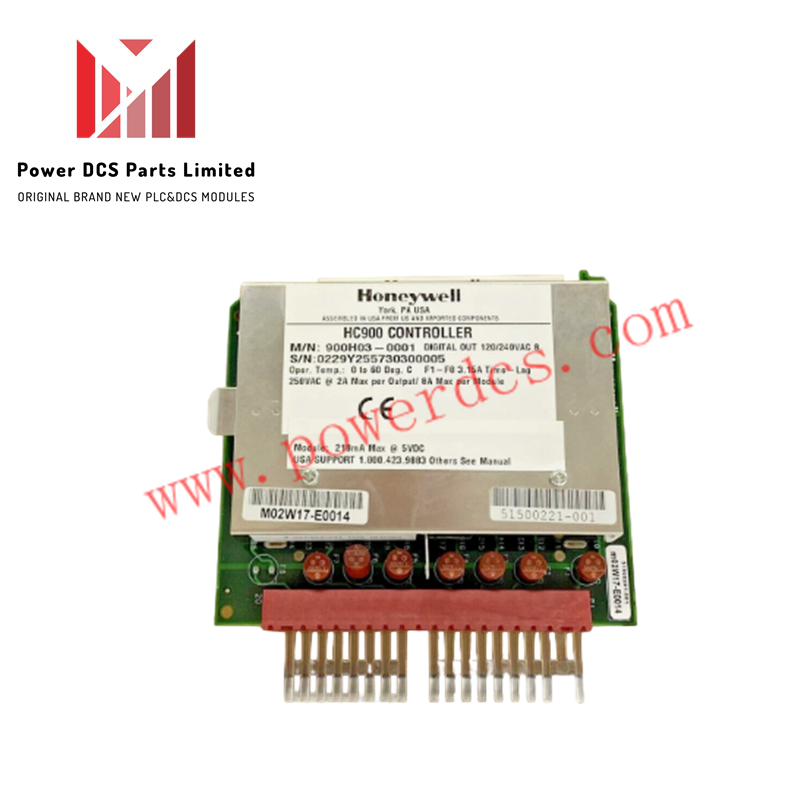

Honeywell 900H03-0001 HC900 Digital Output Module

The Honeywell 900H03-0001, also cataloged as the 900H03-0001 Digital Output Module, operates as a dedicated hardware component for high-voltage discrete switching execution within Honeywell HC900 Controller platforms.

Hardware Specifications

Channel-to-Channel Isolation and DCS Switching Behavior

The 900H03-0001 digital output module delivers solid-state AC switching across 8 independent channels operating at 120/240 VAC nominal supply voltages. Integrated optical galvanic isolation protects internal processing circuitry from high-voltage field transients and ground potential differences. Channel isolation prevents common-mode noise propagation to sensitive low-voltage signaling buses, preserving systemic communication integrity across 4-20 mA HART loop protocol lines and adjacent I/O modules on the HC900 backplane.

Frequently Asked Questions

Q: Can the 900H03-0001 digital output module be inserted or removed while backplane power is active?

A: Module removal or insertion requires removing power from the rack and field circuits to prevent electrical arcing and backplane logic corruption.

Q: What load type is supported by the 8 output channels?

A: The 8 output channels are designed to switch AC discrete field loads operating within the 120/240 VAC range.

Q: Does each output channel require separate external fuse protection?

A: External fast-acting line fuses are recommended per field output channel to protect internal switching elements from direct load short circuits.

Field Installation Guidelines

1. Remove controller backplane power and field voltage sources before inserting the module into the designated rack slot.
2. Align the module card edges with the enclosure slot guides and press firmly until the retaining latches click securely.
3. Route 120/240 VAC output wiring separately from low-voltage analog signal lines inside wire ducts to prevent inductive coupling.
4. Verify that field wiring connections to the mating terminal assembly are secure prior to applying excitation voltage.
5. Ground all cable shielding and rack enclosures to the primary panel earth bus bar according to standard installation practice.
