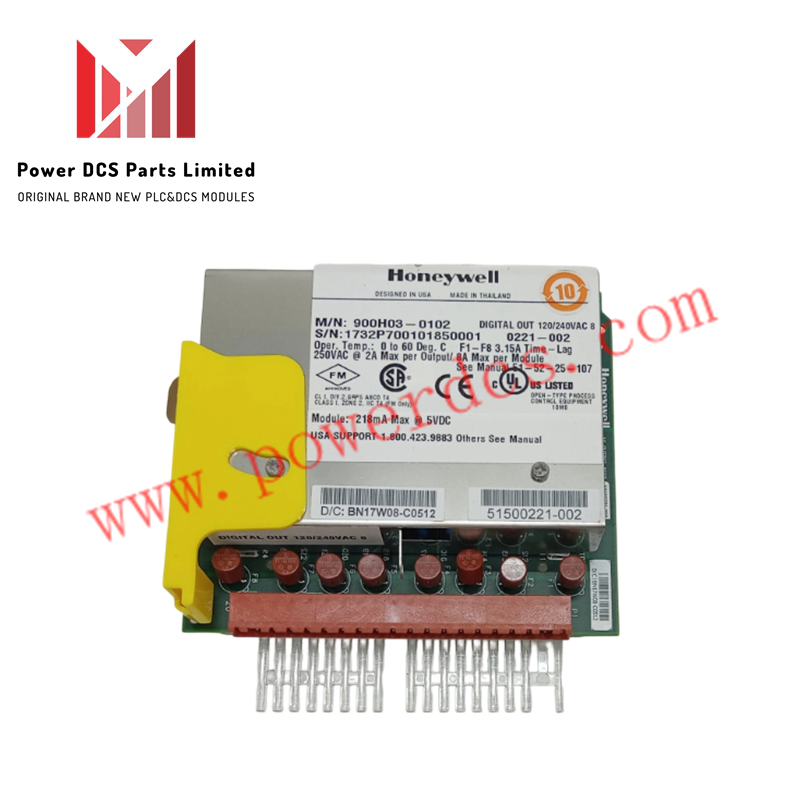

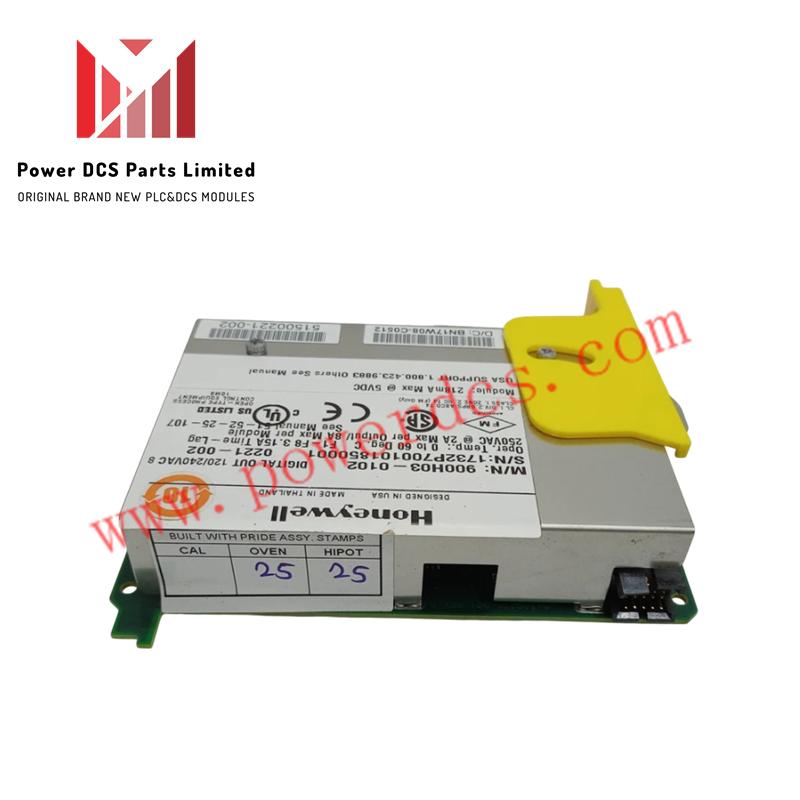

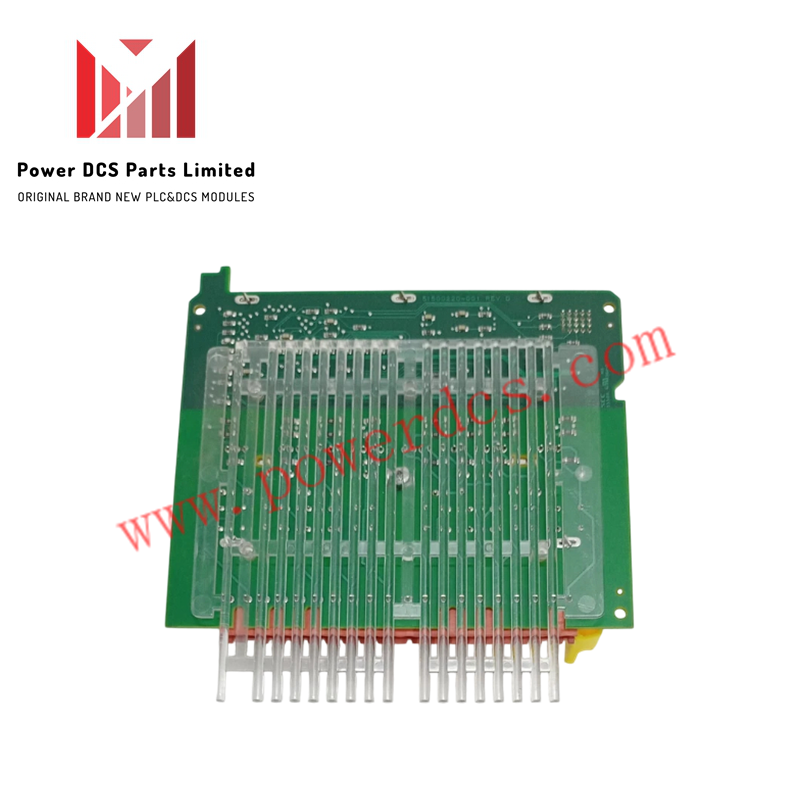

Honeywell 900H03-0102 Digital Output Module

Configured for discrete output signal execution and channel switching in modular control nodes, the Honeywell 900H03-0102, also cataloged as the 900H03-0102 Digital Output Module, provides direct physical/electrical execution.

Hardware Specifications

Channel-To-Channel Isolation And Loop Protocol Integrity

The module incorporates dedicated channel-to-channel isolation and optical barrier separation to suppress transient voltage spikes and protect internal system logic from field-side actuator disturbances. It interfaces with standard 24 VDC discrete control loops while maintaining channel isolation integrity. Cold junction compensation (CJC) references and robust circuit design safeguard switching signals against inductive kickback and electromagnetic interference across multi-channel terminal blocks.

Frequently Asked Questions

Q: Can the 900H03-0102 module be hot-swapped while the rack power is active?

A: No. Power must be isolated from the mounting chassis prior to inserting or removing the digital output module to prevent backplane bus logic latch-up or terminal pin damage.

Q: What specific protection is integrated into the output channels?

A: Each output channel features internal switching protection to prevent overcurrent feedback from connected industrial relays and solenoid valves.

Field Installation Guidelines

• Ensure primary cabinet power and field power supplies are locked out and tagged out prior to installation or wiring.
• Mount the module securely onto the designated modular rack slot, ensuring proper physical alignment with backplane connectors.
• Terminate field wiring firmly to the module terminals, maintaining appropriate torque specifications to prevent loose connections under vibration.
• Verify output channel functionality and loop continuity via controller diagnostic indicators before returning the system to operational service.
