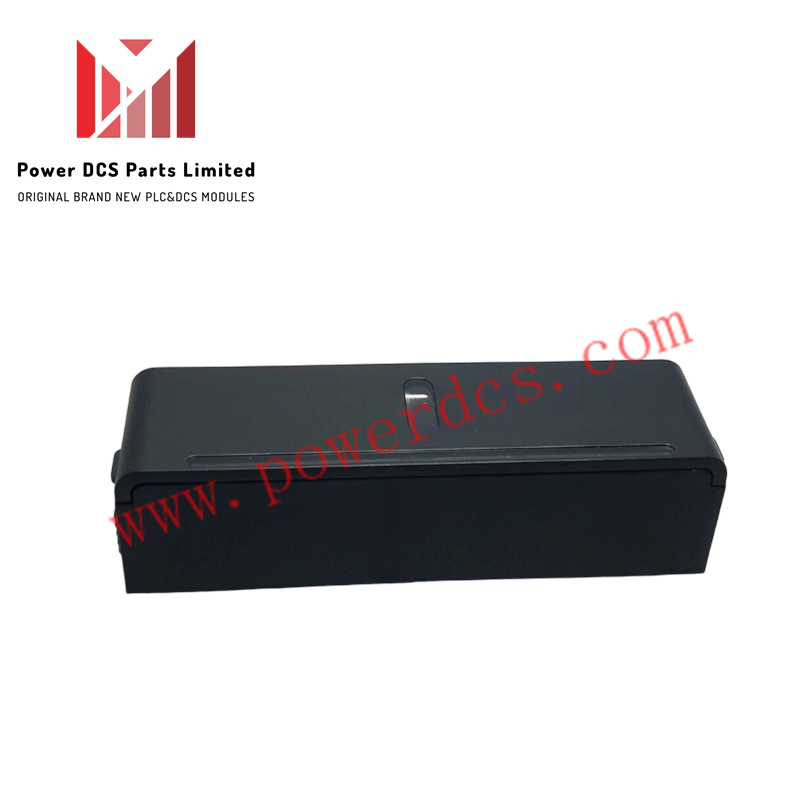

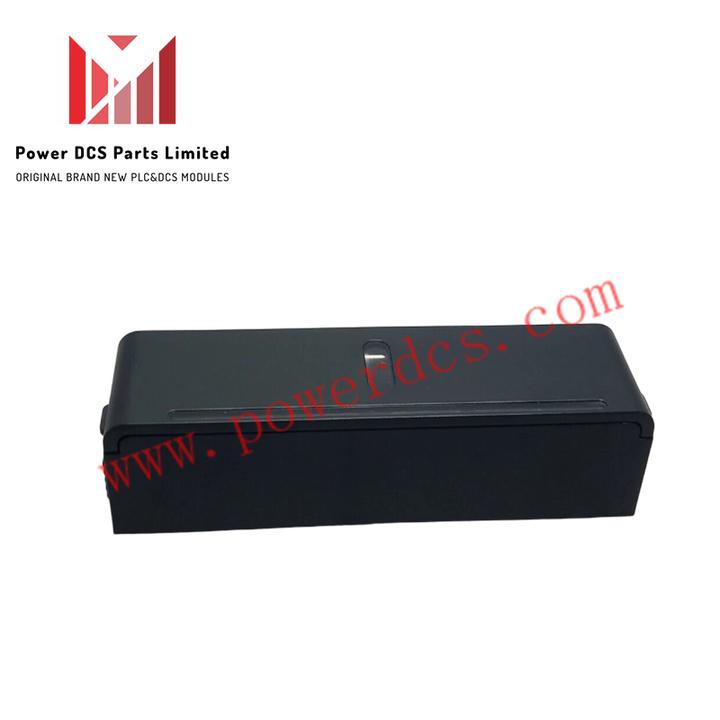

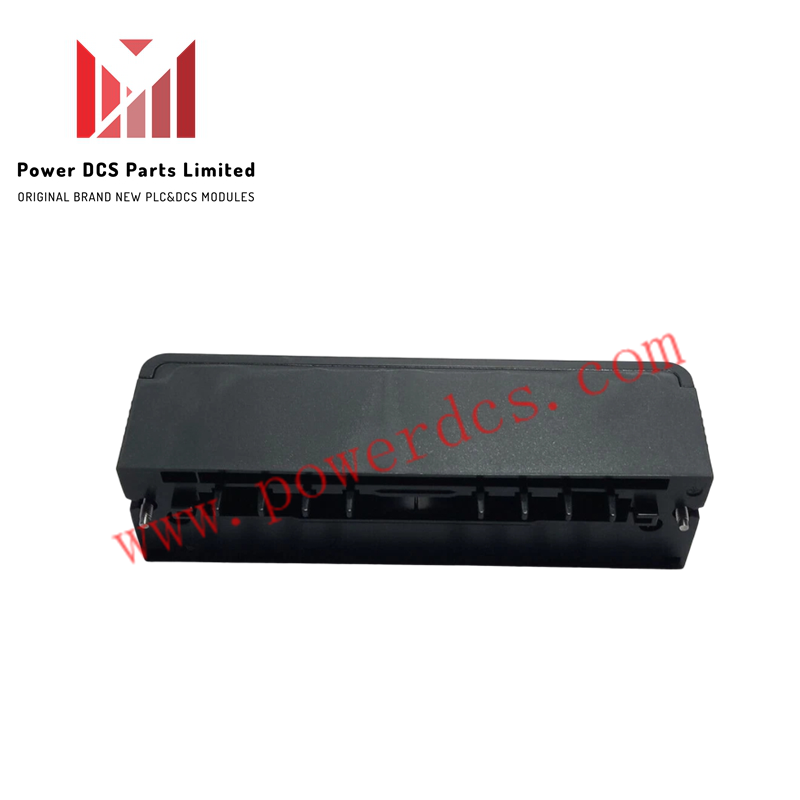

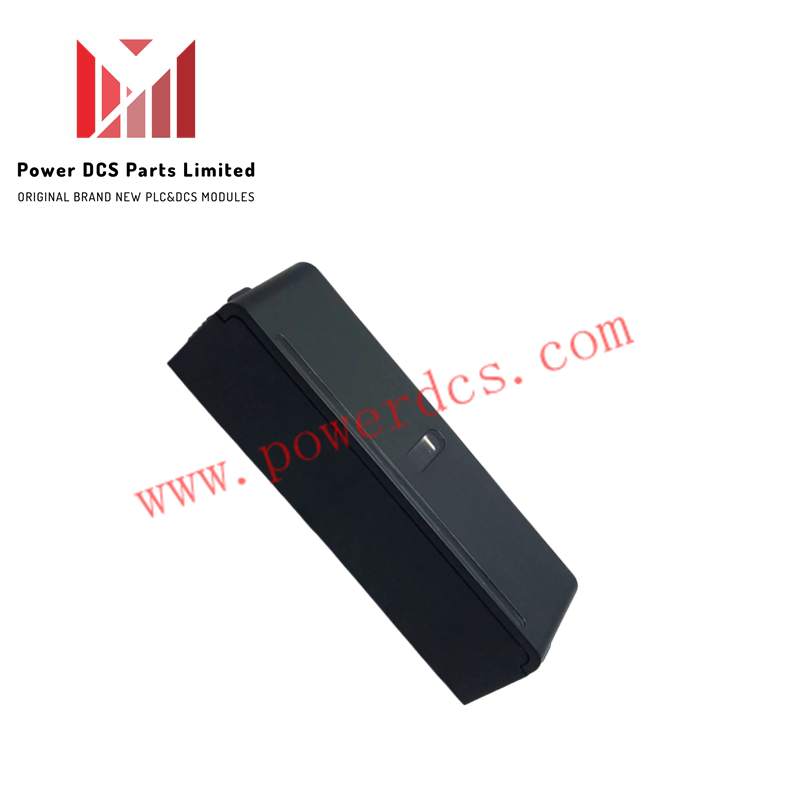

Honeywell 900TNF-0200 Filler Block Terminal Cover

The Honeywell 900TNF-0200, also cataloged as the 900TNF-0200 Filler Block Terminal Cover, operates as a dedicated hardware component for empty slot protection and terminal barrier isolation within ControlEdge HC900 rack assemblies.

Hardware Specifications

Channel-to-Channel Isolation and 4-20 mA HART Loop Protocol

The filler block terminal cover secures unused rack chassis positions, preventing physical ingress of dust, moisture, and conductive debris into backplane connector pins. By enclosing open terminal cavities, the component maintains structural environmental integrity across the rack assembly. This physical barrier supports broader system noise suppression, protecting adjacent active modules handling 4-20 mA HART loop protocol signals and analog/digital process loops from external electromagnetic interference and cross-talk.

Frequently Asked Questions

Q: Does the 900TNF-0200 filler block require any electrical wiring or backplane connections?

A: No, the unit is a passive mechanical cover designed exclusively to shield unoccupied module slots and terminal wiring spaces on HC900 rack chassis.

Q: Can the filler block be installed while the controller rack is fully energized?

A: Yes, because the component contains no active circuitry or electrical pins, it can be attached or removed mechanically without de-energizing the rack power supply.

Field Installation Guidelines

1. Inspect the open chassis slot or terminal area to ensure no foreign particles or damaged pins are present before mounting.
2. Align the terminal cover or filler block edges with the physical guide rails of the unoccupied HC900 rack slot.
3. Push the cover firmly inward until it snaps or seats flush against the chassis front plane.
4. Secure any integrated fastening screws or locking tabs to prevent displacement under ongoing plant vibration.
