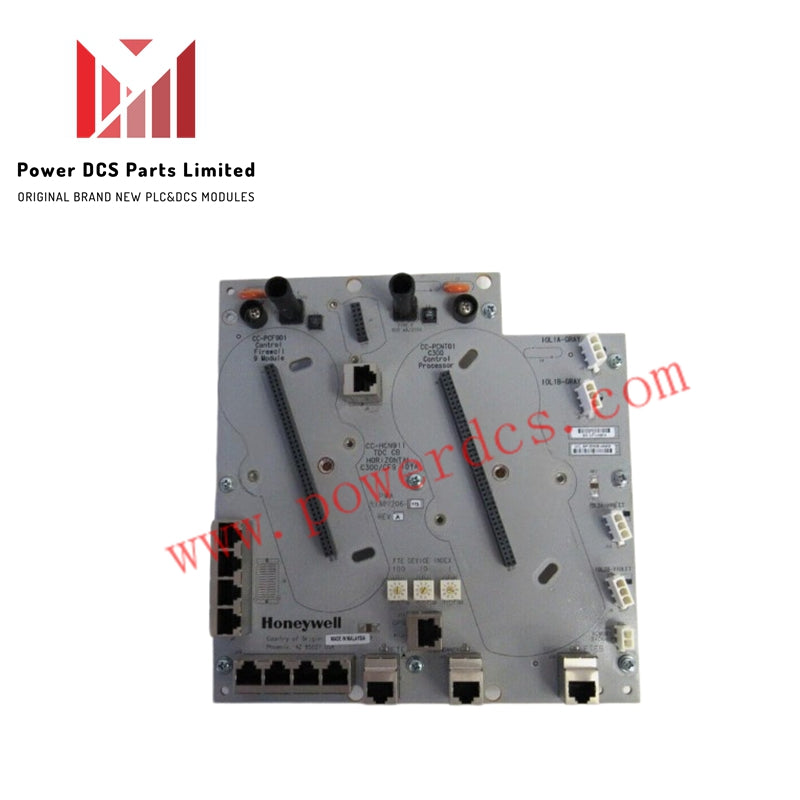

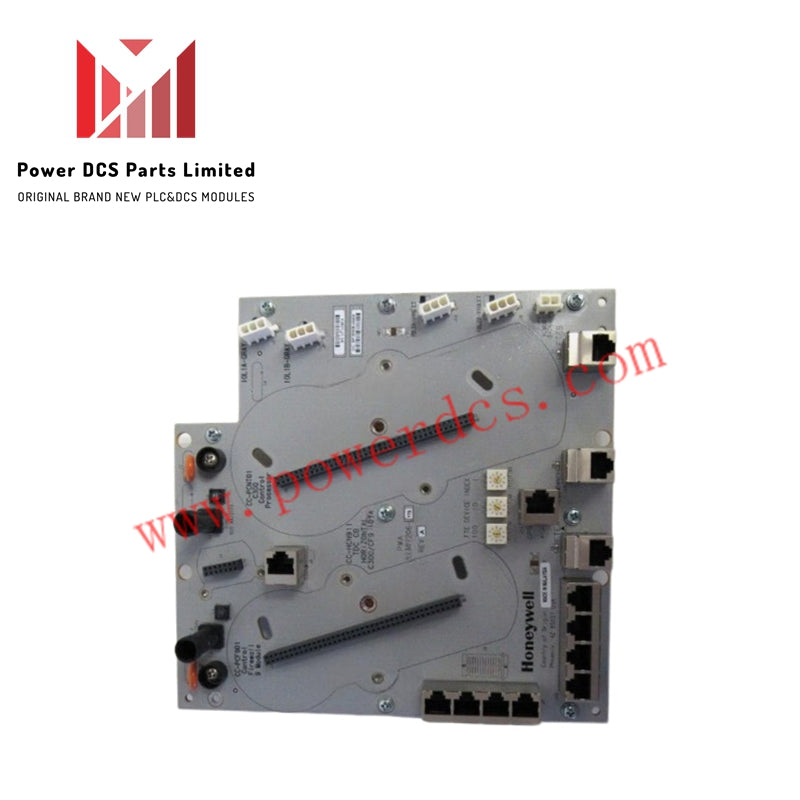

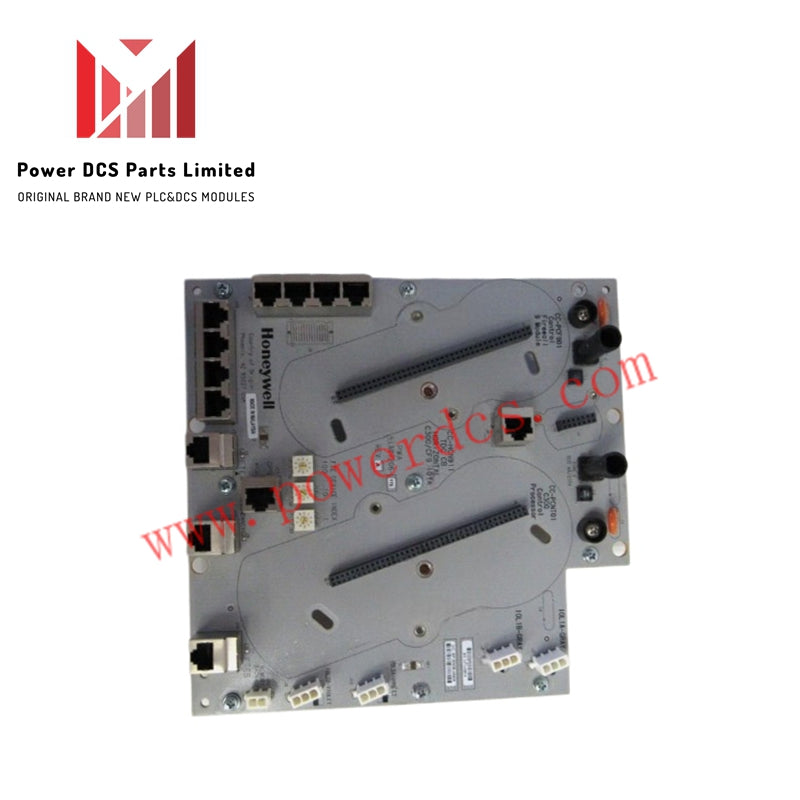

Honeywell CC-HCN911 51307206-175 Experion PKS C300 Baseplate

The Honeywell CC-HCN911 51307206-175, also cataloged as the CC-HCN911 (part number 51307206-175) C300 Baseplate, operates as a dedicated hardware component for physical mounting, power distribution, and backplane bus routing within Honeywell Experion PKS C300 controller systems.

Hardware Specifications

Channel-to-Channel Isolation and Galvanic Signal Decoupling

The Honeywell CC-HCN911 51307206-175 baseplate acts as the structural foundation for hosting C300 controllers and associated network interface cards. It incorporates integrated backplane traces that facilitate galvanic isolation between processing units and external communication channels. When interfacing with remote field channels handling 4-20 mA HART loop protocol signals or FOUNDATION Fieldbus links, the underlying baseplate bus maintains low-impedance grounding paths and channel-to-channel crosstalk suppression to preserve data integrity across DCS nodes.

Frequently Asked Questions

Q: Does replacing the CC-HCN911 baseplate require powering down the C300 controller node?

A: Yes, because the baseplate provides the underlying physical backplane connections, replacing the CC-HCN911 requires de-energizing the power supply rails and removing mounted modules prior to baseplate uninstallation.

Q: How does the CC-HCN911 support system redundancy within the Experion PKS network?

A: The dual-slot physical layout of the CC-HCN911 baseplate provides dedicated backplane interconnection traces that support primary and secondary C300 controller modules operating in a redundant lockstep configuration.

Field Installation Guidelines

1. Ensure all system power feeds to the mounting enclosure are completely de-energized before installing or replacing the baseplate assembly.
2. Secure the CC-HCN911 baseplate onto the cabinet panel or DIN rail, ensuring all mechanical mounting screws are torqued down to provide adequate chassis frame grounding.
3. Verify that adjacent baseplate extension cables are locked firmly into their respective backplane connectors to maintain uninterrupted bus communications.
4. Keep low-voltage communication and I/O bus cables routed in dedicated raceways separated from AC power lines by a minimum distance of 200 mm.
5. Connect the baseplate ground lug directly to the main cabinet protective earth (PE) bus using a short, low-impedance grounding strap.
