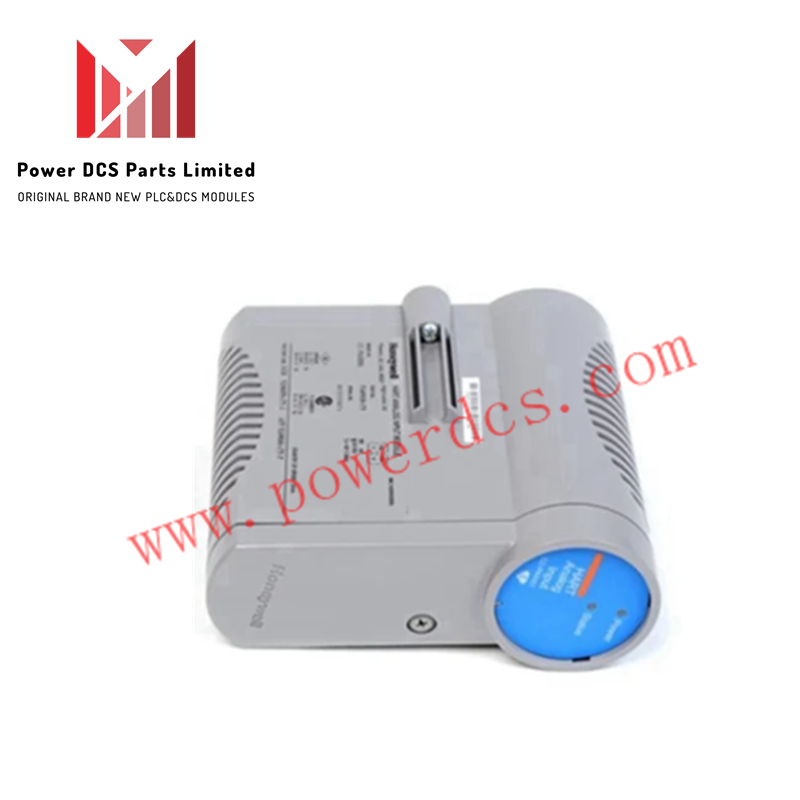

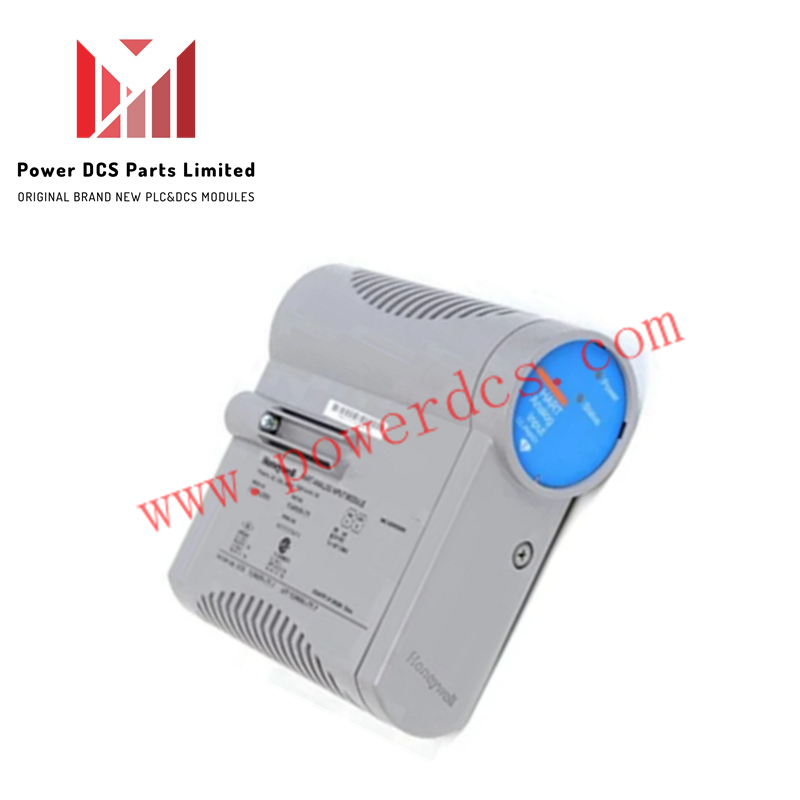

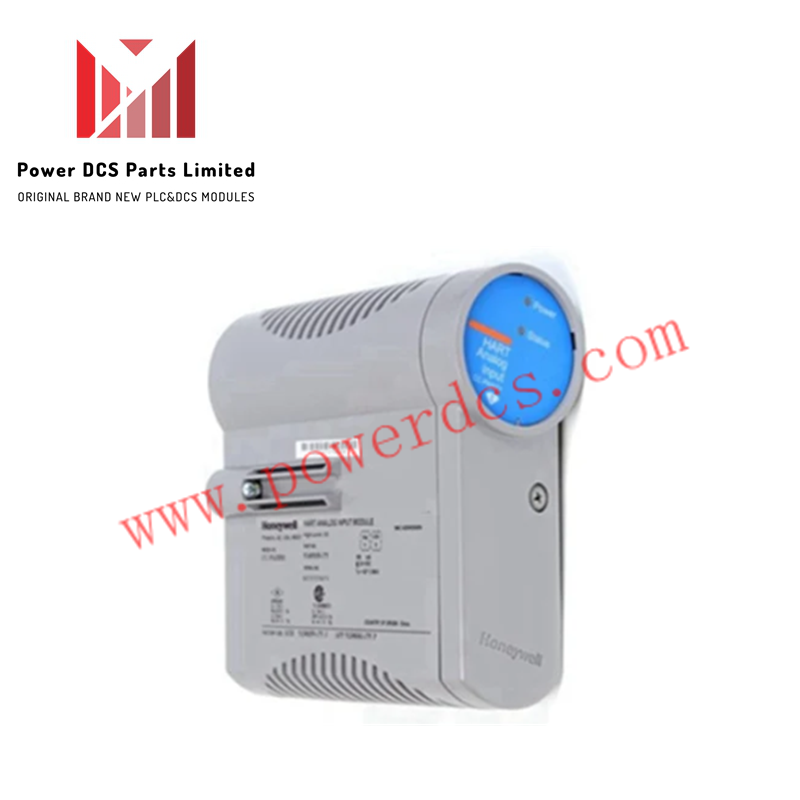

Honeywell CC-PAON01 51410070-175 Analog Output Module

The Honeywell CC-PAON01 51410070-175 serves as the primary CC-PAON01 Analog Output Module utilized to execute digital-to-analog signal conversion and analog loop driving across Honeywell Experion PKS platforms.

Hardware Specifications

4-20 mA HART Loop Protocol & Isolated Current Driving

The CC-PAON01 module processes digital control commands from the redundant controller backplane and executes digital-to-analog signal synthesis to feed field actuators. Operating with 4-20 mA current and 0-10 V voltage ranges, the onboard circuitry integrates 4-20 mA HART loop protocol pass-through to support simultaneous bidirectional field device communication. Integrated channel-to-channel isolation safeguards central processing units against cross-channel ground loops, external surges, and line noise in demanding process automation networks.

Frequently Asked Questions

Q: Does the CC-PAON01 module permit hot-swapping while the controller carrier is powered?

A: Yes, the module supports online insertion and removal under system backplane power without causing signal disturbance to adjacent active I/O cards.

Q: How does the CC-PAON01 process HART digital communication signals?

A: The onboard channel electronics support 4-20 mA HART loop protocol signals by superimposing high-frequency digital keying onto the 4-20 mA analog drive current.

Q: What power source is required to drive the output loops on the CC-PAON01?

A: The module relies on a nominal 24 VDC supply provided via the IOTA or carrier backplane to energize internal digital-to-analog conversion and output drivers.

Field Installation Guidelines

1. Align the module base with the I/O termination assembly guide rails and press firmly until the retention latches engage completely.
2. Verify that all field loop cables are constructed using twisted, shielded pairs to prevent electromagnetic interference from degrading the 4-20 mA signal.
3. Terminate signal cable drain wires to the system cabinet ground bar at a single point to avoid creating ground loop paths across field devices.
4. Confirm loop power supply polarity and maximum resistive load constraints prior to commissioning output channels to field positioners.
