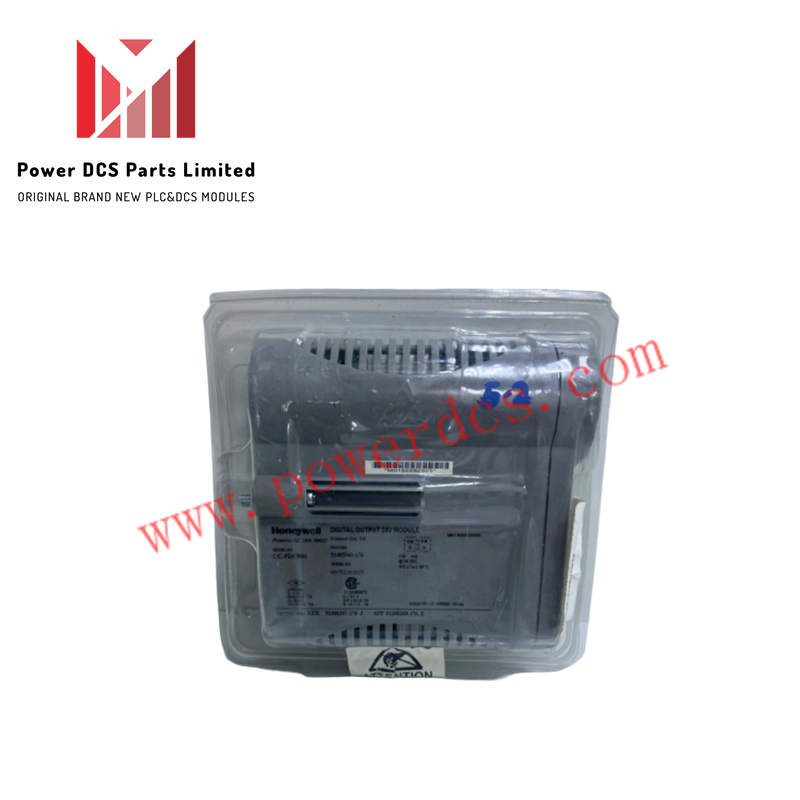

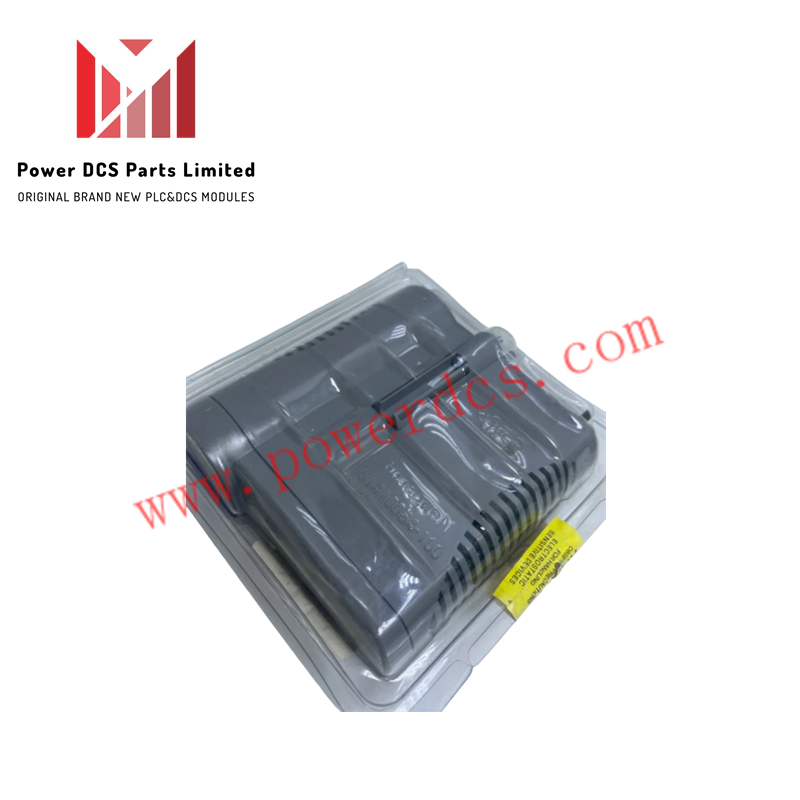

Honeywell CC-PDOB01 51405043-176 Digital Output 24V Module

The CC-PDOB01 51405043-176 is a 24 VDC digital output module developed by Honeywell for industrial control applications. Featuring 32 output channels with a bussed output configuration, it handles signal switching tasks with a maximum load voltage capacity of 30 VDC.

Channel Configuration and Load Ratings

This module provides 32 digital output channels arranged in a bussed output architecture. Each channel operates on a nominal 24 VDC supply and is designed to switch field loads operating at up to 30 VDC maximum.

Physical Characteristics

Designed for compact rack integration, the module measures 2 cm x 18.6 cm x 12.9 cm and weighs 0.15 kg. Its light enclosure form factor supports standard mounting within Honeywell control chassis environments.

Specifications

The functional and physical parameters for this digital output module are listed below.

Frequently Asked Questions

Q: How many channels are available on the Honeywell CC-PDOB01 51405043-176 module?

A: It features 32 digital output channels arranged in a bussed configuration.

Q: What is the maximum load voltage supported by this digital output module?

A: The module supports a maximum load voltage of 30 VDC across its output channels.
