Honeywell CC-PUI03 Experion PKS Series-C Universal I/O Module

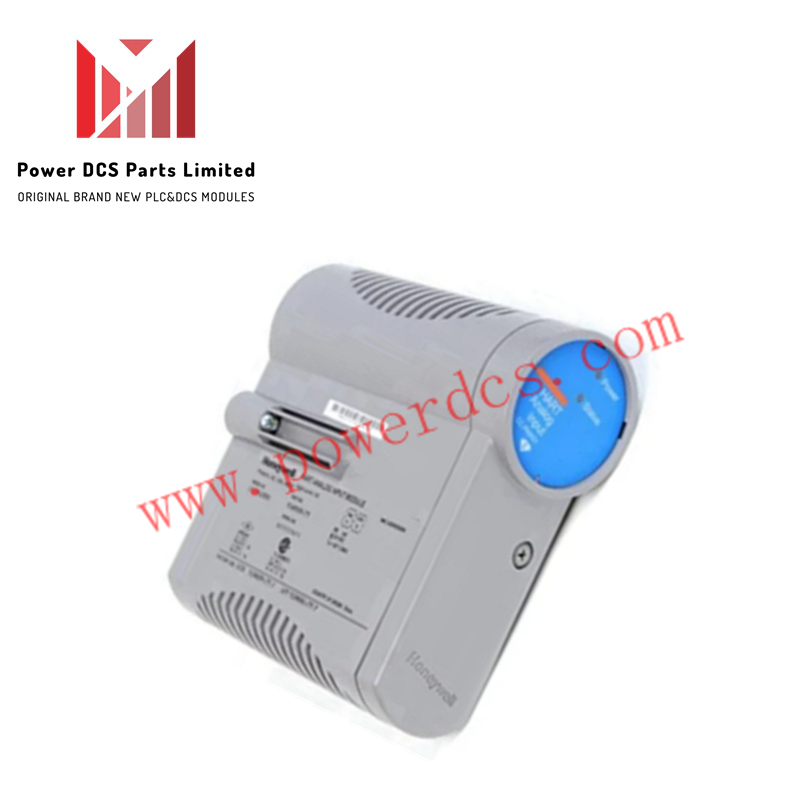

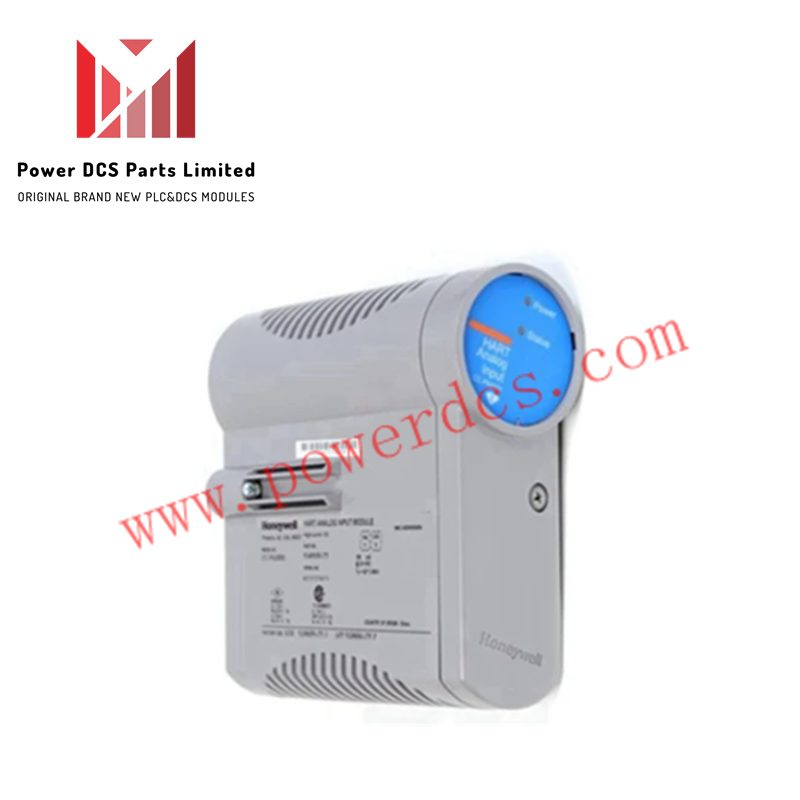

Configured for flexible analog and digital signal execution in Experion PKS Series-C control systems, the Honeywell CC-PUI03 (CC-PUI03 Universal Input/Output Module) provides direct physical/electrical execution. It handles 32 software-configurable I/O channels across process control node networks.

Hardware Specifications

Channel-to-Channel Isolation and 4-20 mA HART Loop Architecture

The Honeywell CC-PUI03 universal module features 32 independent channels configurable via software for analog input, analog output, digital input, or digital output operations. When handling process instrumentation, each analog channel supports the 4-20 mA HART loop protocol and 0-10 V voltage ranges. Electrical robustness is enforced by 1500 VAC channel-to-channel and channel-to-ground isolation barriers that eliminate ground loop offsets and safeguard backplane communication buses from field-side voltage transients.

Frequently Asked Questions

Q: Can channels on the CC-PUI03 be reconfigured dynamically without removing power from the IOTA base?

A: Channel software configuration can be reallocated through the Experion PKS system software without unseating the module from its Input Output Termination Assembly (IOTA) base, provided field wiring is aligned with the configured signal type.

Q: How is thermal dissipation managed when all 32 channels are configured for 4-20 mA current outputs?

A: The low-power architecture maintains typical power consumption at ~6 W. Heat dissipation is managed through natural convection cooling across the Series-C enclosure when operated within the -40 to +70 deg C ambient envelope.

Q: Does the CC-PUI03 support hot-swapping on a redundant Series-C IOTA?

A: Yes, the module supports plug-in removal and insertion under power on active Series-C IOTA bases without disrupting backplane communication or adjacent I/O operational states.

Field Installation Guidelines

1. Mount the Series-C IOTA base securely onto a standard DIN rail or enclosure wall prior to inserting the CC-PUI03 module.
2. Verify that incoming 24 VDC power supplies maintain regulation within +/-10% tolerances before energizing the IOTA terminal bus.
3. Seat the CC-PUI03 module onto the IOTA connector pins and tighten the retaining screws to ensure proper grounding contact and resistance against operational vibration.
4. Separate low-voltage analog signal wiring (4-20 mA / 0-10 V) from high-voltage AC conductors by a minimum physical distance of 200 mm to suppress electromagnetic noise coupling.
5. Ground signal cable shields at a single dedicated ground point on the cabinet bus bar to prevent current ground loops across isolated field channels.
