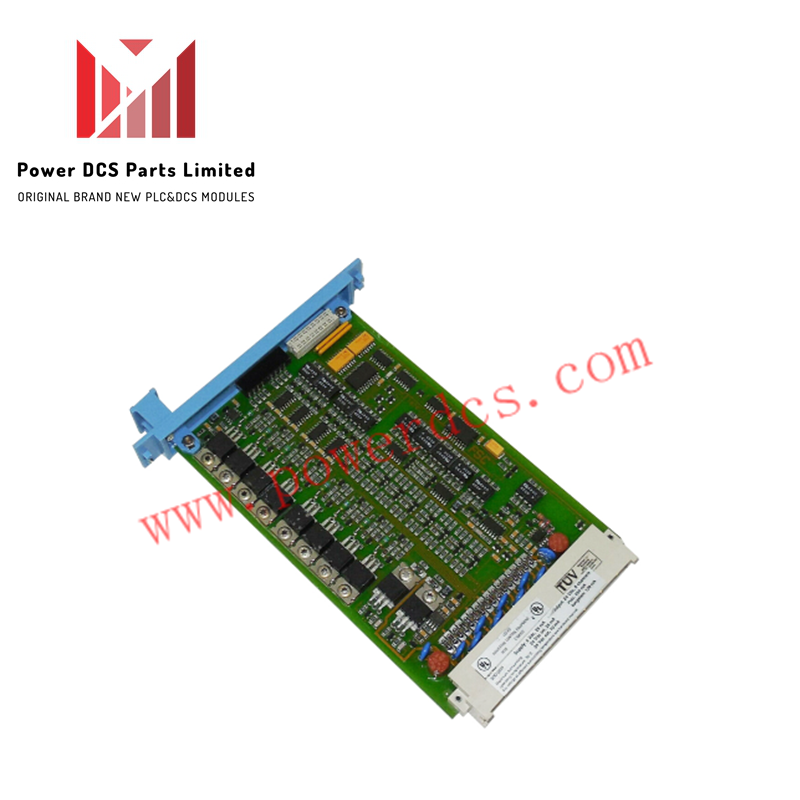

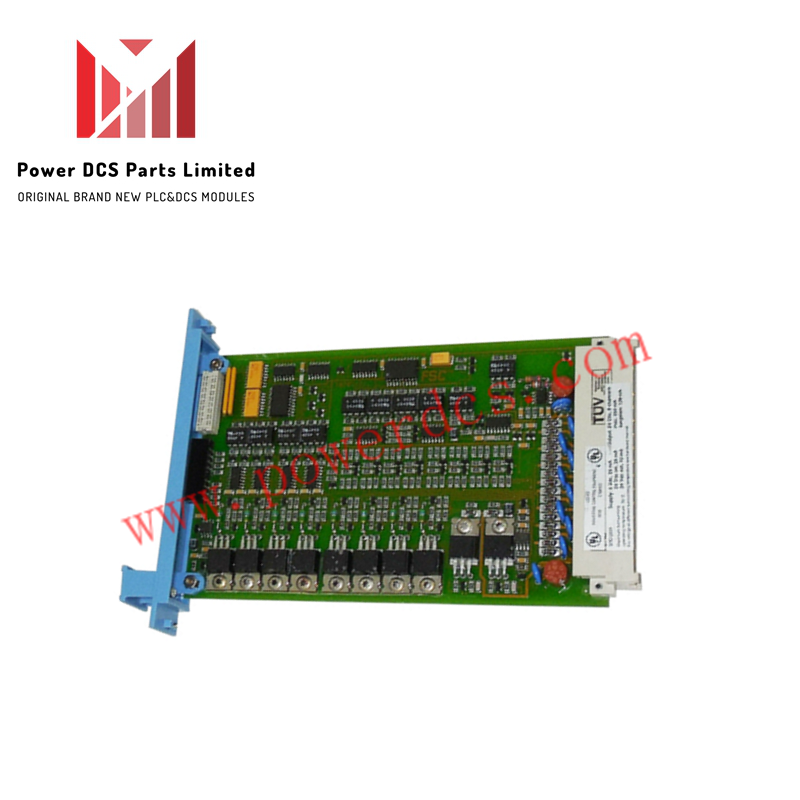

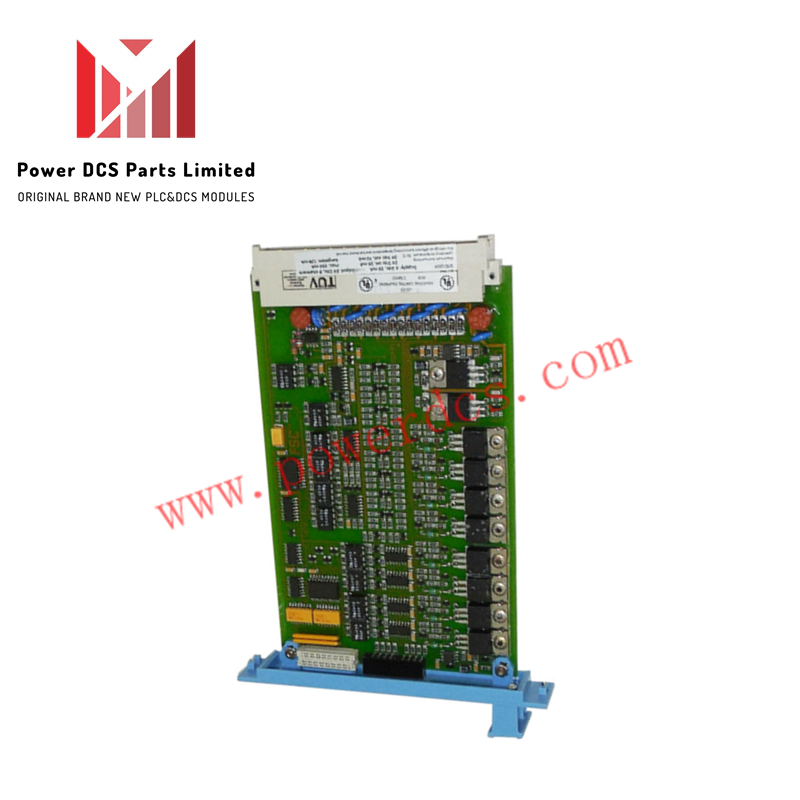

Honeywell FS-SDO-0824 Safe Digital Output Module
Specifications
Manufacturer: Honeywell
Product No.: FS-SDO-824
Condition： 10 العناصر الموجودة في المخزون
Product Type: Digital Output Modules
Payment:T/T, Western Union
Weight: 800g
Shipping port: Xiamen
Warranty: 12 months
تفاصيل المنتج
وصف
The Honeywell FS-SDO-0824, also cataloged as the FS-SDO-0824 Safe Digital Output Module, operates as a dedicated hardware component for short-circuit proof field load switching within Honeywell Safety Manager platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FS-SDO-0824 |
| Brand | Honeywell |
| Origin | USA |
| Weight | Approx. 0.80 kg (3.00 kg shipping weight) |
| Dimensions | Standard Safety Manager chassis slot size |
| Operating Temp | -10 deg C to +60 deg C |
| Power Consumption | 5 VDC at 25 mA (backplane), 24 VDC int at 25 mA, 24 VDC ext at 70 mA (no load) |
| Output Channels | 8 solid-state source channels |
| Maximum Output Current | 550 mA per channel |
| Off-State Leakage Current | < 0.1 mA |
| Voltage Drop | < 2.0 VDC at 500 mA load |
| Max Load Capacitance | 1 uF |
| Max Lamp Load | 120 mA (2.9 W) |
| Watchdog Input Current | 8 mA |
4-20 mA HART Loop Protocol and Channel-to-Channel Isolation
The module provides galvanic isolation barriers between backplane execution logic and external 24 VDC field switching circuits to maintain channel-to-channel isolation across all 8 output lines. This isolation architecture prevents transient surge spikes, field-side ground potential differences, and high-frequency noise from coupling into adjacent analog signal lines or backplane communication buses carrying 4-20 mA HART loop protocol data.
Frequently Asked Questions
Q: What action does the FS-SDO-0824 take upon detecting a short-circuit condition on an output channel?
A: Each individual solid-state channel incorporates self-protecting short-circuit limiters that isolate the overloaded line while maintaining normal execution across remaining healthy channels.
Q: Does the FS-SDO-0824 feature conformal coating for harsh environmental exposure?
A: No, the "FS-" prefix designates non-conformal coated assemblies intended for installation in controlled, non-condensing control room cabinet environments.
Q: What power source drives the field side loads connected to the module output terminals?
A: Field loads require an external 24 VDC power supply connected to the field termination assembly, drawing 70 mA base module current plus connected load demands.
Field Installation Guidelines
- Isolate all 24 VDC external power feeds and lock out system backplane rails before inserting or extracting the module.
- Align the circuit card assembly with cabinet chassis guide slots and slide in smoothly until rear connector headers engage backplane bus sockets.
- Tighten top and bottom retaining thumbscrews to ensure structural earth bonding with the rack frame.
- Route external 24 VDC field load cables separately from low-level analog or signal wiring channels to minimize inductive coupling interference.
