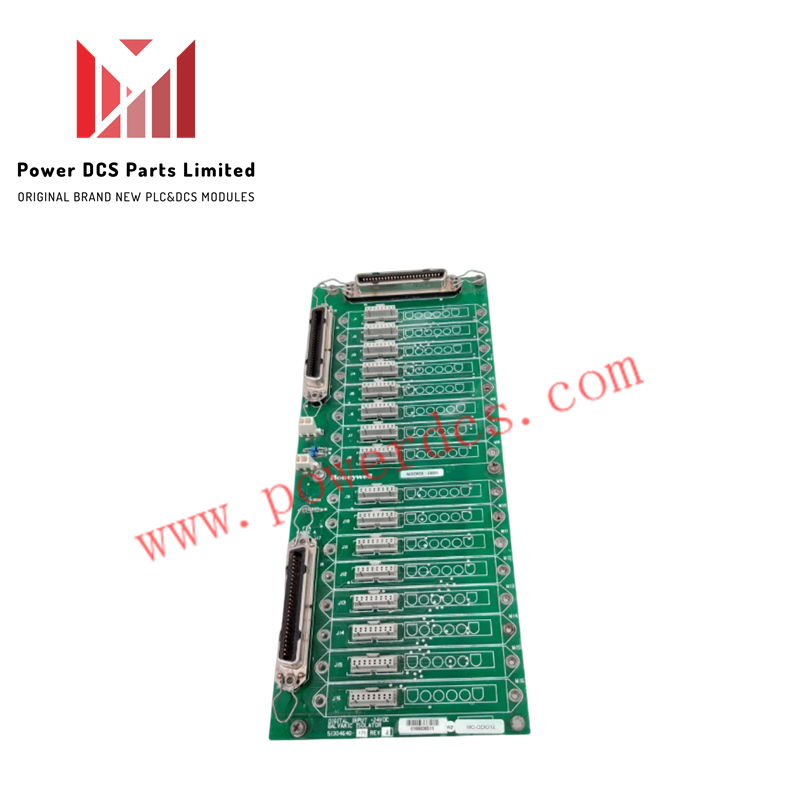

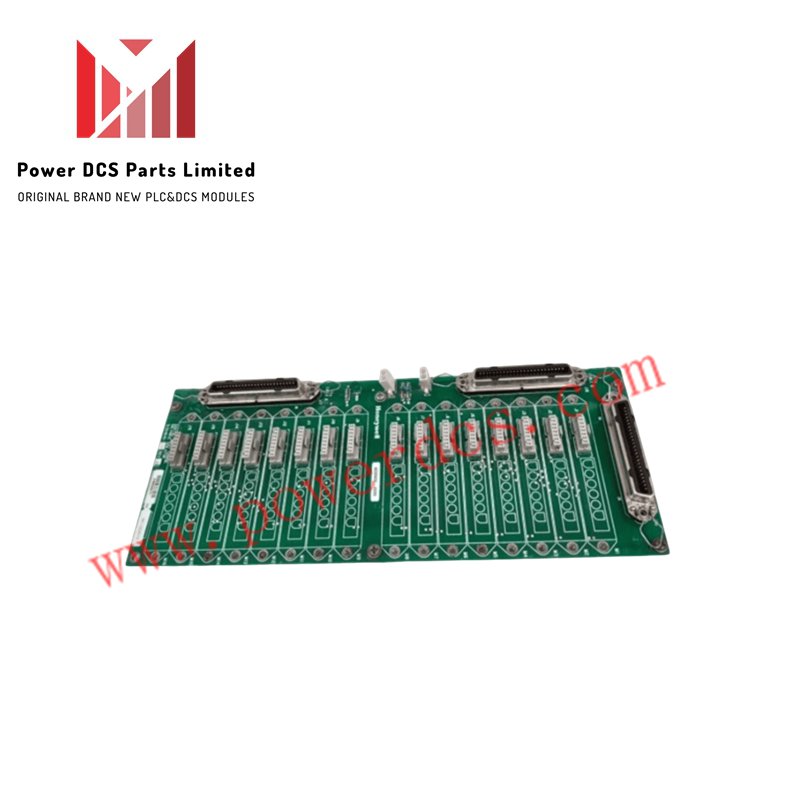

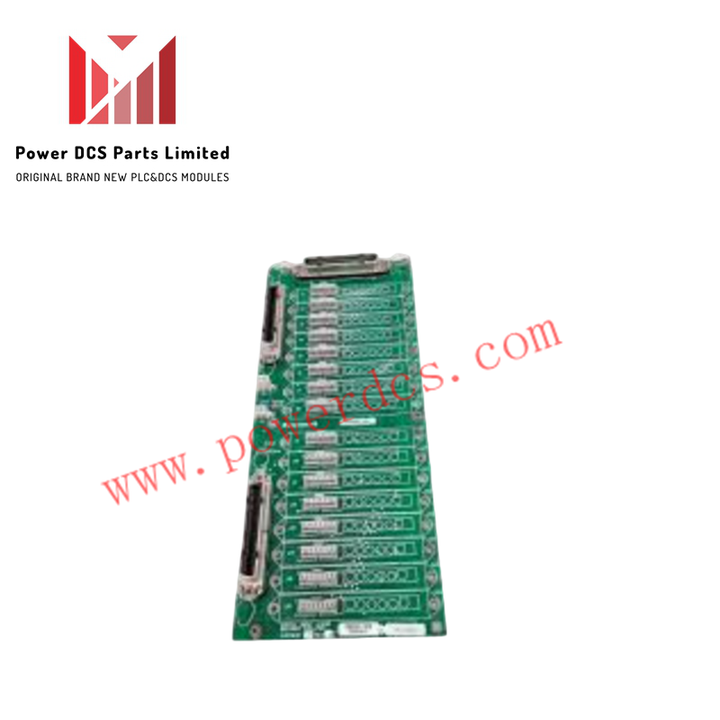

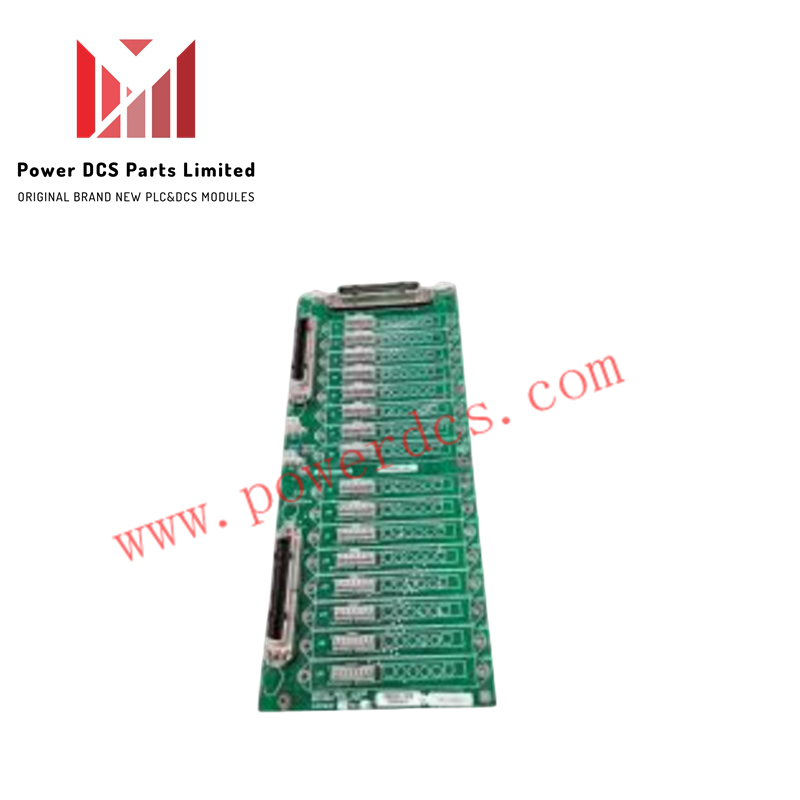

Honeywell MU-GDID12 Isolated Digital Input Module

The Honeywell 51304640-225, also cataloged as the MU-GDID12 Isolated Digital Input Module, operates as a dedicated hardware component for discrete field signal sensing and voltage-state detection within Honeywell DCS platforms.

Hardware Specifications

Channel Isolation & 4-20 mA Loop Interfacing

Equipped with optical and galvanic isolation barriers across all 12 input paths, the unit provides channel-to-channel galvanic isolation that eliminates ground loops between disparate field contacts. The channel-to-system isolation boundary prevents transient electrical spikes on field switches from inducing switching noise or magnetic interference onto adjacent analog backplane buses running 4-20 mA HART loop protocol signals.

Frequently Asked Questions

Q: What is the primary benefit of individual channel-to-channel isolation on this digital input card?

A: Channel-to-channel isolation prevents electrical faults or high-voltage surges on a single field input loop from propagating to neighboring channels or disrupting the main logic backplane.

Q: Can the MU-GDID12 accept input signals from both active voltage sources and dry contacts?

A: Yes, the input circuit topology supports both 24 VDC voltage-sourced discrete inputs (18 - 30 VDC operational range) and unpowered dry contact closures.

Q: Is hot-swapping allowed for this module in live Experion or TPS racks?

A: Module removal and insertion must conform to system-specific backplane power guidelines; field terminal power should be isolated before extracting the unit to avoid arc transients.

Field Installation Guidelines

• Ensure input field loop power is disconnected prior to wiring or removing field termination connections.
• Verify field signal cabling stays within the 18 - 30 VDC threshold for active voltage-sourced contact inputs.
• Maintain strict separation between field digital input wiring trays and high-voltage AC distribution power cables.
• Ground overall cable shielding at a single dedicated cabinet earth point to eliminate circulating earth loop currents.
• Practice ESD control measures, such as grounded wrist straps, during handling and installation into the backplane chassis.
