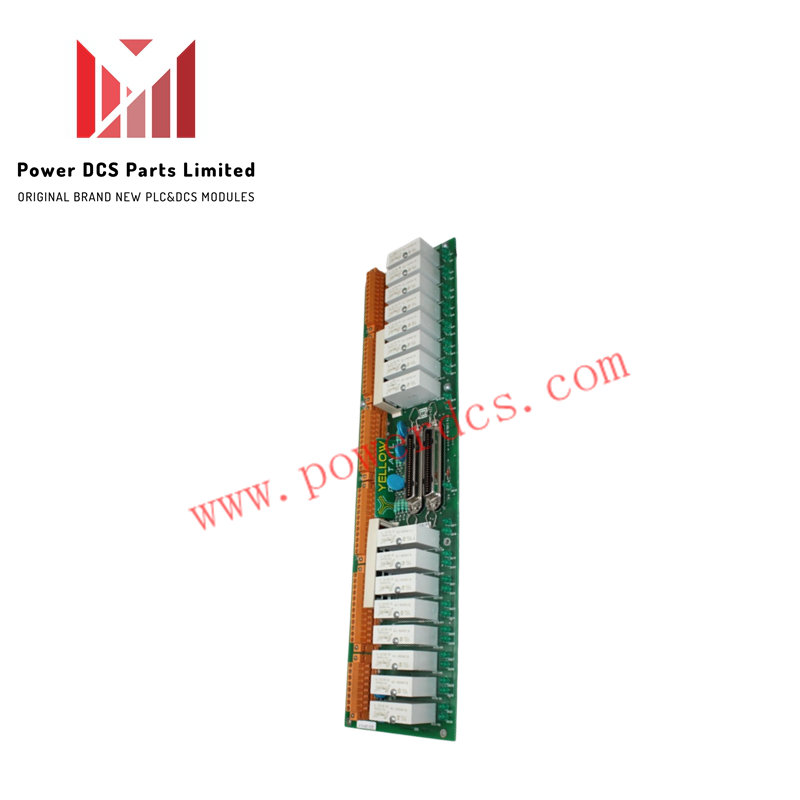

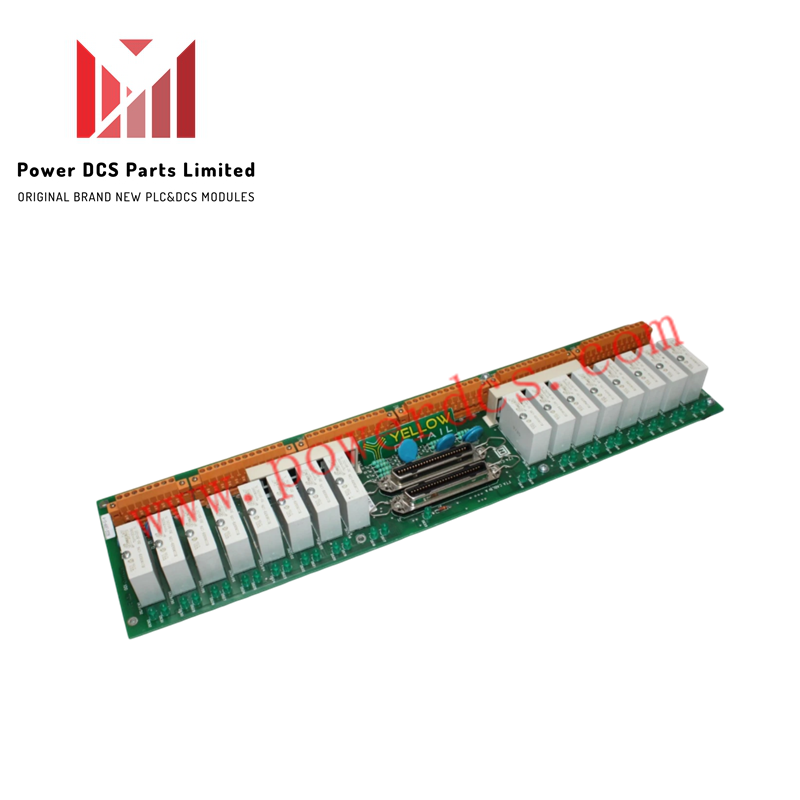

Honeywell MU-TDID12 51304441-125 Digital Input Module

The Honeywell 51304441-125, also cataloged as the MU-TDID12 Digital Input Module, operates as a dedicated hardware component for discrete signal acquisition and binary status monitoring within Experion PKS and TDC 3000 platforms. It conditions incoming 24 VDC sinking signals across 32 channels with sub-millisecond response times, transferring field contact states to the controller backplane.

Hardware Specifications

Channel-to-Channel Isolation & Signal Protection

The MU-TDID12 (51304441-125) utilizes per-channel optical isolation to isolate field-side discrete wiring from internal system logic circuits. This physical barrier blocks voltage transients, common-mode noise, and ground potential differences from corrupting backplane communication paths. The high-density isolation layout prevents cross-talk across adjacent channels, allowing clear discrete contact detection even when field wiring is routed alongside 4-20 mA HART loop protocol lines within shared cable raceways.

Frequently Asked Questions

Q: Does the MU-TDID12 module support live hot-swapping during active system operation?

A: Module replacement requires de-energizing the associated rack slot or isolating input channels to prevent transient electrical spikes on the backplane communication bus.

Q: What input field contact configuration is required to interface with the MU-TDID12?

A: The module channels are configured as sinking inputs, requiring external field devices and sensors to supply sourcing +24 VDC signals into the input terminals.

Field Installation Guidelines

1. Mount the module chassis into the designated slot of the DCS enclosure, securing retaining screws to ensure proper backplane connection.
2. Route 24 VDC field input wiring separately from high-voltage AC circuits and variable frequency drive output cables to suppress inductive coupling.
3. Verify all cable shielding terminates at a single cabinet chassis grounding bar to prevent circulating ground currents.
4. Ensure ambient operating temperatures inside the cabinet remain between -20 and 60 deg C to maintain rated thermal dissipation profiles.
