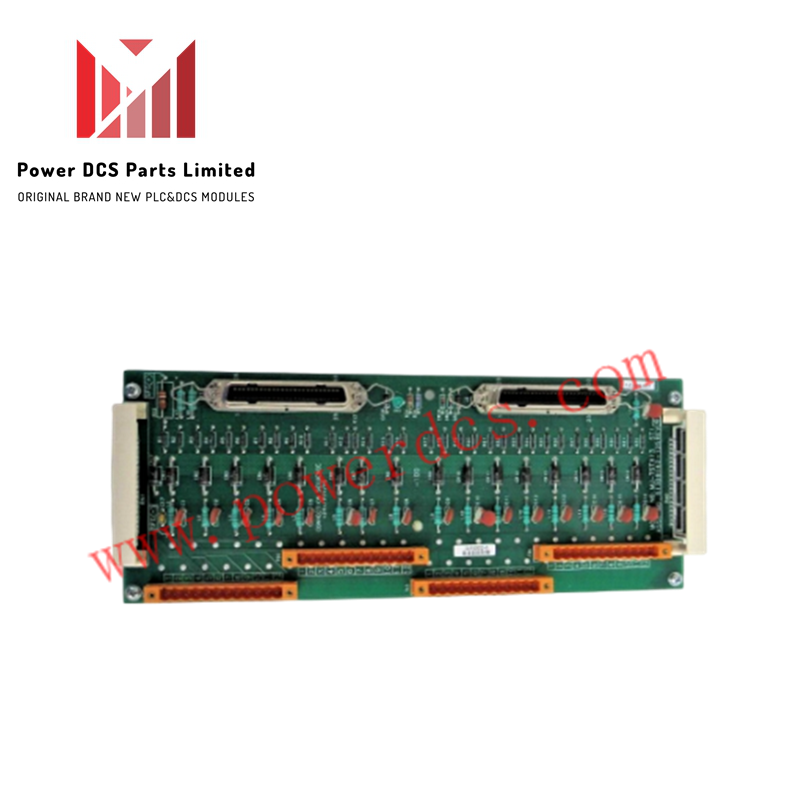

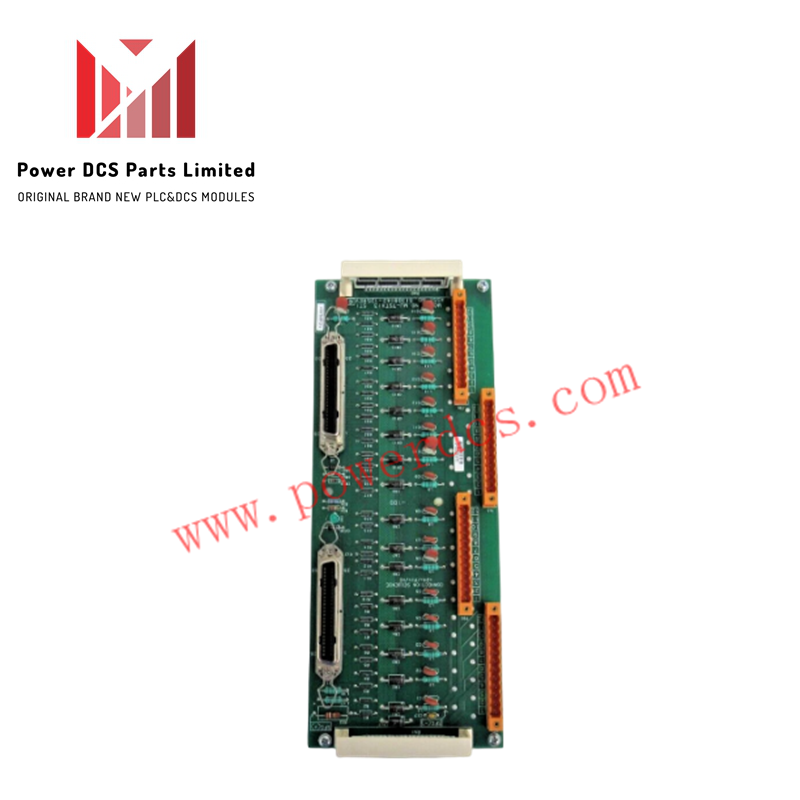

Honeywell MU-TSTX13 Transmitter Interface Module

The Honeywell MU-TSTX13, also cataloged as the MU-TSTX13 Transmitter Interface Module, operates as a dedicated hardware component for stable signal conditioning and isolation within Honeywell FSC platforms. It conditions analog field transmitter telemetry, executing physical-layer signal matching and noise suppression to maintain precise communication traffic between field instrumentation and functional safety controllers across dedicated safety loops.

Hardware Specifications

Channel-to-Channel Isolation and Galvanic Signal Conditioning

The MU-TSTX13 interface module utilizes embedded channel-to-channel isolation barriers to separate sensitive analog measurement loops from high-voltage transients and backplane ground potential shifts. By conditioning each incoming field transmitter line individually, the module eliminates ground loop current circulation and prevents cross-talk interference between adjacent channels. Integrated cold junction compensation (CJC) capabilities and precision loop filtering maintain sub-millivolt telemetry accuracy, ensuring deterministic signal delivery into the Honeywell FSC platform even in electrically hostile plant environments.

Frequently Asked Questions

Q: Does the MU-TSTX13 require external loop isolators for field signals?

A: No, the module integrates internal galvanic signal conditioning and channel-to-channel isolation circuits directly on the hardware board, allowing direct connection of field transmitter cabling without external isolation barriers.

Q: Can the MU-TSTX13 be extracted under live system backplane power?

A: System maintenance guidelines mandate verifying backplane fault isolation before module replacement; however, the module's mechanical edge connectors are engineered with ground-first pin alignment to allow safe insertion and extraction without disturbing adjacent logic signals on the FSC bus.

Field Installation Guidelines

1. Power down the targeted rack segment or verify backplane fault isolation parameters before inserting or extracting the module assembly.
2. Align module card edges with the designated chassis guide slots to ensure ground-first pin engagement during insertion.
3. Use shielded twisted-pair cabling for all incoming analog field transmitter wiring to reduce electromagnetic noise coupling.
4. Terminate cable shields directly to the cabinet main reference ground bar at a single point to prevent ground loops.
5. Ensure cabinet airflow paths remain clear so ambient operating temperatures stay within the specified -20 to +70 deg C range.
