Honeywell Signal Interface Assembly | MC-TSIA12 51303932-478

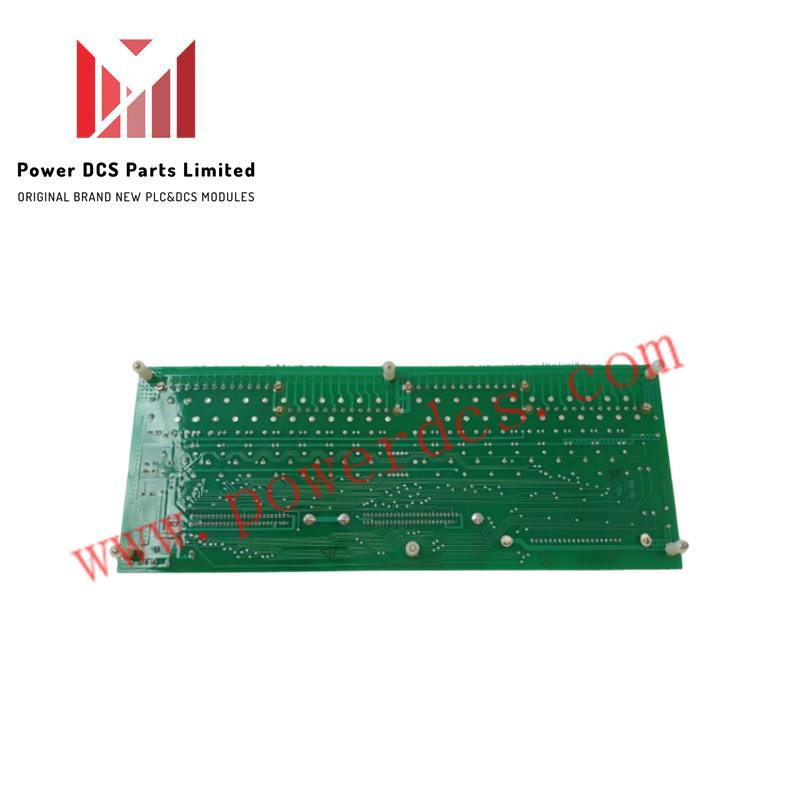

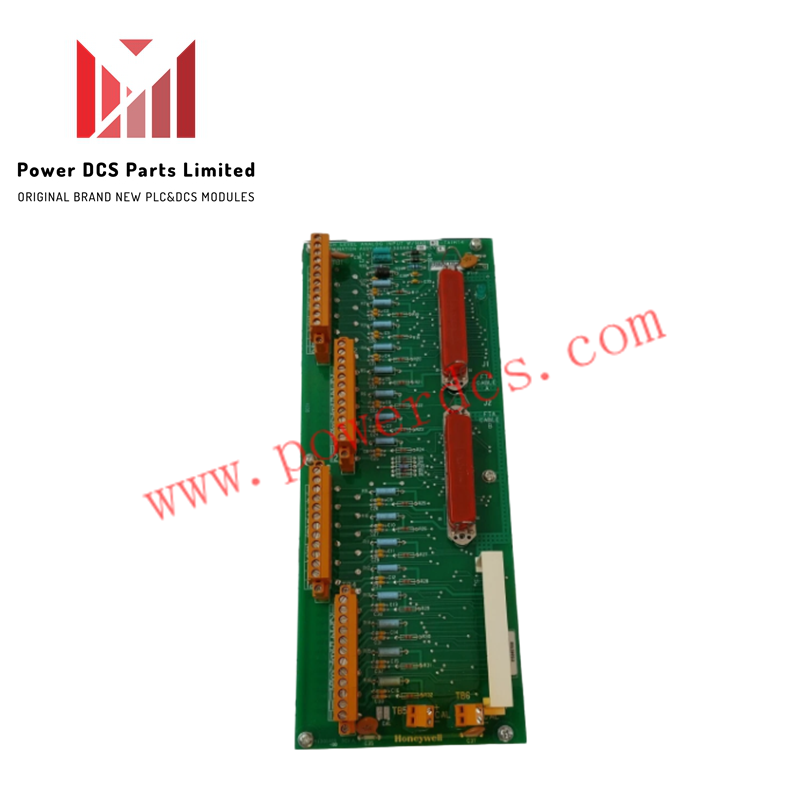

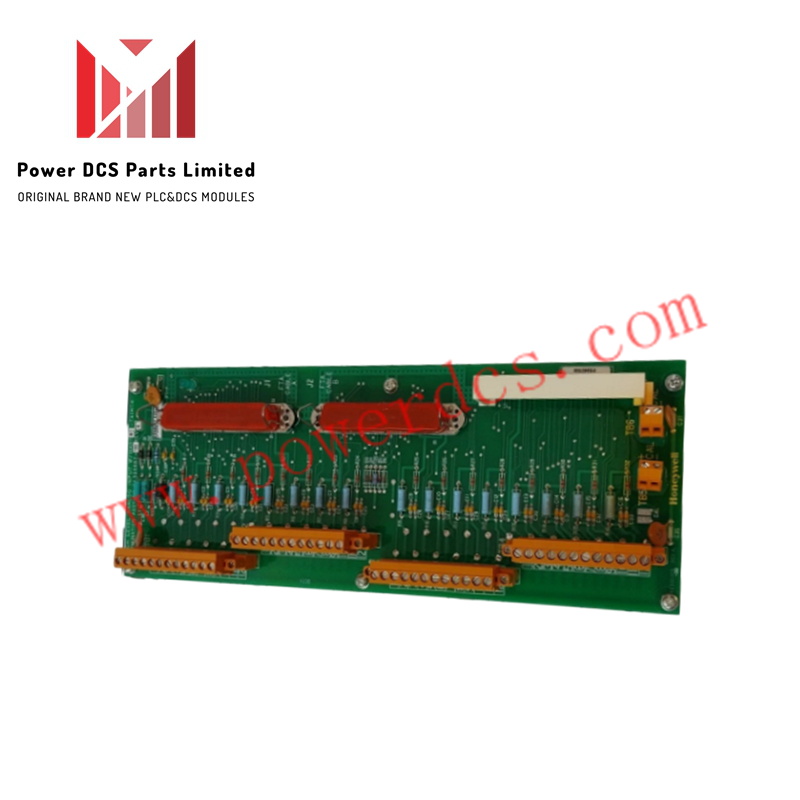

The Honeywell 51303932-478, also cataloged as the MC-TSIA12 PCB Signal Interface Assembly, operates as a dedicated hardware component for multi-channel field signal conditioning and controller communication within Honeywell Experion PKS and TPS platforms.

Hardware Specifications

Signal Interface Isolation & DCS Integration

The MC-TSIA12 routes and conditions analog and digital input/output signals across 12 discrete channels. Designed for integration with 4-20 mA HART loop protocol architectures, the circuit board features channel-to-channel isolation and active noise filtering hardware. This isolation barrier prevents electrical noise, common-mode voltage spikes, and ground potential loops from corrupting real-time process data transferred between field instruments and host controllers.

Frequently Asked Questions

Q: What watchdog functions are integrated into the MC-TSIA12 assembly?

A: The card features internal diagnostic watchdog circuits that continuously monitor onboard logic and channel health, triggering fault alerts upon signal boundary breaches or internal hardware errors.

Q: Can the MC-TSIA12 be deployed in redundant I/O rack configurations?

A: Yes, the 51303932-478 assembly supports dual-redundant channel topologies to ensure unbroken signal flow during module fault conditions.

Q: How does channel-to-channel isolation affect field signal conditioning on this board?

A: Channel-to-channel isolation breaks ground loops and suppresses high-frequency electromagnetic interference, isolating individual transmitter pathways from adjacent channel electrical noise.

Field Installation Guidelines

1. Power off the card rack chassis backplane before inserting or extracting the MC-TSIA12 board.
2. Align the printed circuit board edges cleanly with the chassis slot guides and slide the assembly back until the pin connectors seat completely into the backplane.
3. Ensure field cable shields are bonded to a single cabinet earth ground bus bar to prevent ground loops.
4. Separate low-voltage analog signal lines from AC power distribution wiring inside cabinet wire channels to maintain signal integrity.
