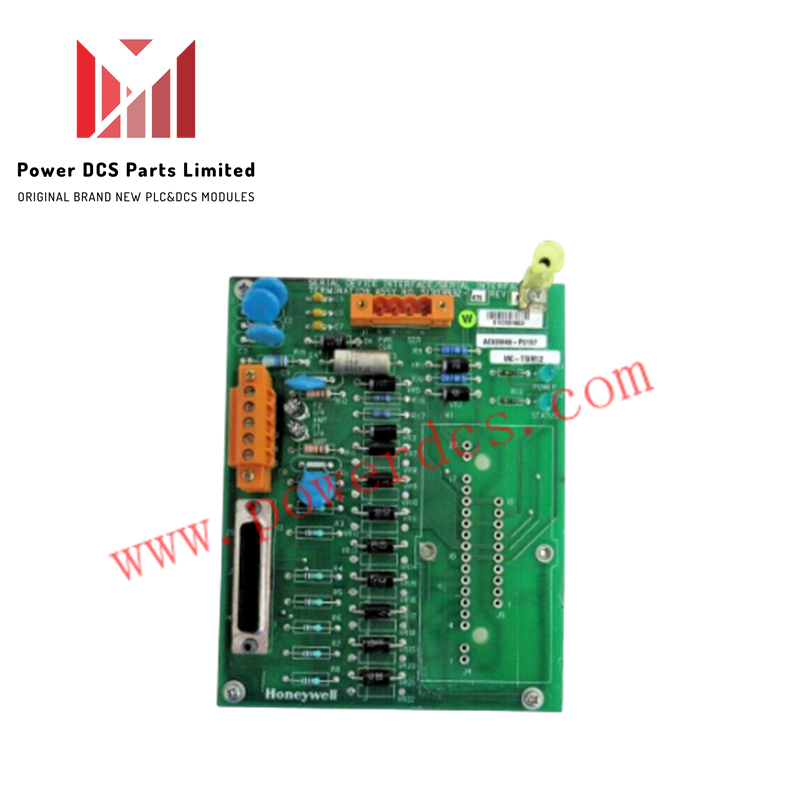

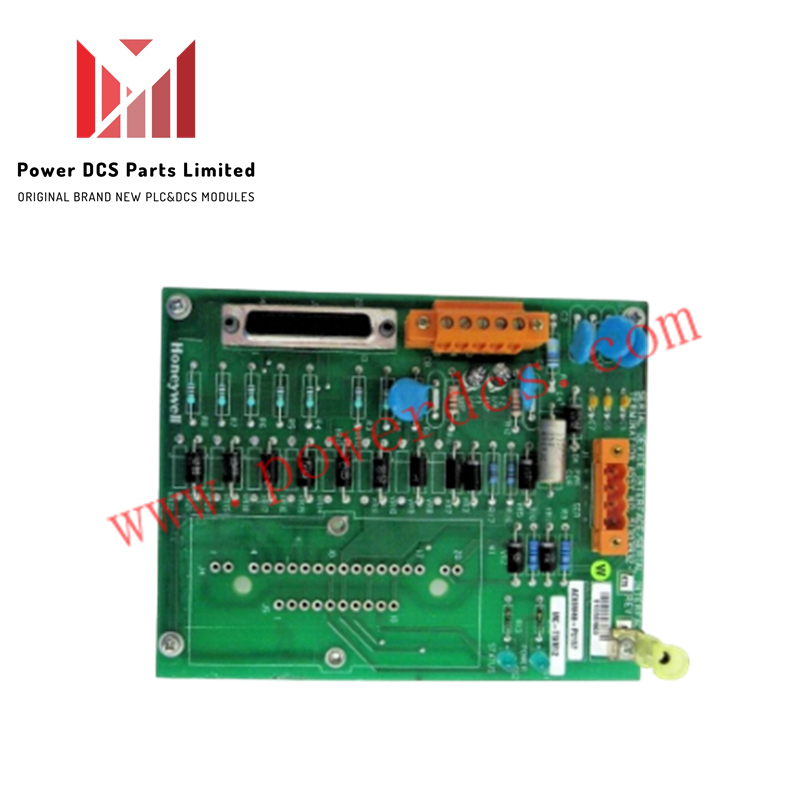

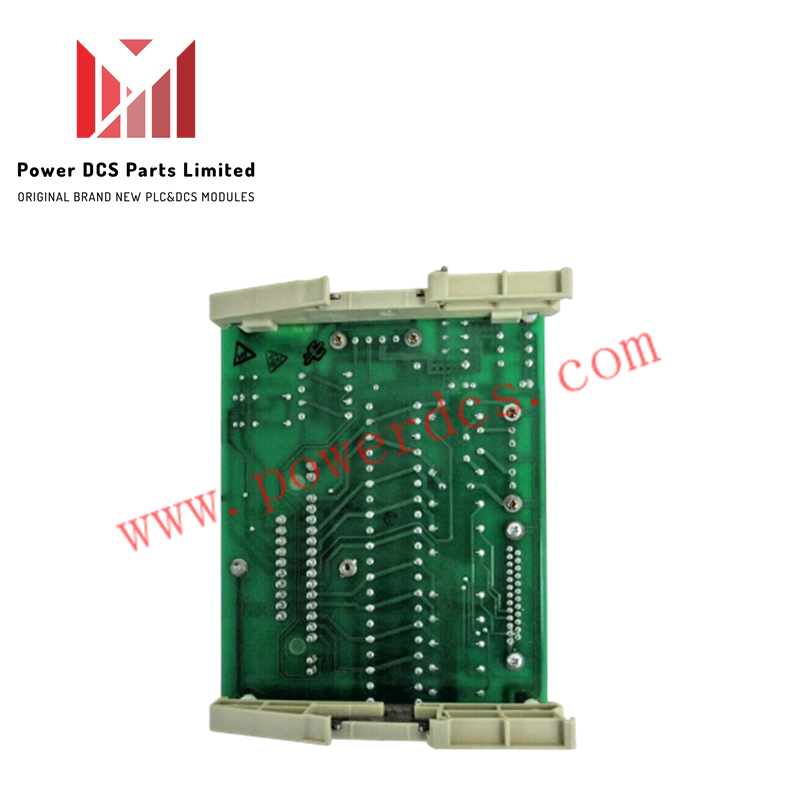

MC-TSIM12 51303932-471 | Honeywell | Serial Device Interface Module

Configured for discrete signal acquisition and serial data interfacing in Honeywell Experion PKS and TDC 3000 ecosystems, the Honeywell 51303932-471 (MC-TSIM12 Serial Device Interface Module) provides direct physical/electrical execution. This 12-channel isolated digital input termination board coordinates high-integrity communication between field-level digital devices and the Distributed Control System (DCS). The unit processes status monitoring signals across dry contacts and voltage-based inputs for real-time interlock logic and data exchange.

Hardware Specifications

DCS Process Control & Galvanic Signal Isolation

The MC-TSIM12 module incorporates complete channel-to-channel and channel-to-system galvanic isolation across all 12 discrete input lines. Designed for process control platforms utilizing 4-20 mA HART loop protocol and serial communication buses, the physical barrier suppresses common-mode electrical noise and prevents ground potential differentials from propagating to the central DCS processor backplane.

The board interfaces serial device communication with discrete status inputs to reduce overall data translation latencies. By maintaining signal path isolation across an extended thermal gradient of -40 to +70 deg C, the assembly ensures deterministic status updates and high-speed sequence-of-events recording within marshalling cabinet enclosures.

Frequently Asked Questions

Q: Can the MC-TSIM12 module be hot-swapped while the rack is energized?

A: While modular hardware extraction is physically supported, swap-out procedures must comply with Honeywell site-specific rack rules to ensure the I/O base supports hot-plugging without causing output fluctuations on active loops.

Q: How does the galvanic isolation protect against high electromagnetic interference (EMI)?

A: The board utilizes optically or magnetically decoupled input channels that isolate each 24 VDC field circuit, rejecting common-mode noise and blocking high-voltage electrical surges from reaching backplane logic.

Q: What input types are accepted by the 12 digital input channels?

A: The module accepts both dry contact closures and active voltage-based inputs operating within a functional range of 18 to 30 VDC.

Field Installation Guidelines

• Cabinet Grounding Protocols: Terminate cable shields at the marshalling cabinet ground bar using a single-point connection. Ensure the panel or rack structure maintains a low-impedance connection to system earth to maintain galvanic isolation integrity.
• Cable Routing and Separation: Keep 24 VDC discrete field input lines separated from high-voltage AC cables and sensitive analog communication wiring to prevent capacitive coupling and signal distortion.
• Rack and Panel Mounting: Secure the module chassis within the 152 mm x 121 mm x 25 mm mounting slot on the panel or rack frame, verifying that side retention latches engage firmly to resist mechanical vibration.
