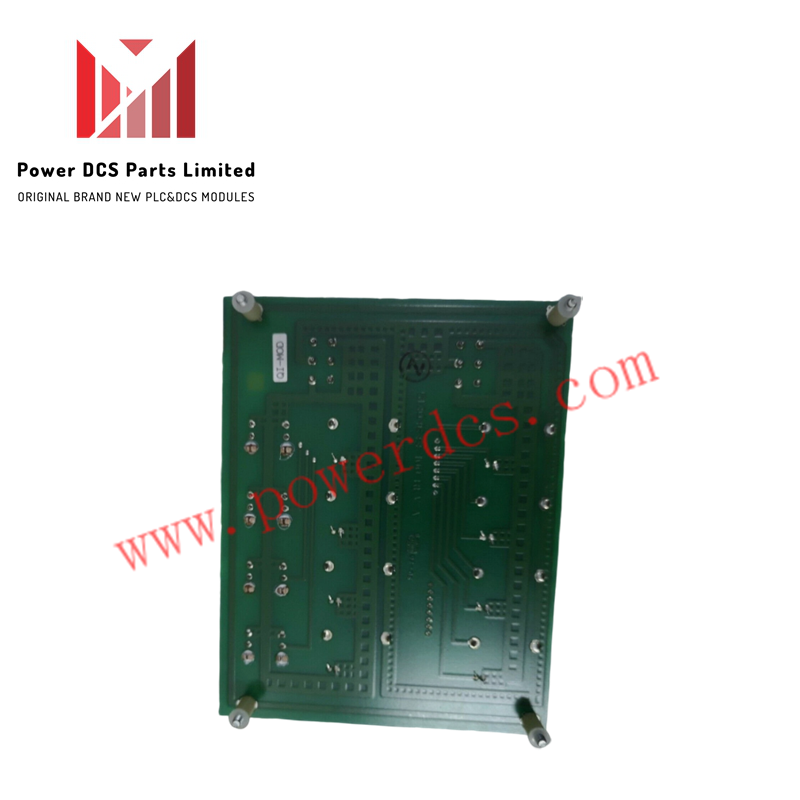

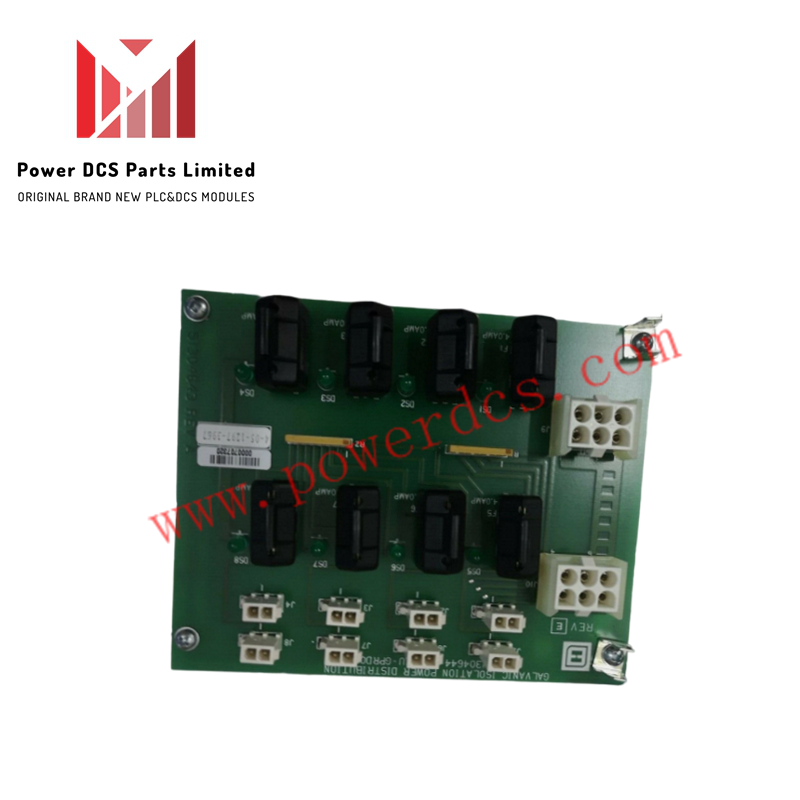

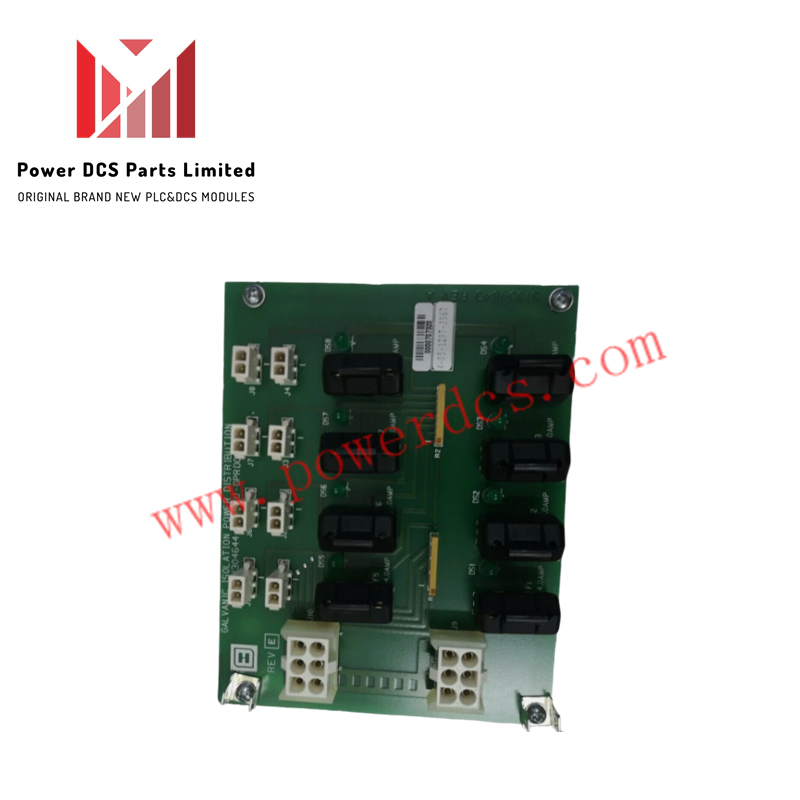

MU-GPRD02 | Honeywell | Experion PKS Power Distribution Assembly

The Honeywell MU-GPRD02, also cataloged as the 51304644-125 Power Distribution Assembly, operates as a dedicated hardware component for 24 VDC bus power distribution and fault-isolated energy routing within Honeywell Experion PKS and TPS architectures.

Hardware Specifications

Channel Isolation & 4-20 mA Loop Interfacing

Equipped with physical galvanic isolation barriers between primary and secondary power distribution stages, this assembly decouples internal power rails to prevent circulating ground currents across control racks. The isolated power plane shields analog-to-digital converters on adjacent I/O cards from power supply switching noise, maintaining low noise levels necessary for processing high-density 4-20 mA HART loop protocol signals.

Frequently Asked Questions

Q: How does the dual-input redundancy logic operate during a power supply rail failure?

A: The board accepts dual 24 VDC feeds; if one supply voltage drops below the operational threshold, the diode-ORing circuit transfers power execution to the secondary rail with zero switching latency.

Q: What onboard diagnostic features indicate power channel fault conditions?

A: Integrated fault detection logic activates local LED status indicators and outputs system-level diagnostic alerts upon detecting power supply failure or overload conditions.

Q: Is hot-swapping supported for the MU-GPRD02 assembly in live racks?

A: Physical replacement requires de-energizing or isolating the input feeds to prevent arcing and transient voltage spikes across high-current backplane contacts.

Field Installation Guidelines

• Verify that all input power feeds are de-energized before mounting the assembly to the cabinet enclosure.
• Secure power input and output terminal screws to specified torque tolerances to ensure low-resistance electrical contact.
• Route 24 VDC power distribution wiring away from AC power lines to avoid inductive noise coupling onto DC distribution channels.
• Connect the board chassis earthing terminal directly to the main cabinet ground bus using a low-impedance copper strap.
• Observe standard ESD precautions, including grounded wrist straps, when handling the assembly during maintenance.
