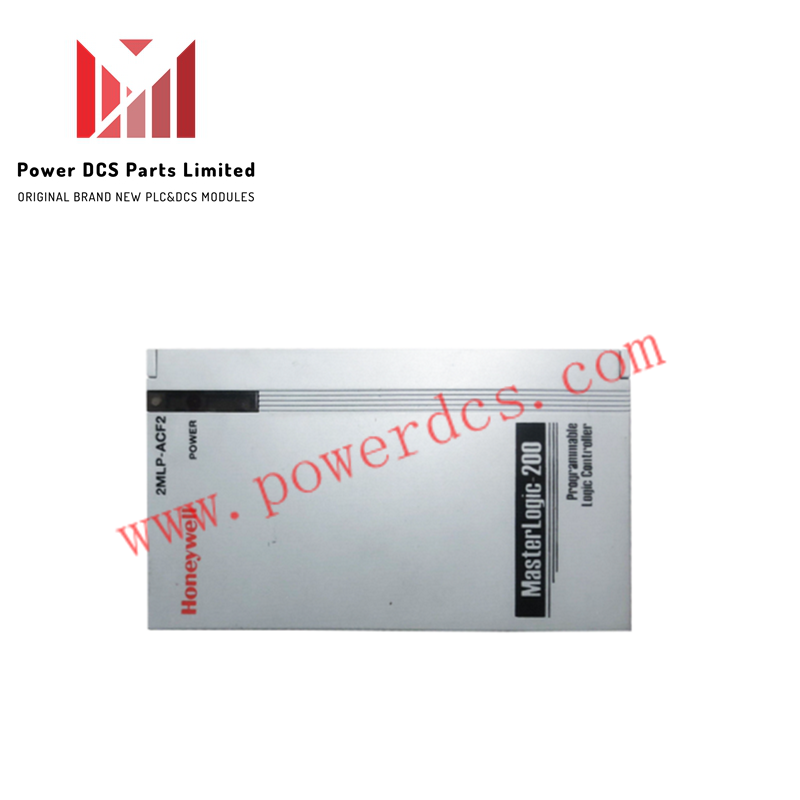

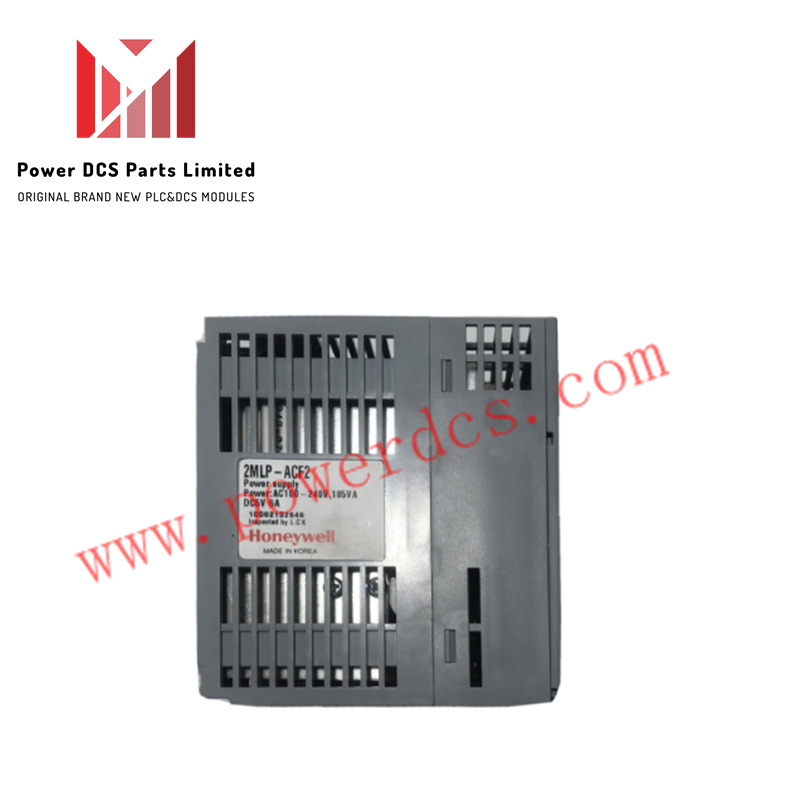

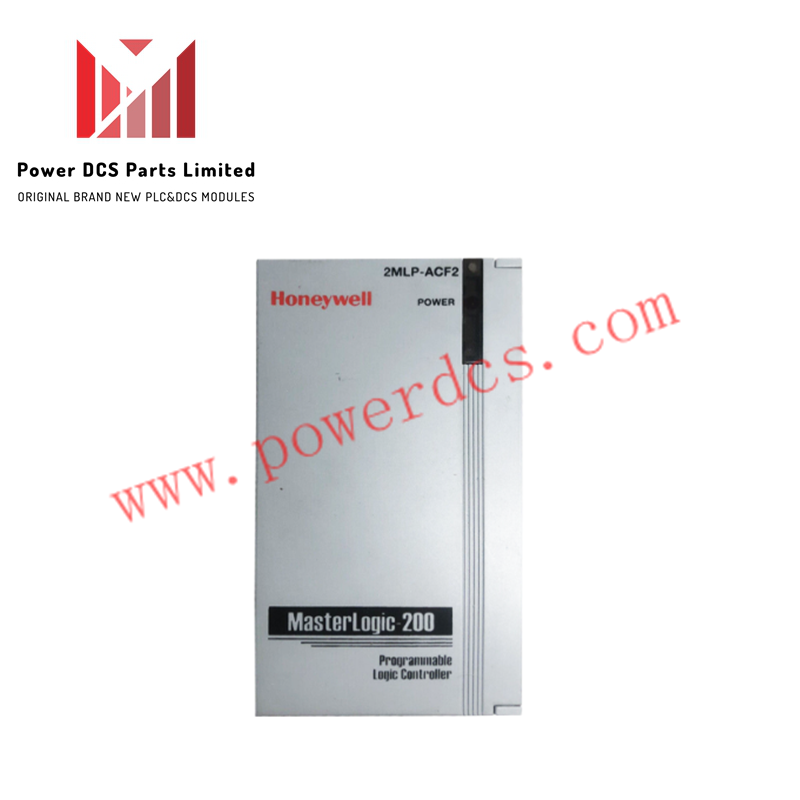

2MLP-ACF2 Honeywell Power Supply Module

Specifications

  • Manufacturer: Honeywell

  • Product No.: 2MLP-ACF2

  • Condition： 10 Artículos en stock

  • Product Type: Power Supply Modules

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 2000g

  • Shipping port: Xiamen

  • Warranty: 12 months

Detalles de producto

Descripción

The 2MLP-ACF2 is a free-voltage AC power supply module manufactured by Honeywell for industrial control systems. It accepts a wide AC input range and converts primary plant power into a regulated 5 VDC output at up to 6 A to power system electronics and backplane buses.

Input and Output Capabilities

The module features a wide-range "free voltage" AC input capable of operating across 100 VAC to 240 VAC (covering standard 110 V and 220 V grid nominals). On the secondary side, it provides a dedicated 5 VDC rail supplying up to 6 A of continuous current to connected automation components.

Parameter Specification
Model 2MLP-ACF2
Brand Honeywell
Product Type Power Supply Module
Input Voltage 100-240 VAC (110 V / 220 V Nominal)
Output Voltage 5 VDC
Output Current 6 A
Shipping Weight 2 kg

Frequently Asked Questions

Q: What line voltages can the 2MLP-ACF2 power supply accept? A: The module accepts a wide-range input of 100 VAC to 240 VAC, making it suitable for both 110 V and 220 V nominal AC supplies without manual voltage selection.

Q: What output capacity does the Honeywell 2MLP-ACF2 provide? A: It delivers a single 5 VDC output supplying up to 6 A of direct current.

Hot Tags :

MasterLogic-200 Power Supply Modules
