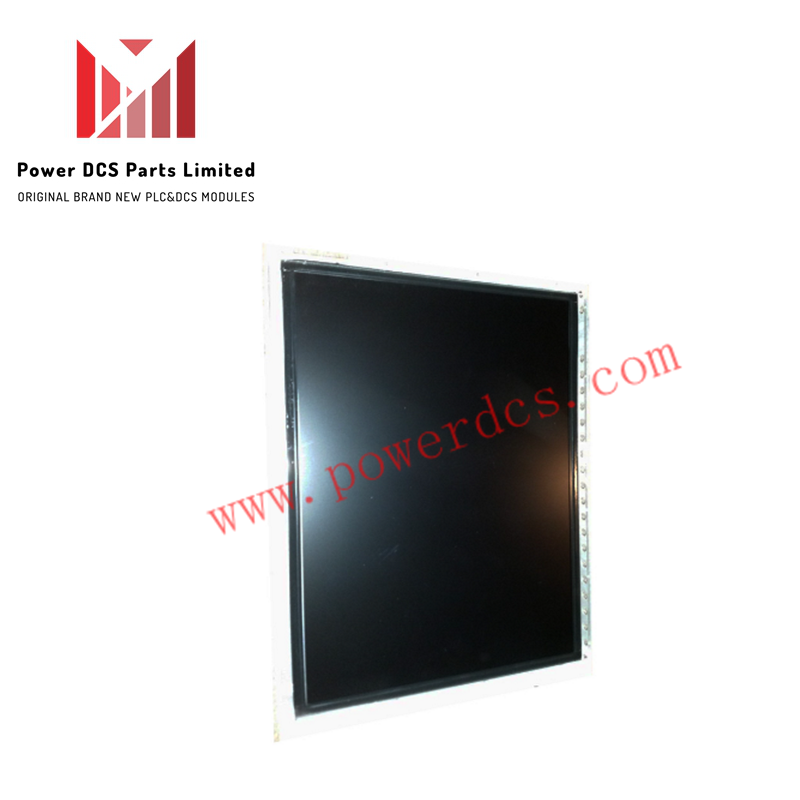

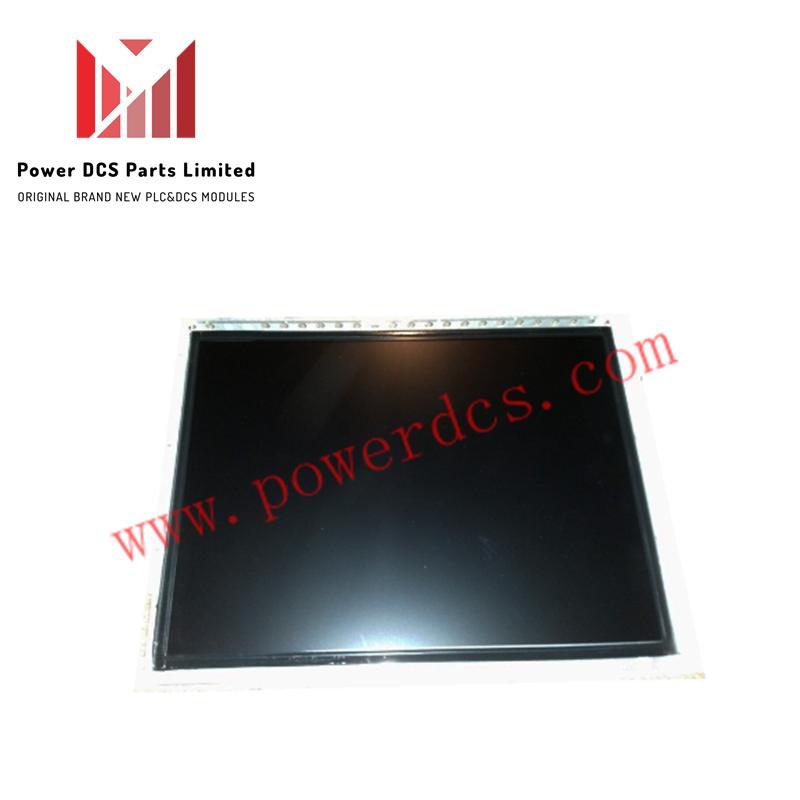

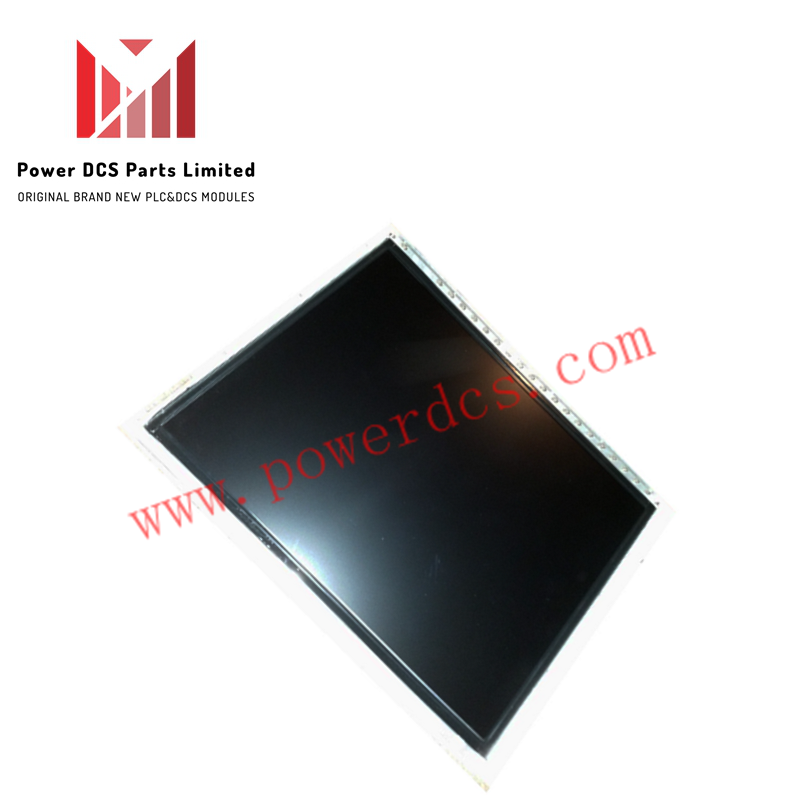

51199194-100 | Honeywell | LCD Flat Panel Display

The Honeywell 51199194-100, also cataloged as the 51199194-100 LCD Flat Panel Display, operates as a dedicated hardware component for operator interface visualization and process graphic execution within Honeywell Z-Console Universal Station environments.

Hardware Specifications

4-20 mA HART Loop Protocol and Channel Isolation

Operating within Honeywell operator workstation environments, the flat panel display maintains internal galvanic separation between its digital display processing circuitry and external power inputs to suppress common-mode voltage noise. Although the display unit interfaces with high-resolution video and touch-controller signals rather than direct analog field loops, its robust grounding architecture and shielded cabling interfaces prevent electromagnetic interference (EMI) from radiating into adjacent supervisory controllers processing 4-20 mA HART loop protocol parameters or FOUNDATION Fieldbus network data streams across control room cabinets.

Frequently Asked Questions

Q: Can the 51199194-100 display panel be replaced while the Z-Console Universal Station remains powered on?

A: No. Power to the operator console and display unit must be fully isolated and locked out before disconnecting video cables or internal power harnesses to prevent electrical shorts or component damage.

Q: How is touchscreen calibration managed on this display unit?

A: Touchscreen calibration data is processed through the attached console controller interface, requiring software-level alignment via the operating station configuration utility after hardware replacement.

Field Installation Guidelines

• Verify that power to the Z-Console Universal Station is completely de-energized prior to handling or mounting the display panel.
• Handle the 20.1-inch LCD screen with care, avoiding excessive mechanical pressure on the glass substrate and bezel edges.
• Secure the unit into the console cutout using approved mounting hardware, ensuring even torque distribution across all retaining brackets.
• Route display signal cables and power harnesses through dedicated internal management channels, keeping them separated from high-voltage AC lines to prevent signal distortion.
