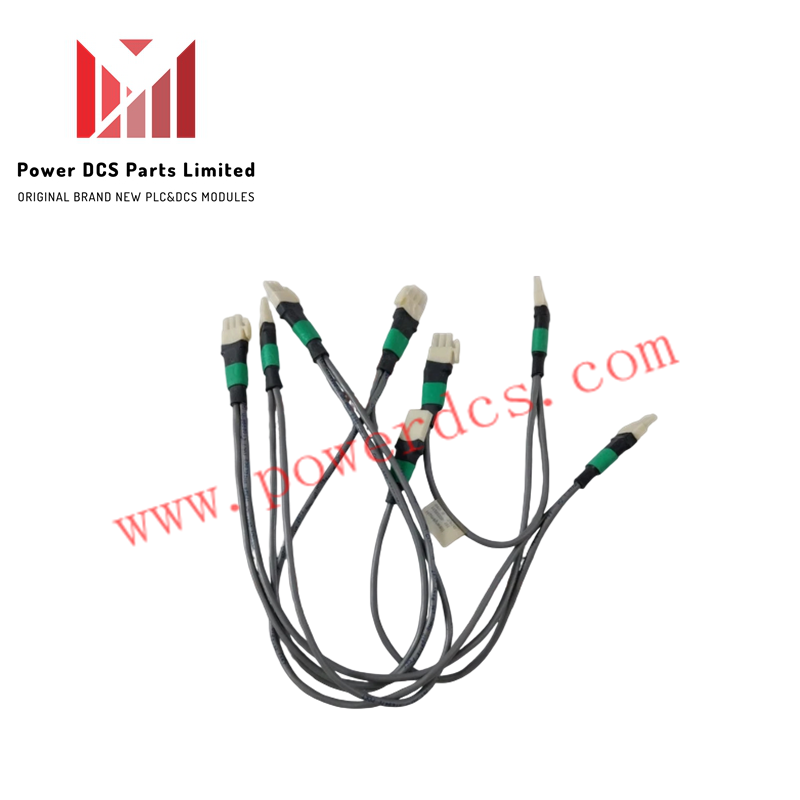

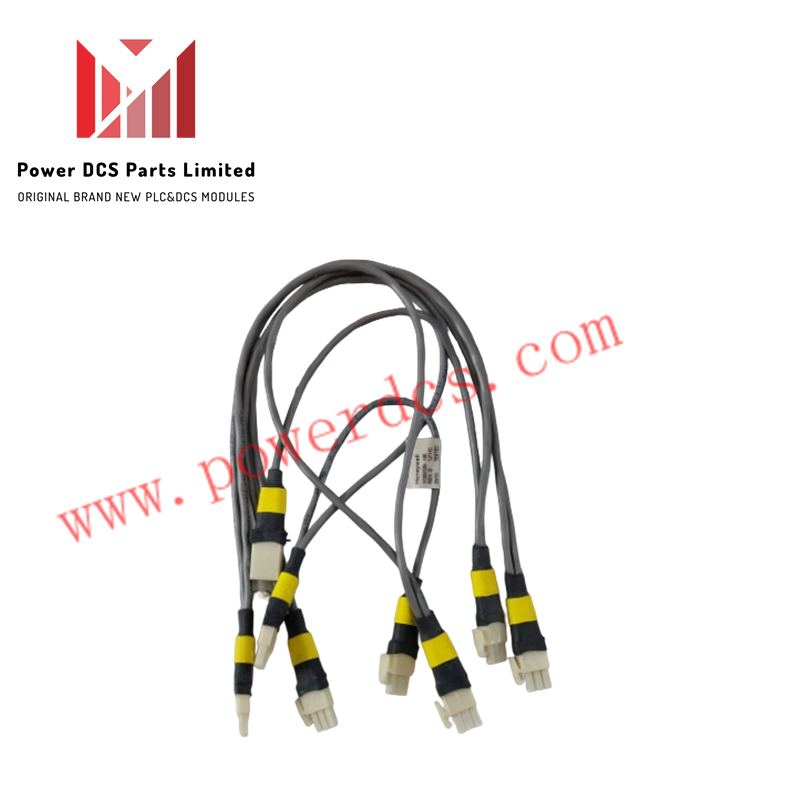

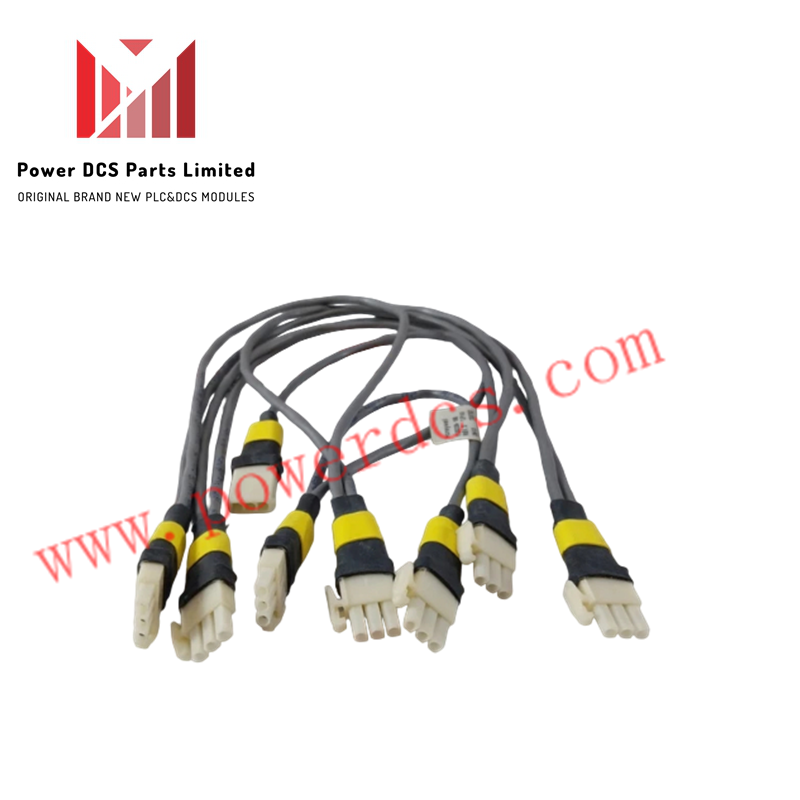

51202971-102 | Honeywell | Combo IO Link 6-Drop Cable

Configured for signal routing and communication interconnection across Series 8 distributed control system nodes, the Honeywell 51202971-102 (51202971-102 Combo IO Link 6-Drop Cable) provides direct physical signal execution and multi-drop communication across control cabinet architecture.

Hardware Specifications

DCS Process Control and Signal Communication Interfaces

The assembly integrates within Honeywell Series 8 process automation architecture, maintaining strict channel-to-channel isolation and cold junction compensation (CJC) path integrity across distributed nodes. Standard configuration supports 4-20 mA HART loop protocol environments alongside high-speed digital communication layers. The integrated grey outer jacketing and internal shielding minimize electromagnetic interference (EMI) across noisy industrial floors, ensuring deterministic bus operation and low-latency packet transmission between field devices and master controller cards.

Frequently Asked Questions

Q: Does the 51202971-102 support hot-swapping on active controller networks?

A: Cabling adjustments must be performed with upstream loop power isolated to prevent communication dropouts or transient voltage spikes on connected control nodes.

Q: How many device drop connections are supported by this Series 8 cable assembly?

A: The harness is engineered with a 6-drop configuration to support multiple field devices along a single communication branch.

Field Installation Guidelines

1. Verify that system power and communication loops are de-energized prior to routing and connecting the cable between controller nodes and interface modules.
2. Route the cable along designated internal cabinet wireways, maintaining physical separation from high-voltage AC power lines to prevent induced noise coupling.
3. Secure connector plugs firmly to terminal interfaces, ensuring locking mechanisms or retention clips are fully engaged to withstand industrial vibration environments.
