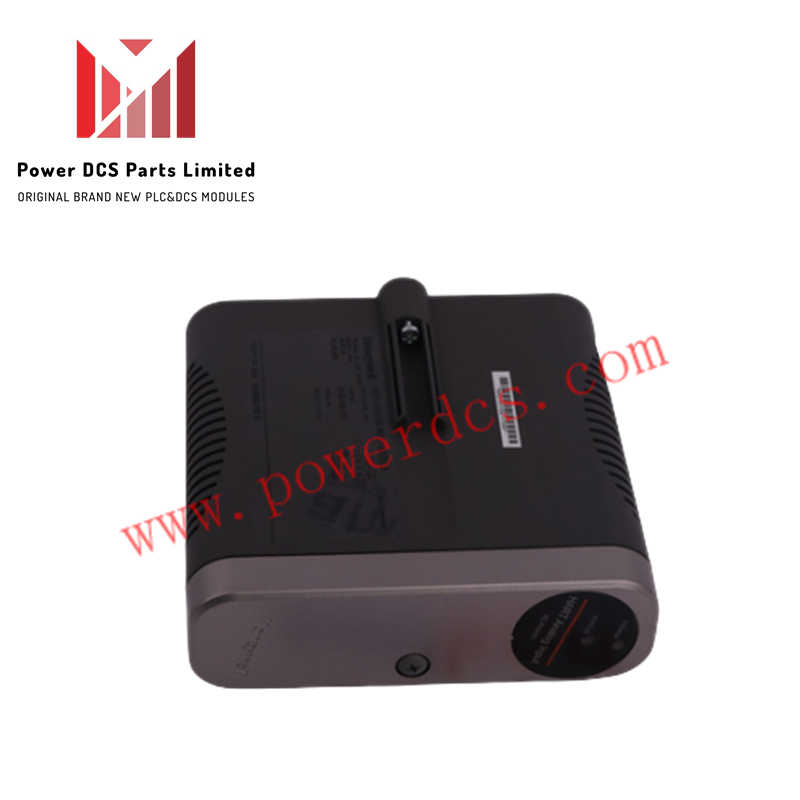

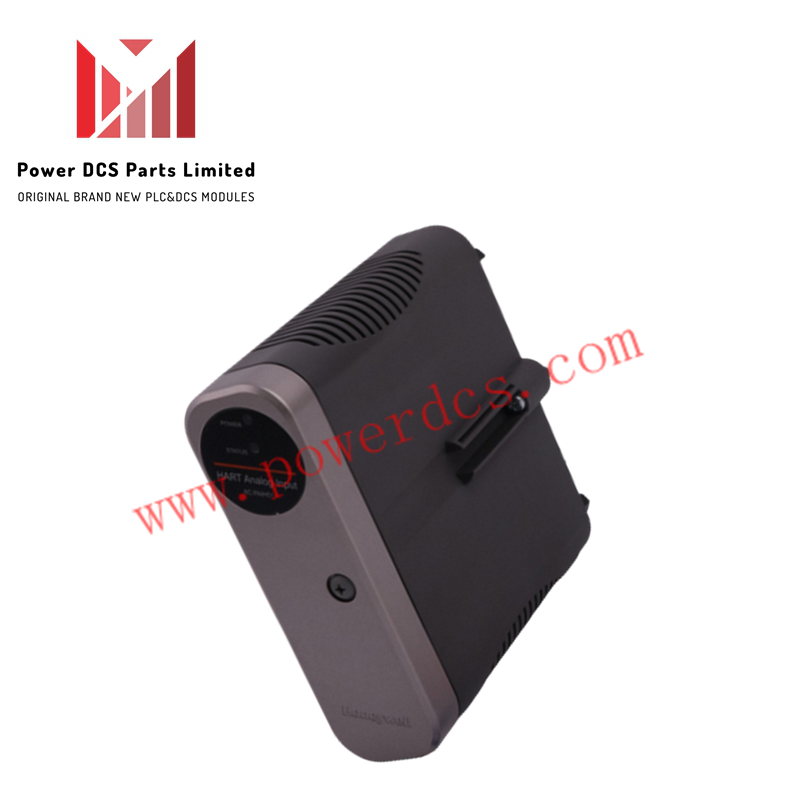

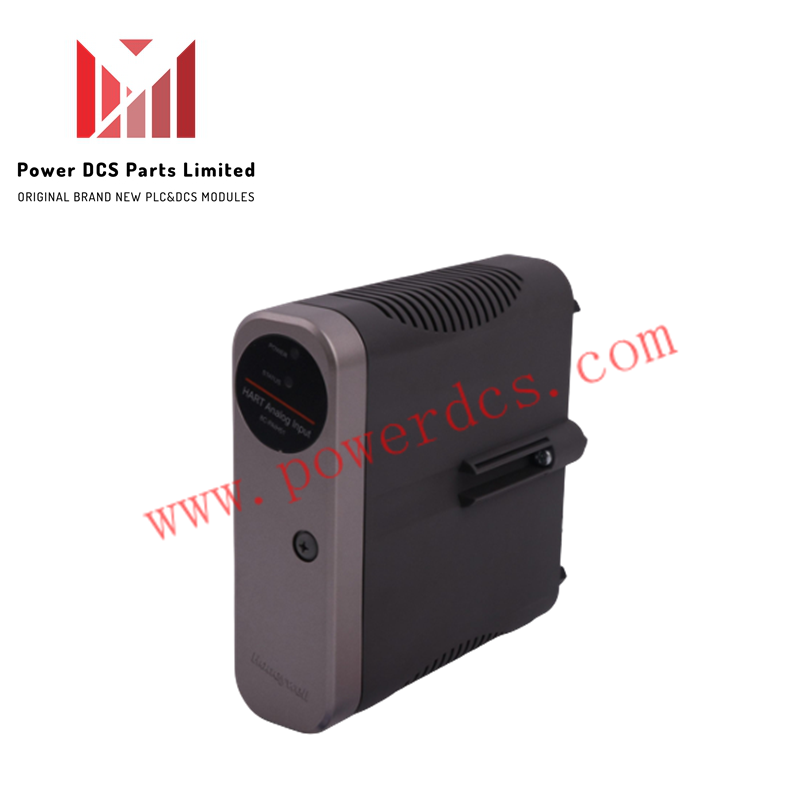

8C-PCIW02 51454363-275 Honeywell Series 8 Multifunction Controller Module

The Honeywell 8C-PCIW02 51454363-275, also cataloged as the 8C-PCIW02 Multifunction Controller Module, operates as a dedicated hardware component for configurable input and output signal execution within Honeywell Experion PKS and C300 Controller platforms.

Hardware Specifications

Channel Isolation & Loop Communications

The 8C-PCIW02 51454363-275 executes process control algorithms by managing software-configurable analog and digital channel blocks directly over the C300 controller I/O bus. The module hardware incorporates channel-to-channel isolation to prevent ground loop propagation across field-side connections. Integrated field communication processing supports 4-20 mA HART loop protocol pass-through, enabling digital device telemetry, primary variable extraction, and dynamic configuration adjustments directly through the DCS backplane layer.

Frequently Asked Questions

Q: Can individual channels on the 8C-PCIW02 51454363-275 module handle both analog and digital signals?

A: Yes, the hardware incorporates software-configurable channel architecture capable of accepting or generating both discrete digital signals and 4-20 mA analog process variables.

Q: Is hot-swapping supported when replacing an 8C-PCIW02 51454363-275 module on an active IOTA?

A: Hot-swapping is supported when mounted on a live Input Output Termination Assembly (IOTA) carrier, provided standard C300 system redundant configuration or maintenance procedures are followed.

Q: How does channel-to-channel isolation protect the C300 backplane bus?

A: Galvanic channel-to-channel isolation limits field-side electrical noise, common-mode voltage spikes, and ground loop currents from reaching internal backplane logic components.

Field Installation Guidelines

• IOTA Mounting: Align the module edge connectors precisely with the Series 8 IOTA carrier slot and press firmly until both side retention latches click into place.
• Shield Cable Termination: Ground field instrument cable shields at a single point on the designated enclosure earth grounding bar to prevent stray currents.
• Wiring Conduit Routing: Route low-voltage analog and digital signal cables through separate raceways isolated from 120/240 VAC power cables to maintain signal integrity.
