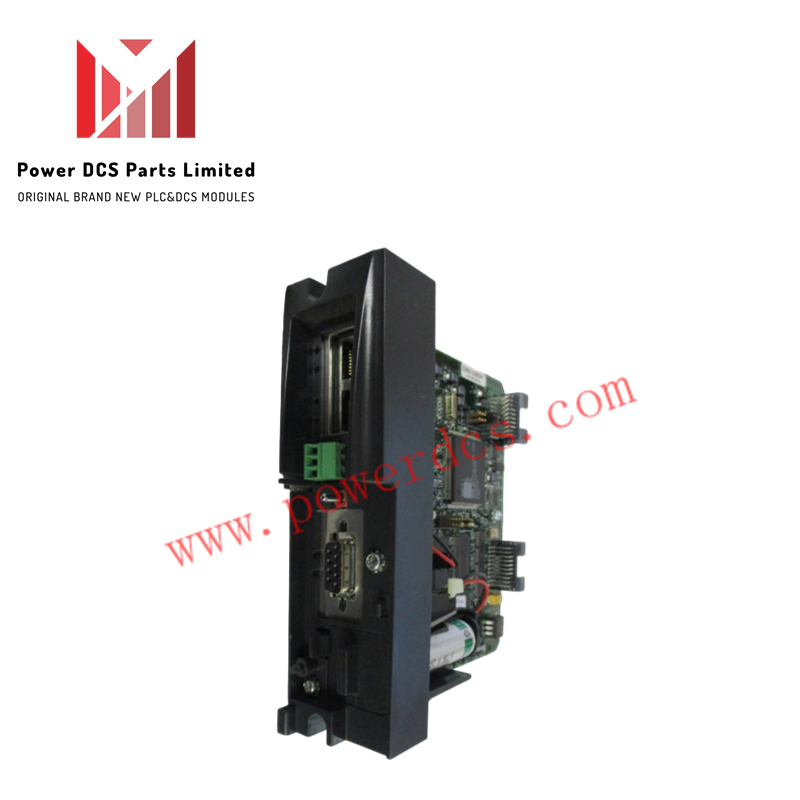

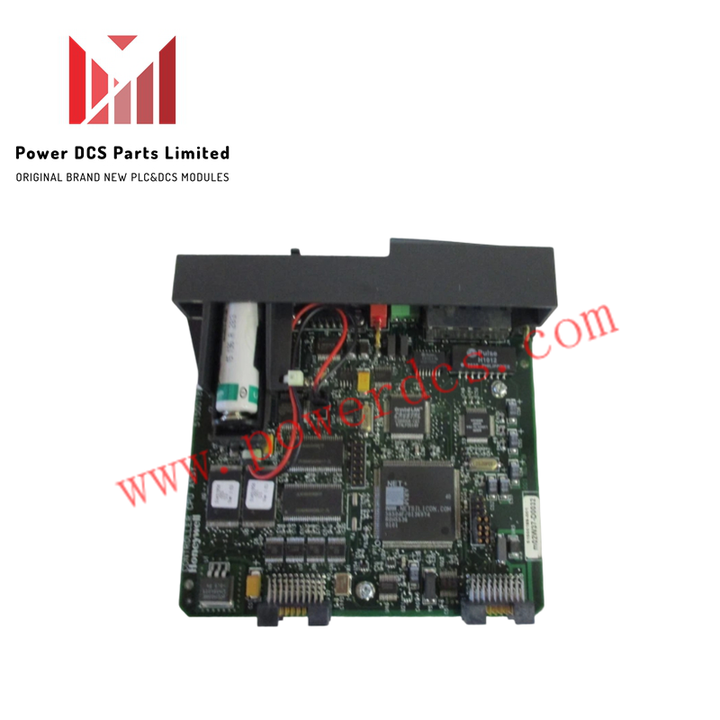

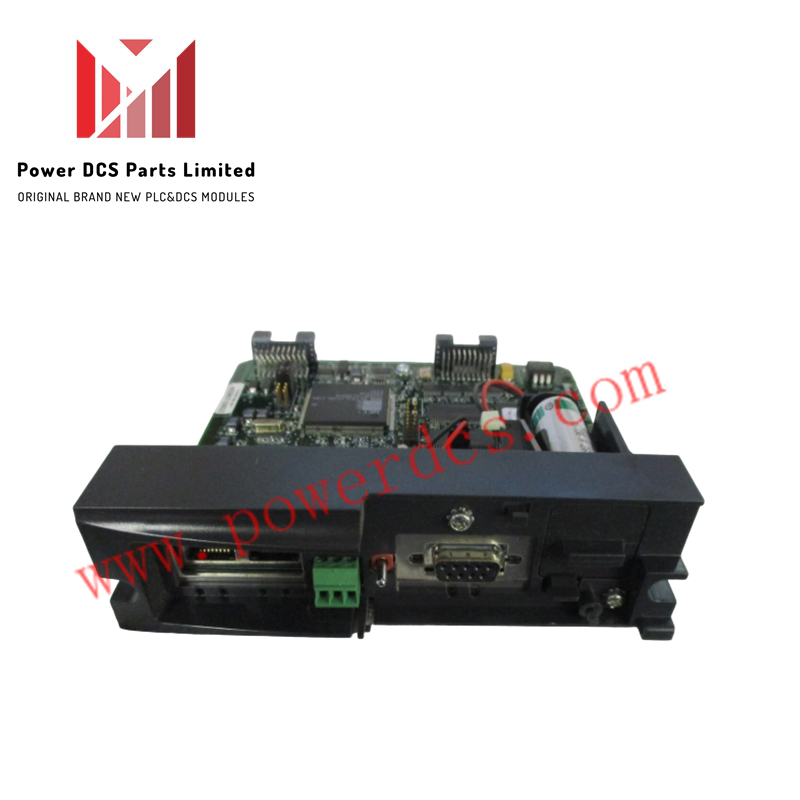

900C51-0001 Honeywell HC900 CPU Module

Configured for central processing and logic execution in ControlEdge HC900 networks, the Honeywell 900C51-0001 (900C51-0001 CPU Module) provides direct physical/electrical execution.

Hardware Specifications

Process Control & Network Integration

The central processing unit manages real-time control loops, I/O scan cycles, and data acquisition across the backplane bus. Designed for multi-channel process automation, the internal architecture maintains galvanic isolation to prevent noise propagation across 4-20 mA HART loop protocol connections and digital field interfaces. Native communication channels handle real-time diagnostic telemetry, loop tuning data, and deterministic controller inter-node synchronization without degrading primary instruction execution speeds.

Frequently Asked Questions

Q: What is the primary function of the 900C51-0001?

A: The 900C51-0001 is the central processing unit for the Honeywell HC900 system, responsible for executing control logic, managing I/O communications, and performing data processing for industrial automation tasks.

Q: Can this module be used in high-temperature environments?

A: The module is rated for operation between 0 and 60 deg C. Ensure the cabinet environment is controlled within these limits to maintain optimal performance and longevity.

Q: Can the 900C51-0001 CPU module be hot-swapped while backplane power is active?

A: System power must be disconnected prior to inserting or removing the CPU module to prevent backplane bus logic disruption or electrical damage to internal microprocessors.

Field Installation Guidelines

1. Ensure the control system is powered down before installing or removing the CPU module to prevent electrical damage.
2. Mount the module in a clean, dry, and well-ventilated enclosure to maintain the specified operating temperature range.
3. Use proper ESD (Electrostatic Discharge) protection when handling the module to avoid damage to sensitive internal circuitry.
4. Ensure all communication cables are properly routed away from high-voltage power lines to minimize electromagnetic interference (EMI).
5. Verify that the module is fully seated in the rack backplane to ensure reliable connection of power and communication buses.
