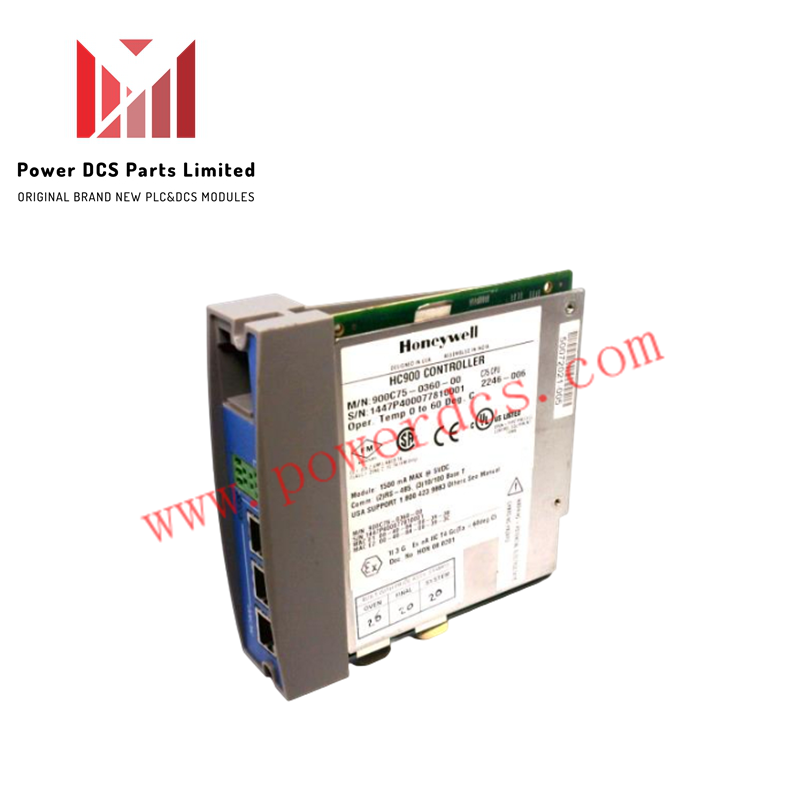

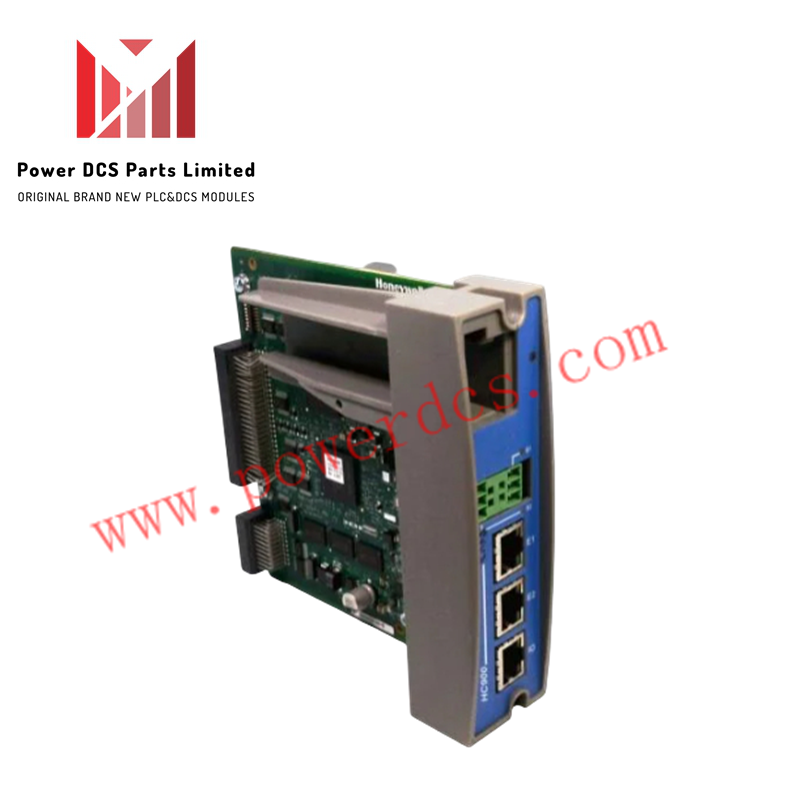

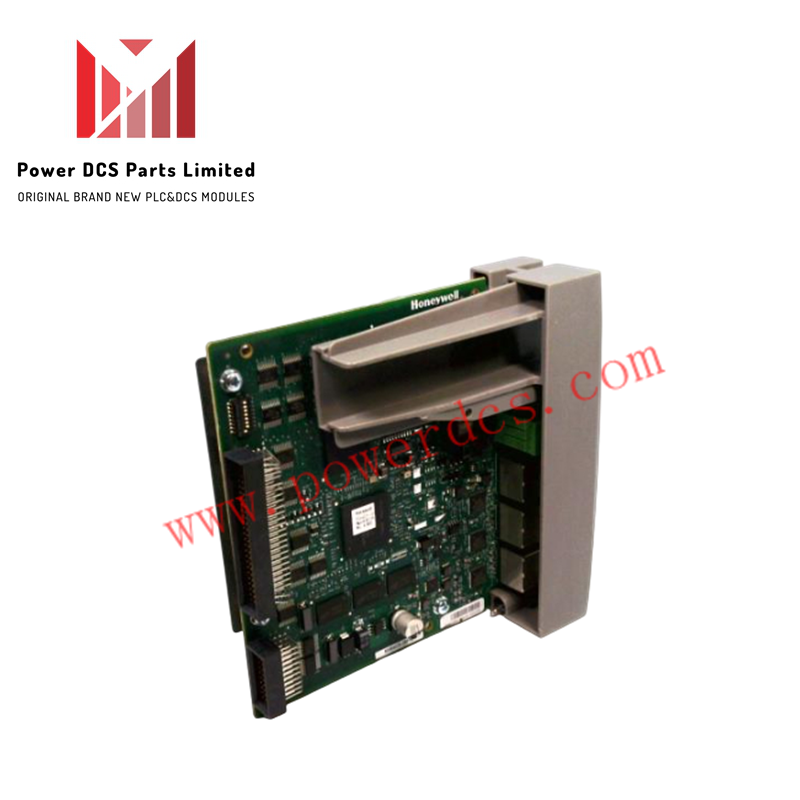

900C75-0360-00 | Honeywell | ControlEdge HC900 C75 CPU Module

The Honeywell 900C75-0360-00, also cataloged as the 900C75-0360-00 C75 CPU Module, operates as a dedicated hardware component for central processing and deterministic control execution within ControlEdge HC900 architectures.

Hardware Specifications

4-20 mA HART Loop Protocol and Channel-to-Channel Isolation

The C75 CPU module processes real-time control algorithms and manages high-speed backplane communication across distributed I/O racks. Internal optical isolation barriers and galvanic decoupling circuits isolate central processing logic from common-mode electrical noise and ground potential shifts. The processor maintains continuous data synchronization across 4-20 mA HART instrumentation loops, delivering precise variable monitoring and deterministic execution for field control loops.

Frequently Asked Questions

Q: What power supply voltage is required to power the 900C75-0360-00 CPU module?

A: The module is designed for direct integration with standard 24 VDC industrial power supply systems.

Q: Can the 900C75-0360-00 module be replaced while the controller rack is powered?

A: Rack power must be de-energized before removing or inserting the CPU module to prevent backplane bus errors and hardware damage.

Field Installation Guidelines

1. Verify that incoming cabinet 24 VDC power is isolated before inserting the CPU module into the rack.
2. Align the module circuit board with the designated central CPU slot guide rails in the HC900 controller rack.
3. Slide the module firmly into the slot until backplane connectors mate fully with the rear header.
4. Fasten top and bottom mechanical retaining screws to ensure proper frame ground continuity and stability against vibration.
