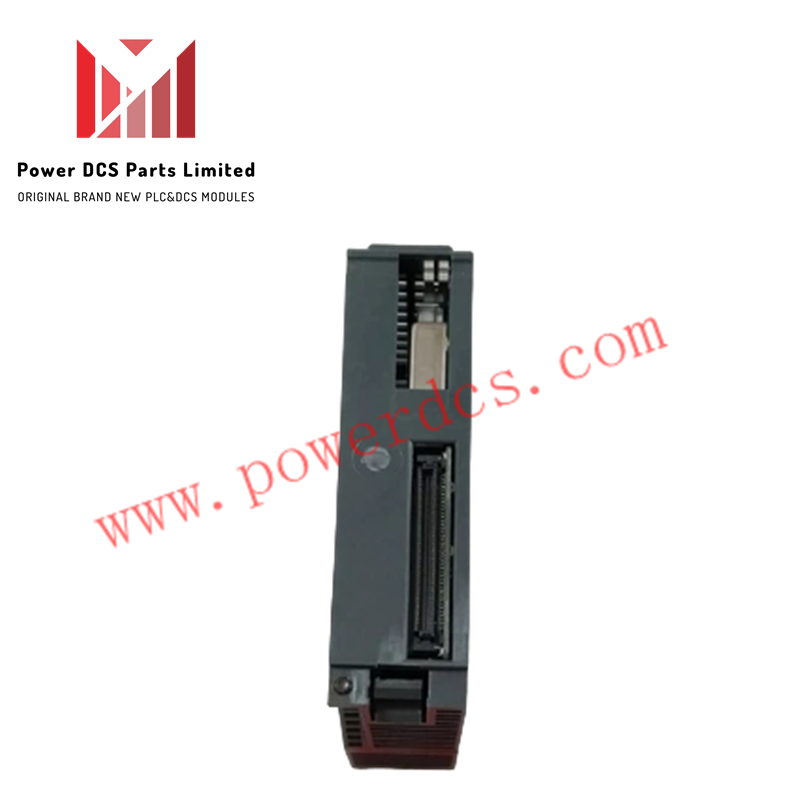

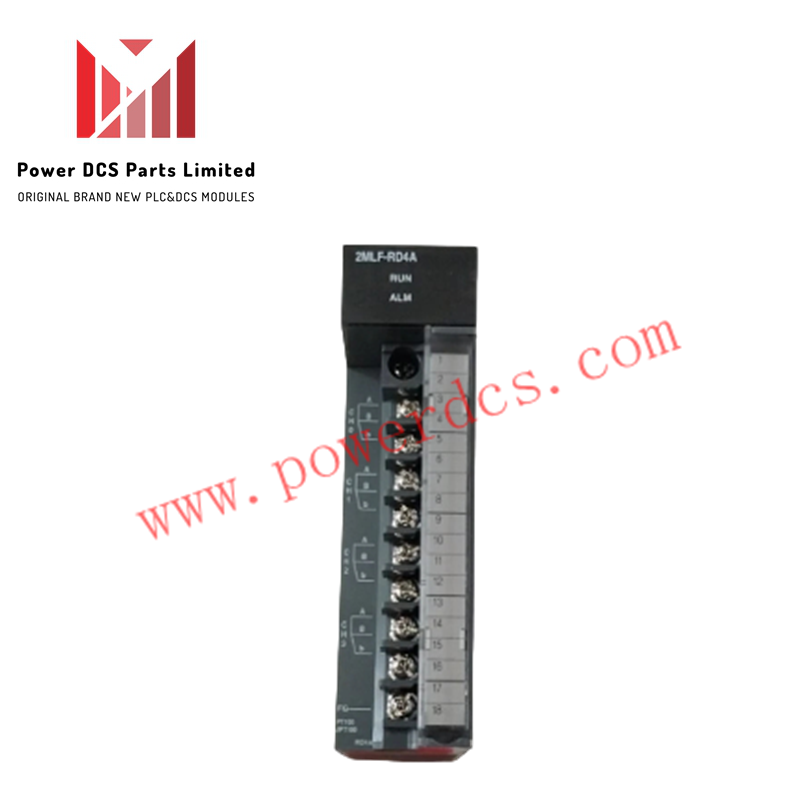

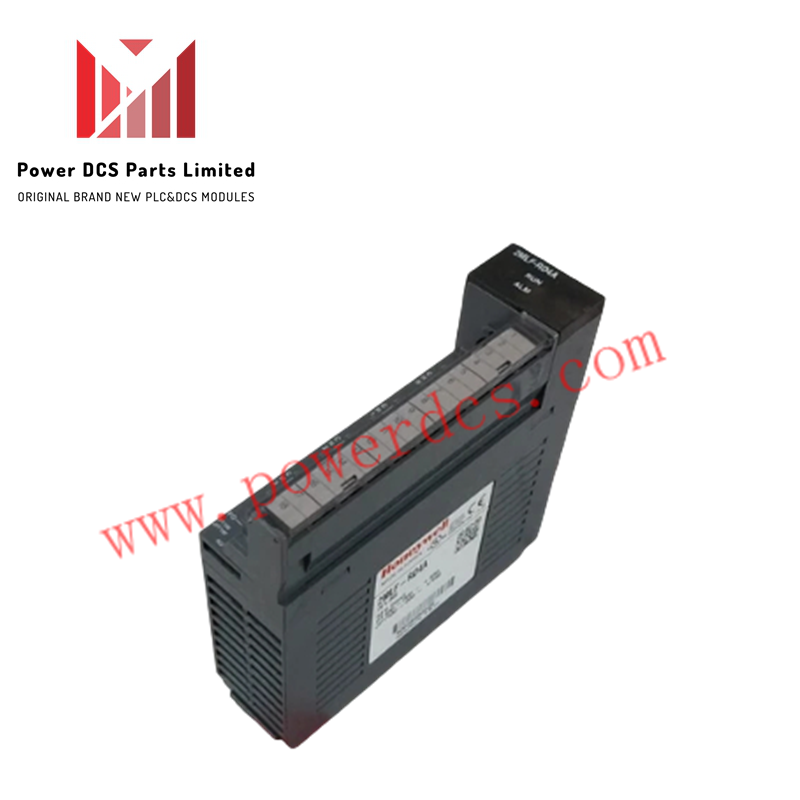

Honeywell 2MLF-RD4A Resistance Temperature Detector Input Module

Specifications

  • Manufacturer: Honeywell

  • Product No.: 2MLF-RD4A

  • Condition： 10 Artículos en stock

  • Product Type: Resistance Temperature Detector Input Modules

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 2000g

  • Shipping port: Xiamen

  • Warranty: 12 months

Detalles de producto

Descripción

The Honeywell 2MLF-RD4A is a Resistance Temperature Detector (RTD) input module designed to monitor thermal signals across 4 channels. It provides a maximum conversion speed of 40 ms per channel and utilizes a 3-wire RTD wiring configuration. The module interfaces with field devices via an 18-point terminal block and draws 450 mA of current from the 5 V backplane supply.

Measurement Accuracy and Environmental Conditions

Measurement accuracy is rated at +/- 0.2% or less at an ambient temperature of 25 deg C, and within +/- 0.3% across the operating range of 0 deg C to 55 deg C. The unit weighs 0.15 kg, with a total shipping weight of 2 kg.

Parameter Specification
Model 2MLF-RD4A
Brand Honeywell
Product Type Resistance Temperature Detector Input Modules
Number of Channels 4 channels
Wiring Method 3-wire configuration
Conversion Speed 40 ms per channel
Accuracy +/- 0.2% max at 25 deg C; +/- 0.3% max at 0 deg C to 55 deg C
Terminal Block 18-point terminal block
Current Consumption 450 mA at 5 V
Net Weight 0.15 kg
Shipping Weight 2 kg

Frequently Asked Questions

Q: How many input channels does the Honeywell 2MLF-RD4A module support?

A: The module supports 4 RTD input channels using a 3-wire connection method.

Q: What is the conversion speed per channel for this module?

A: It delivers a maximum conversion speed of 40 ms per channel.
