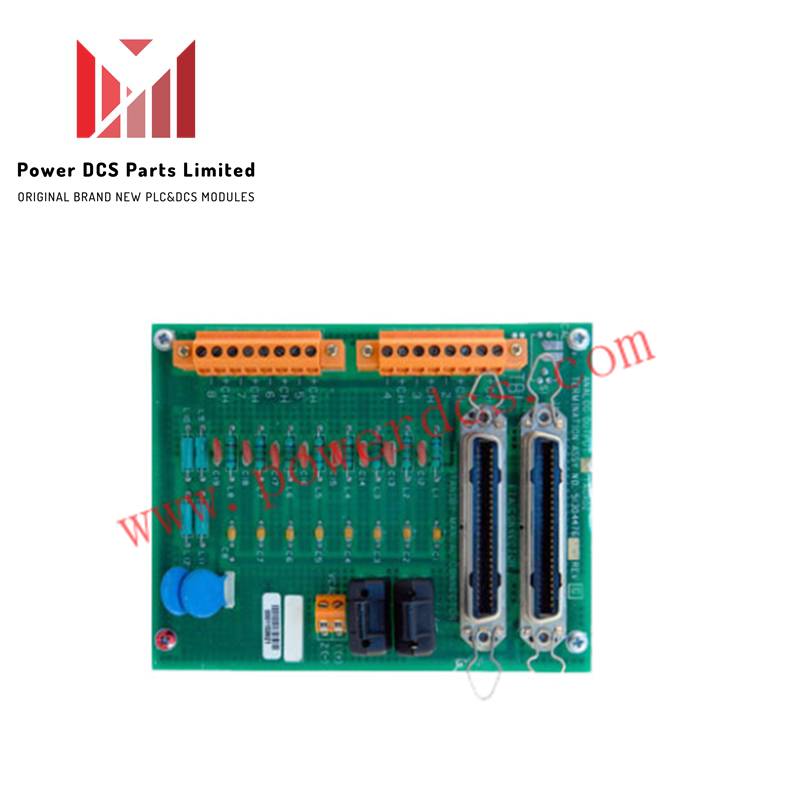

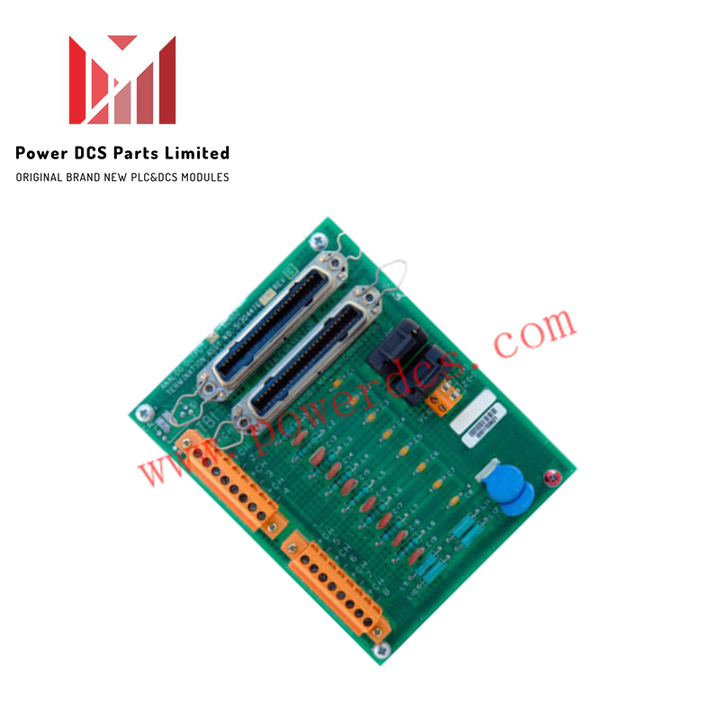

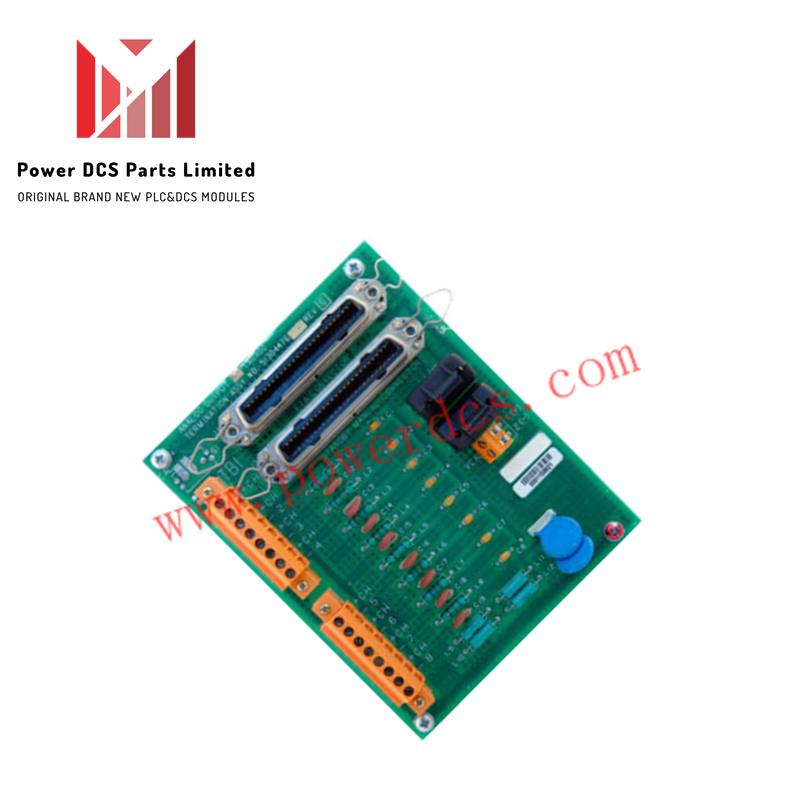

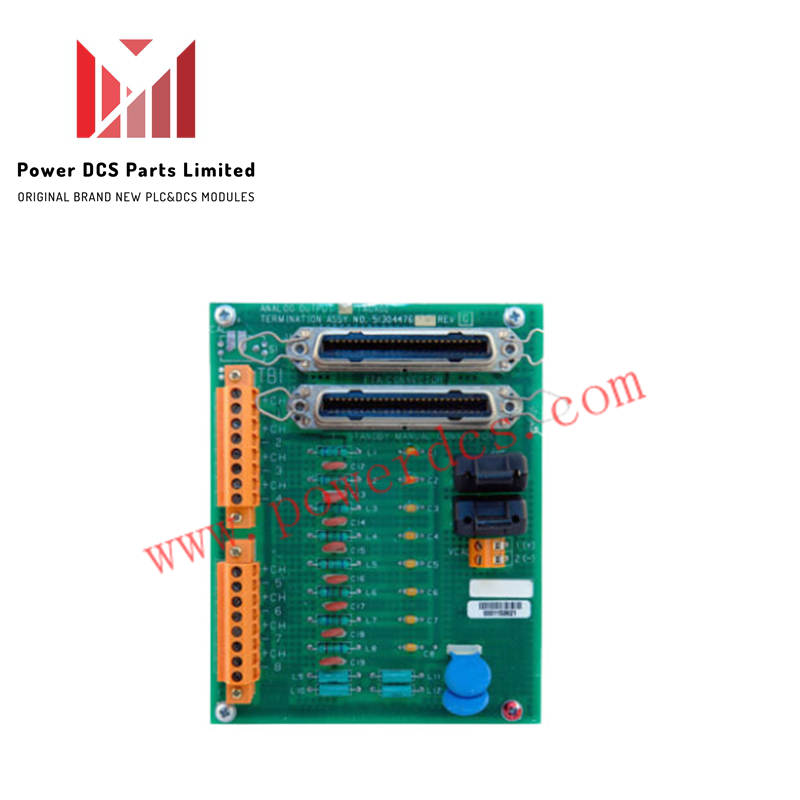

Honeywell 51304476-175 Analog Output Circuit Board

The Honeywell 51304476-175 is an 8-channel analog output circuit board designed for industrial process control platforms. It converts control signals into continuous analog outputs for field devices and features conformal coating for environmental protection.

Output Channels and Wiring Interfaces

The board provides 8 independent analog output channels that interface with field equipment via compression screw terminals. It is configured for non-redundant system architectures, where each channel directly drives designated control loops without parallel backup paths.

Physical Specifications and Conformance

Built as a Size A circuit board measuring 6 inches (152 mm), the module is CE-compliant and coated with a protective conformal layer against moisture and contaminants. The unit carries a shipping weight of 1.5 kg.

Technical Specifications

Frequently Asked Questions

Q: How many output channels does the 51304476-175 board support?

A: It provides 8 independent analog output channels.

Q: Does the 51304476-175 analog output board support redundant operations?

A: No, redundancy is not supported on this module.

Q: What type of wiring connections are used on this circuit board?

A: Field connections are made using compression terminals.
