Honeywell 8C-IP0102 51454362-275 Series 8 I/O Module

The Honeywell 8C-IP0102 51454362-275, also cataloged as the 8C-IP0102 I/O Module, operates as a dedicated hardware component for PROFIBUS Gateway Module (PGM) fieldbus communication and supervisory data routing within Honeywell Series 8 FTE network platforms.

Hardware Specifications

Process Control & Fieldbus Integration Characteristics

The 8C-IP0102 51454362-275 module establishes direct communication between field device networks and the Experion DCS backplane. Operating as a standard FTE node, the module supports PROFIBUS DP (V0) exchange along with DP (V1) messaging capabilities, functioning as a DP Master Class-2 device for Field Device Manager (FDM) software using vendor DTMs. Internal circuits feature channel-to-channel isolation and galvanic signal decoupling to ensure process measurement integrity while facilitating 4-20 mA HART loop protocol device asset management over DP networks.

Frequently Asked Questions

Q: How is the 8C-IP0102 51454362-275 module mounted within a control system cabinet?

A: The module mounts directly onto a standard Series 8 Input Output Termination Assembly (IOTA) located inside a standard Series 8 system enclosure.

Q: What are the primary power supply requirements for this module?

A: The unit operates on 24 VDC supplied via the standard Series 8 power distribution system, drawing a rated current of 430 mA.

Q: What PROFIBUS DP protocol variations does the 8C-IP0102 51454362-275 support?

A: The module supports PROFIBUS DP (V0) with standard and extended status bytes, as well as PROFIBUS DP (V1) Class-2 Master execution for FDM integration.

Field Installation Guidelines

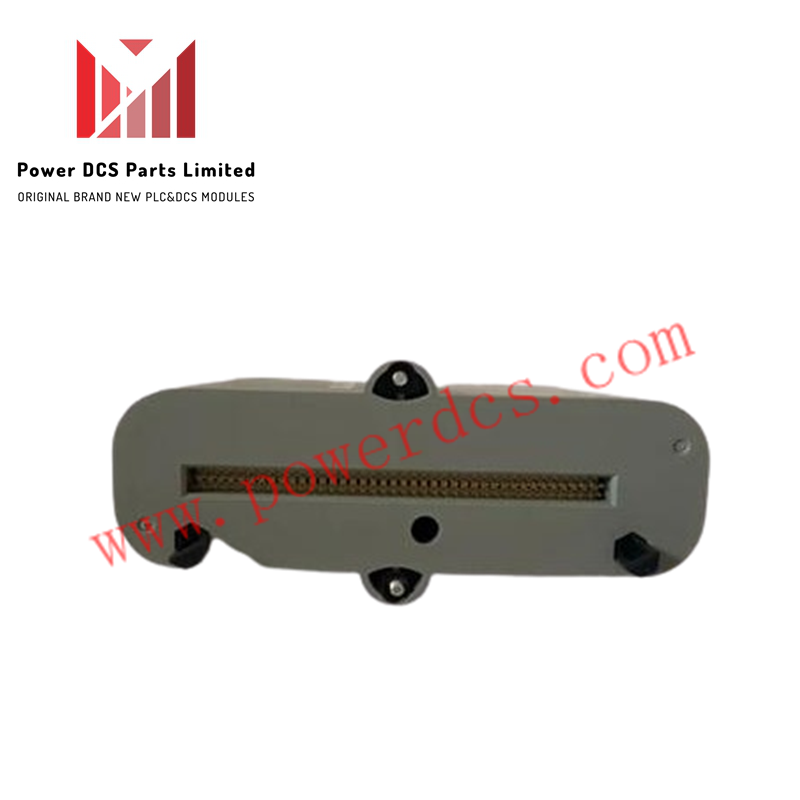

• IOTA Mounting Procedure: Align the rear header pins of the 8C-IP0102 51454362-275 with the targeted slot on the Series 8 IOTA block and press evenly until both retaining fasteners snap locked into position.
• Power Connection & Grounding: Verify that the Series 8 power system provides a regulated 24 VDC bus to the IOTA. Ensure the IOTA grounding bar connects to the main cabinet functional earth using a low-impedance grounding strap.
• Fieldbus Wiring & Shielding: Route PROFIBUS DP communication cables away from high-voltage power wiring inside the cabinet. Terminate cable shielding using proper grounding clamps directly at the enclosure cable entry bulkhead.
