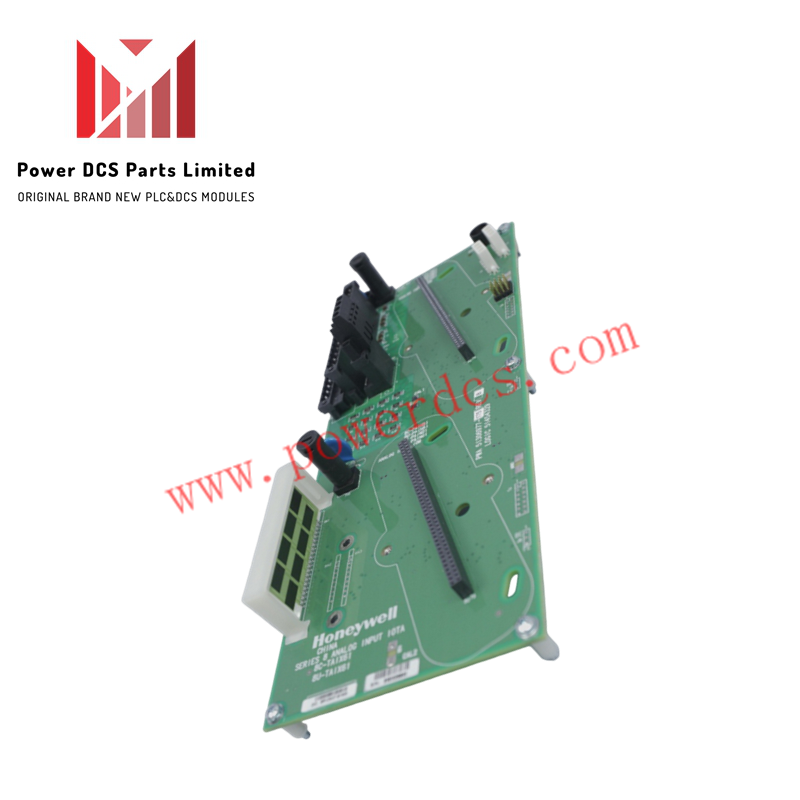

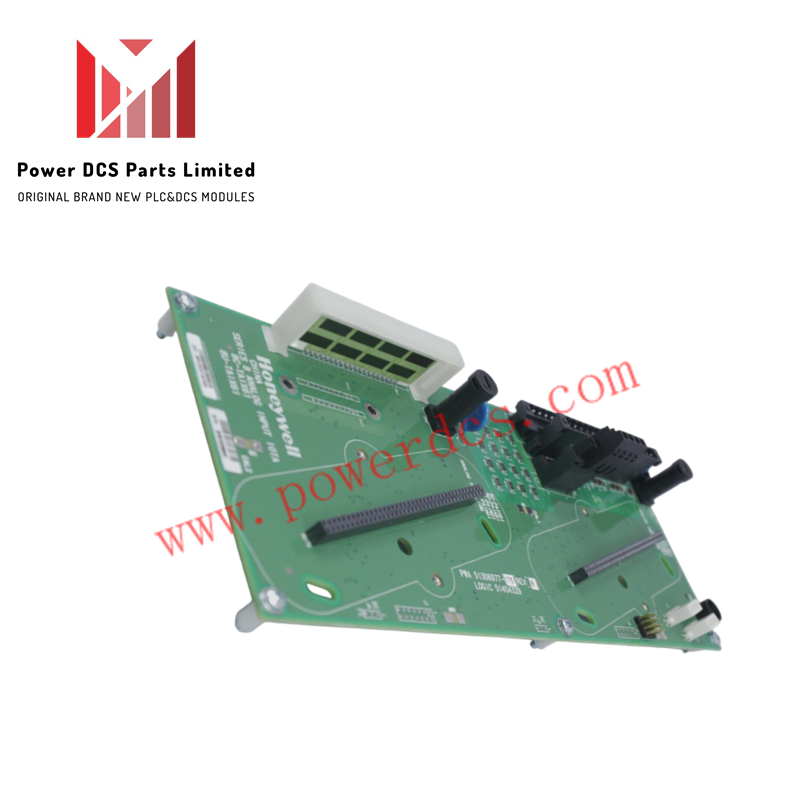

Honeywell 8C-TDOD61 51306973-175 Interface Module

The Honeywell 8C-TDOD61 51306973-175, also cataloged as the 8C-TDOD61 Interface Module, operates as a dedicated hardware component for discrete signal conditioning and backplane bus termination within Experion PKS Series 8 C300 controller networks.

Hardware Specifications

HART Protocol Integration and Channel-to-Channel Isolation

The Honeywell 8C-TDOD61 51306973-175 incorporates physical channel-to-channel isolation to prevent stray field currents and ground loops from compromising logic-level backplane communications. Integrated filtering circuitry supports secondary signal pass-through for 4-20 mA HART loop protocol communications without introducing signal phase lag or impedance degradation across active loop paths. High galvanic isolation barriers protect internal microcontrollers from high-voltage field-side surges.

Frequently Asked Questions

Q: Does the 8C-TDOD61 interface module support Removal and Insertion Under Power (RIUP)?

A: Yes, the module permits hot-swapping on active Series 8 carrier assemblies provided that backplane power rail distribution remains stabilized during physical removal.

Q: How does channel-to-channel isolation safeguard field terminal wiring on this assembly?

A: Physical isolation barriers block common-mode voltage spikes and ground potential differences between independent field wiring channels, preventing cross-channel noise propagation to the C300 controller.

Field Installation Guidelines

1. Verify that the Series 8 mounting rail is securely bonded to the main cabinet functional ground bar prior to slot insertion.
2. Route high-density field signal cables separately from 120/230 VAC power conduits to minimize electromagnetic noise coupling.
3. Clamp signal cable shields at a single point near cabinet entry to eliminate circulating ground loop currents.
4. Thread field enclosure conduit connections to achieve a minimum of 5 full threads engagement to maintain environmental ingress ratings.
