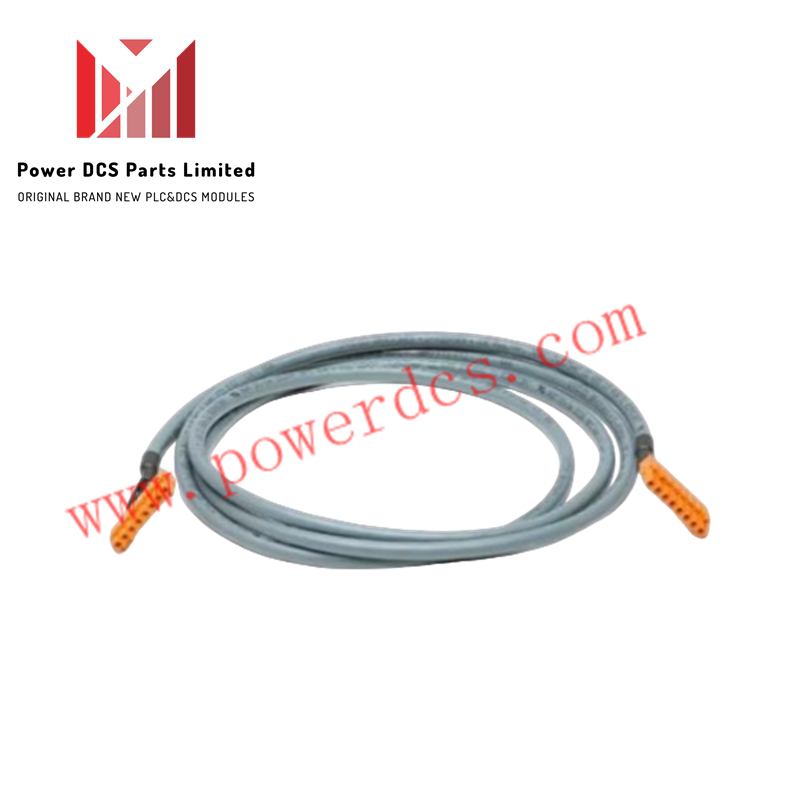

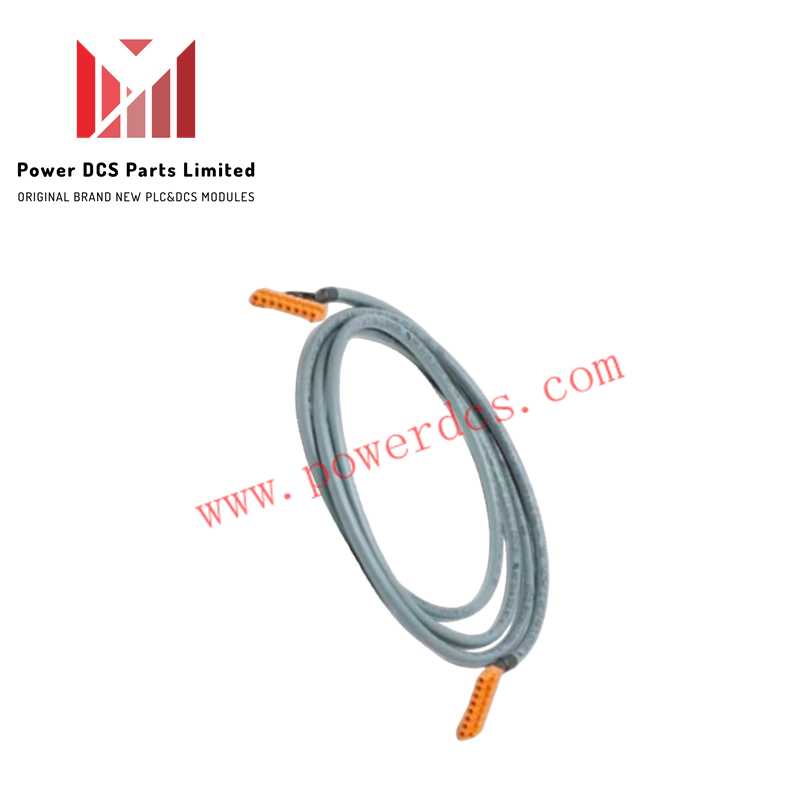

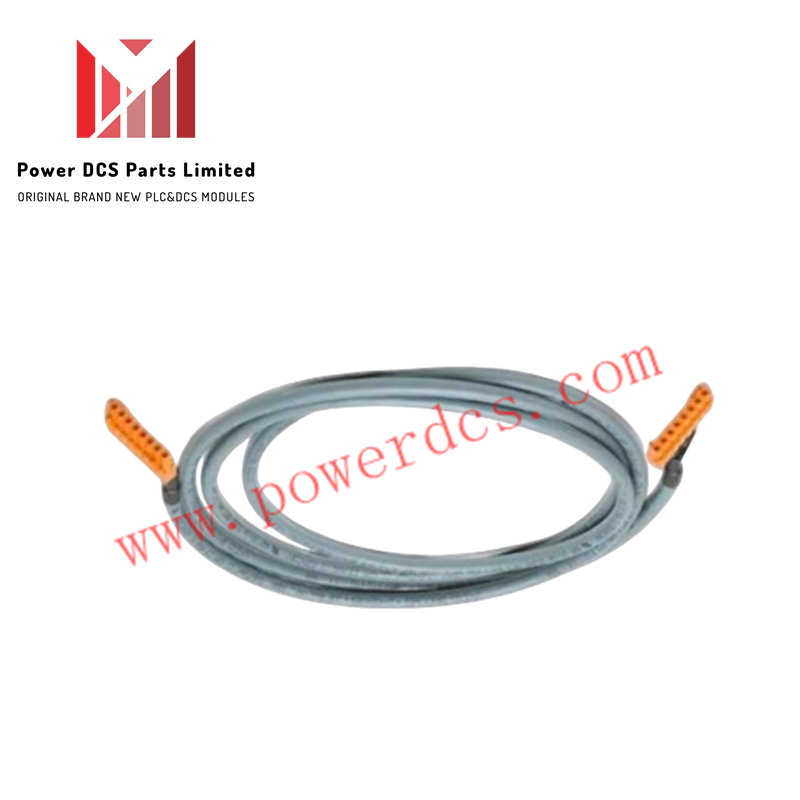

Honeywell FS-PDC-IOR05 Power Distribution Cable

The Honeywell FS-PDC-IOR05, also cataloged as the FS-PDC-IOR05 Power Distribution Cable, operates as a dedicated hardware component for 24 VDC power routing to I/O modules within Honeywell FSC Safety Manager systems. It utilizes shielded multi-core copper conductors to execute power distribution across safety instrumented chassis racks.

Hardware Specifications

Process Control & DCS Signal Processing Characteristics

The FS-PDC-IOR05 power cable features channel-to-channel isolation safeguards and heavy-duty multi-core copper conductor shielding to prevent electromagnetic noise from interfering with 4-20 mA HART loop protocol lines and discrete field signals. Operating within Honeywell FSC Safety Manager architecture, the cable delivers steady 24 VDC power up to a 1 A continuous load threshold. The factory-terminated plugs maintain low-resistance contact interfaces, minimizing voltage drop and preventing thermal localized resistance across safety rack power buses.

Frequently Asked Questions

Q: What continuous current rating governs the conductors in the FS-PDC-IOR05 cable?

A: The multi-core copper assembly is engineered to deliver up to 1 A continuous current at a nominal operating voltage of 24 VDC.

Q: How does the cable construction defend low-voltage power feeds against high-frequency electrical noise?

A: The cable incorporates dedicated foil and braid shielding layers around the copper conductors to suppress EMI and RFI generated by surrounding industrial equipment.

Q: Are custom field wiring terminations required during module installation?

A: No, the cable is equipped with factory-terminated Honeywell-specific plugs designed for direct plug-and-play insertion into compatible FSC module sockets.

Field Installation Guidelines

• Connector Alignment: Align the factory-terminated plug keyways with the FSC I/O module power socket before pushing straight into place to avoid bending terminal pins.
• Bend Radius & Cable Routing: Secure the cable along panel wire ducts, respecting minimum bend radius limits to preserve internal shielding foil integrity.
• Grounding Connection: Ensure shield ground drain leads are bonded directly to the cabinet main earth bar to shunt coupled high-frequency interference.
• Segregation Rules: Route 24 VDC power cabling in dedicated low-voltage wiring channels, keeping a minimum distance of 30 cm from AC power circuits.
