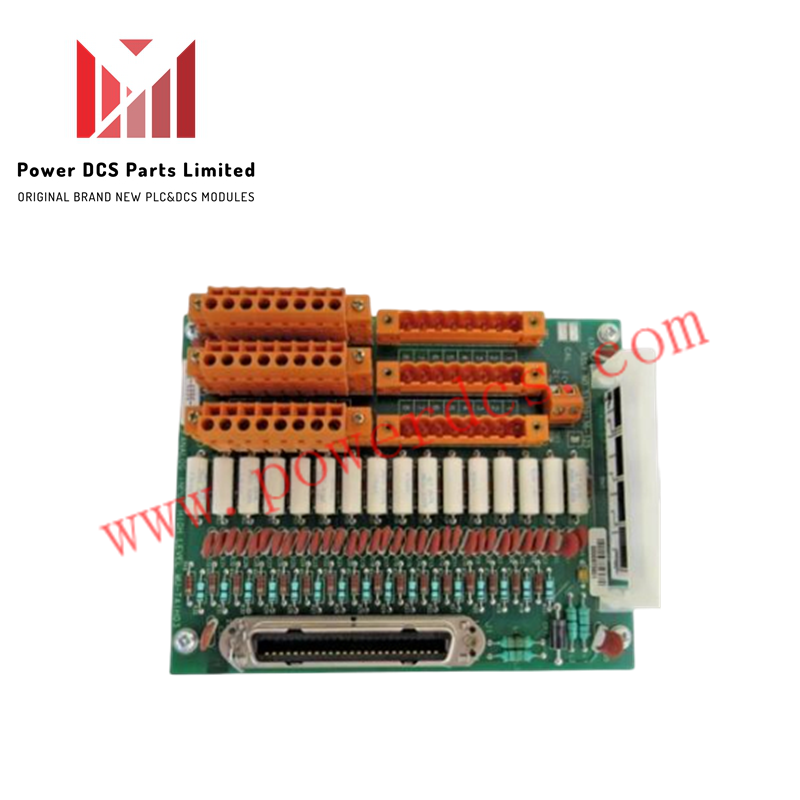

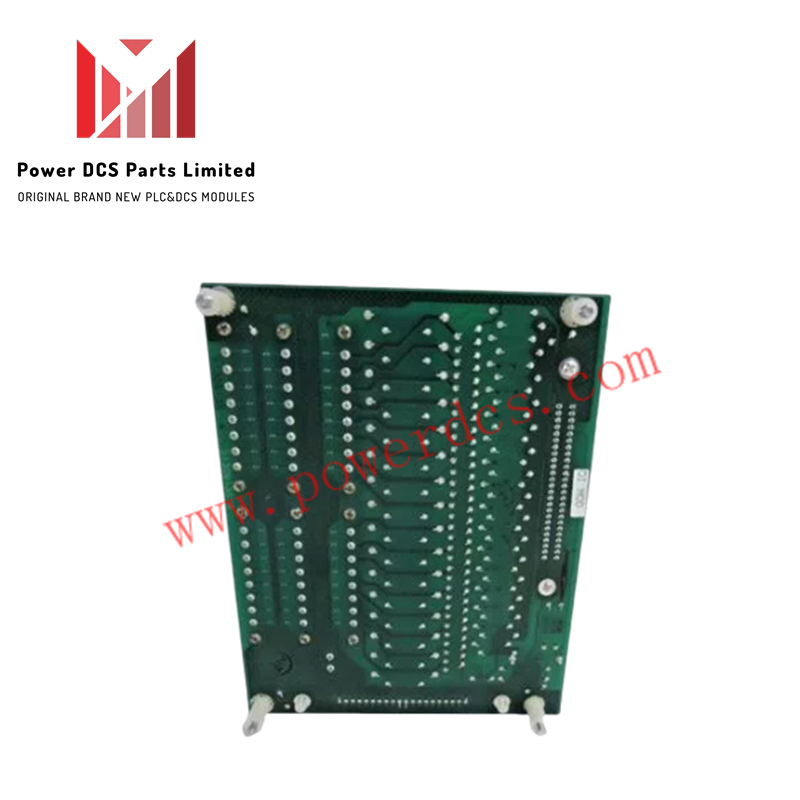

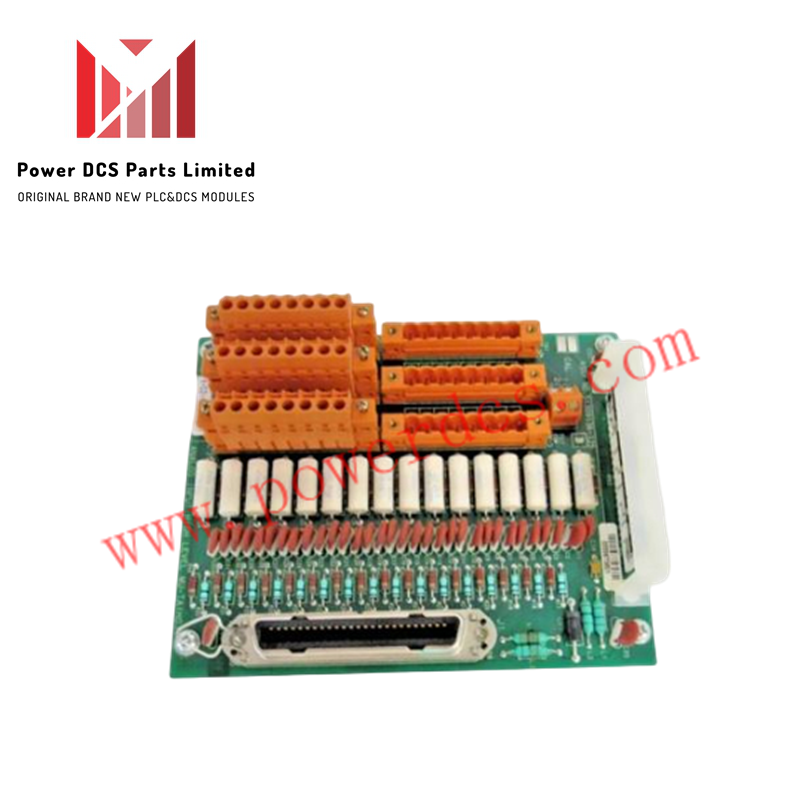

Honeywell MU-TAIH03 51309136-125 High Level Analog Input Module

The Honeywell 51309136-125, also cataloged as the MU-TAIH03 High Level Analog Input Module, operates as a dedicated hardware component for multi-channel field voltage and current telemetry acquisition within Honeywell DCS platforms. The assembly conditions incoming signals across 16 differential input channels, routing digitized measurements via 16-bit analog-to-digital conversion directly into central controller processing units.

Hardware Specifications

4-20 mA HART Loop Protocol & Channel-to-Channel Isolation

The MU-TAIH03 maintains cross-talk suppression of 60 dB from dc to 60 Hz across its 16 differential channels, isolating individual signal paths from adjacent circuit noise. A single-pole RC normal mode filter delivers a -3 dB cutoff at 1 Hz with a 32 dB normal mode rejection ratio at 60 Hz. Channel-to-channel isolation and input filtering allow standard 4-20 mA HART loop protocol field signals and 2-wire transmitter loops to interface with backplane logic without potential drift or ground loop errors.

Frequently Asked Questions

Q: What is the maximum voltage the MU-TAIH03 input channels can withstand without hardware damage?

A: The input channels sustain a maximum differential input voltage of +/- 30 V and a maximum input voltage of +/- 30 V referenced to common without physical damage.

Q: How does the A/D converter process incoming analog measurement data?

A: The integrated A/D converter operates with a 16-bit physical resolution, utilizing 14 active bits for digital data conversion to the backplane bus.

Field Installation Guidelines

1. Power down the chassis rack segment or follow DCS safety procedures before inserting or removing the module.
2. Route voltage and current signal cables using shielded twisted pairs to prevent external electromagnetic interference.
3. Connect signal cable shields to the master cabinet ground bus at a single reference point to preserve channel-to-channel isolation parameters.
4. Ensure the mounting space provides clear thermal clearance to maintain an operational temperature environment between 0 and 50 deg C.
