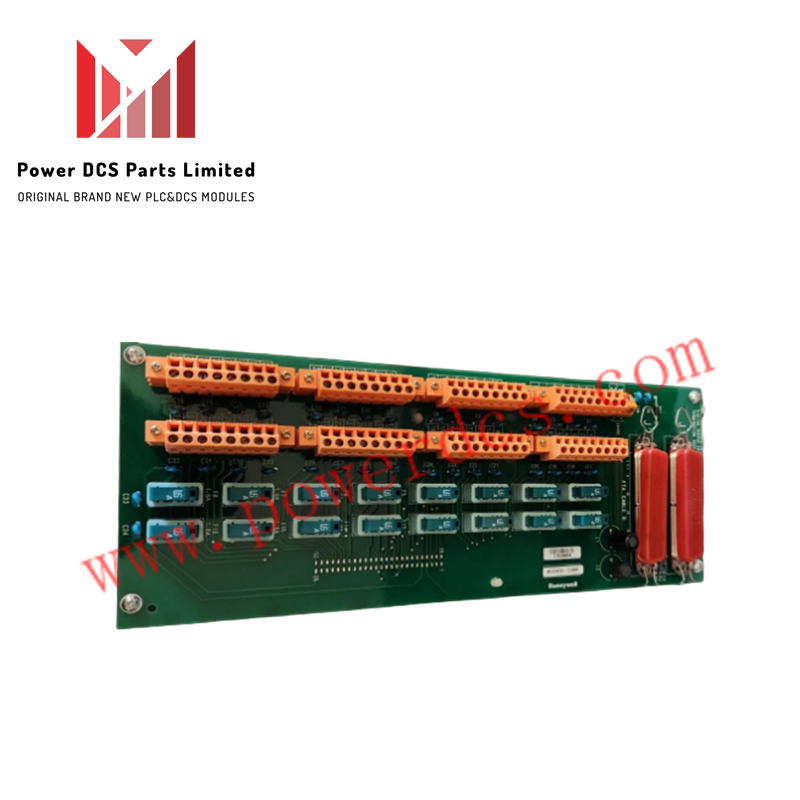

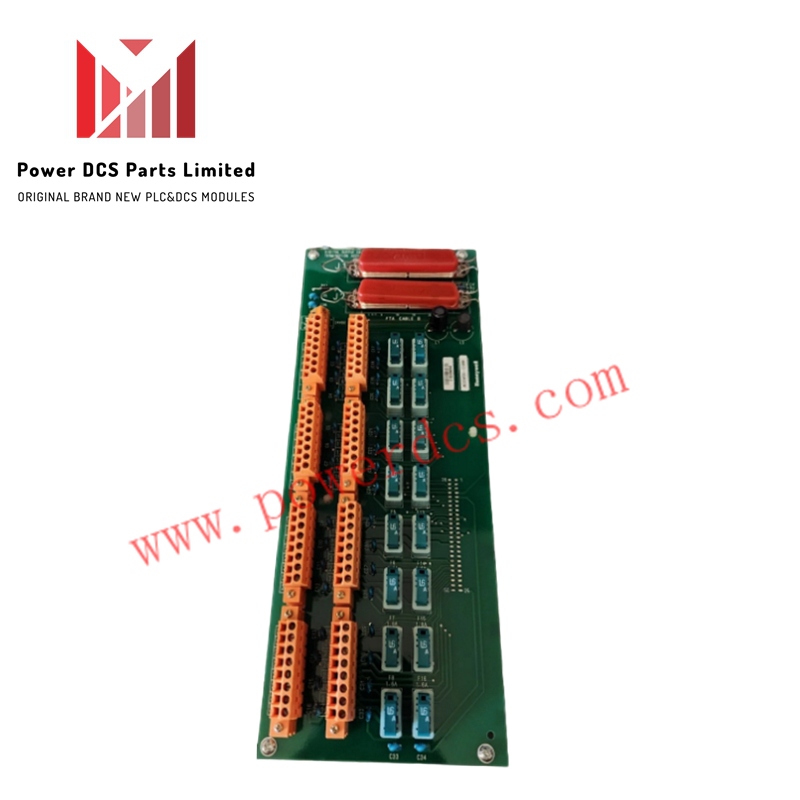

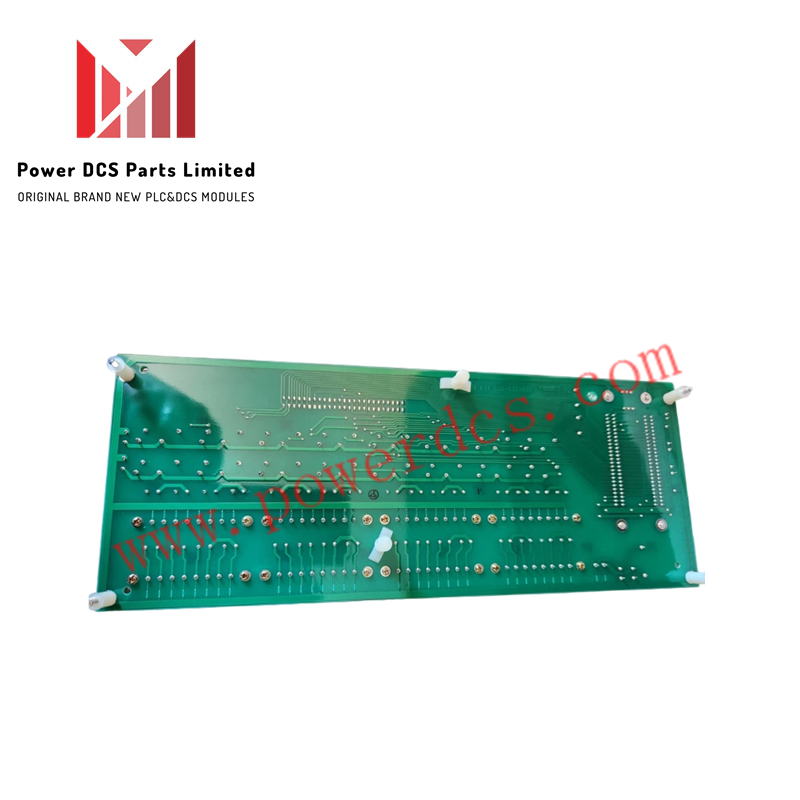

Honeywell MU-TDOY22 51204160-125 Digital Output FTA

Configured for discrete actuator command execution in Honeywell Series 8 and Experion PKS systems, the Honeywell 51204162-125 (MU-TDOY22 Digital Output FTA) provides direct physical/electrical execution.

Hardware Specifications

4-20 mA HART Loop Protocol & Channel Isolation

Engineered for field-level discrete signal switching, the assembly maintains galvanically separated field-to-logic isolation pathways. This physical architecture isolates 24 VDC output load switching noise from the internal logic backplane, preventing transient inductive kicks from corrupting adjacent analog channels running 4-20 mA HART loop protocol signals within shared distribution cabinets.

Frequently Asked Questions

Q: Can the MU-TDOY22 FTA assembly be replaced while the system is powered?

A: Yes, the assembly features a hot-swappable interface allowing physical disconnection and replacement without de-energizing the main system rack or halting active controller logic.

Q: What power supply voltage is required for driving field load devices through this assembly?

A: The terminal assembly is rated for a 24 VDC nominal field supply to drive connected digital output actuators and relay coils.

Q: How does field-to-logic isolation function during load short circuits?

A: Physical galvanic isolation barriers prevent field-side electrical shorts or high-voltage surge transients from crossing into the system logic bus processing electronics.

Field Installation Guidelines

• Shut off field load supply circuits or verify hazardous area conditions prior to landing field wiring onto the terminal blocks.
• Secure all field output conductors into the compression terminals, adhering to specified torque limits to avoid connector damage.
• Separate 24 VDC digital output cabling from high-voltage AC lines and sensitive low-level analog input wiring trays.
• Earth overall cable shields at a single dedicated ground point on the termination cabinet ground bar to eliminate circulating ground currents.
• Follow standard anti-static procedures, including electrostatic wrist straps, when handling the exposed termination assembly during rack insertion.
