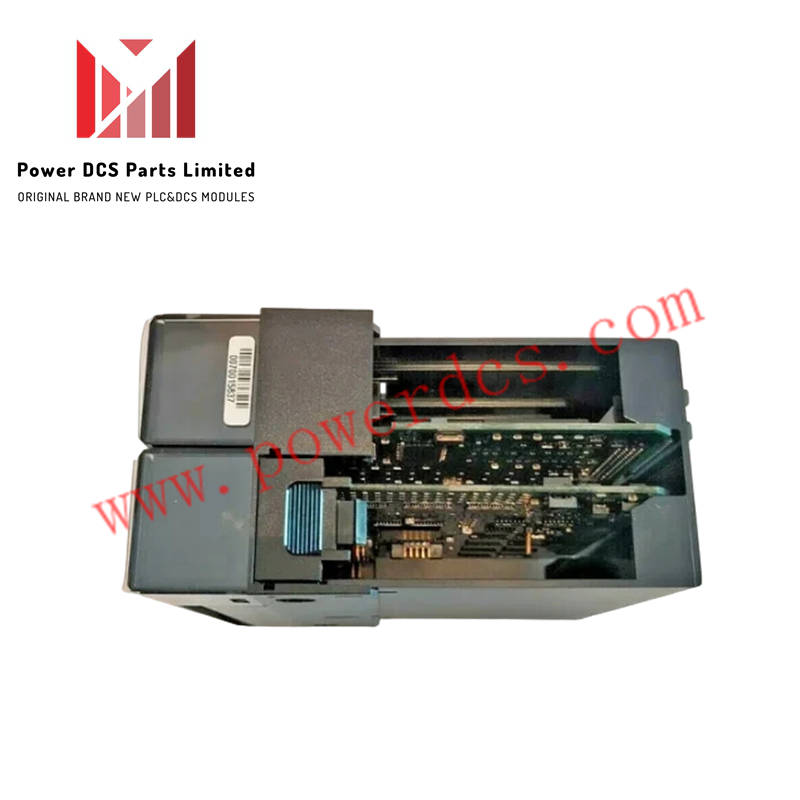

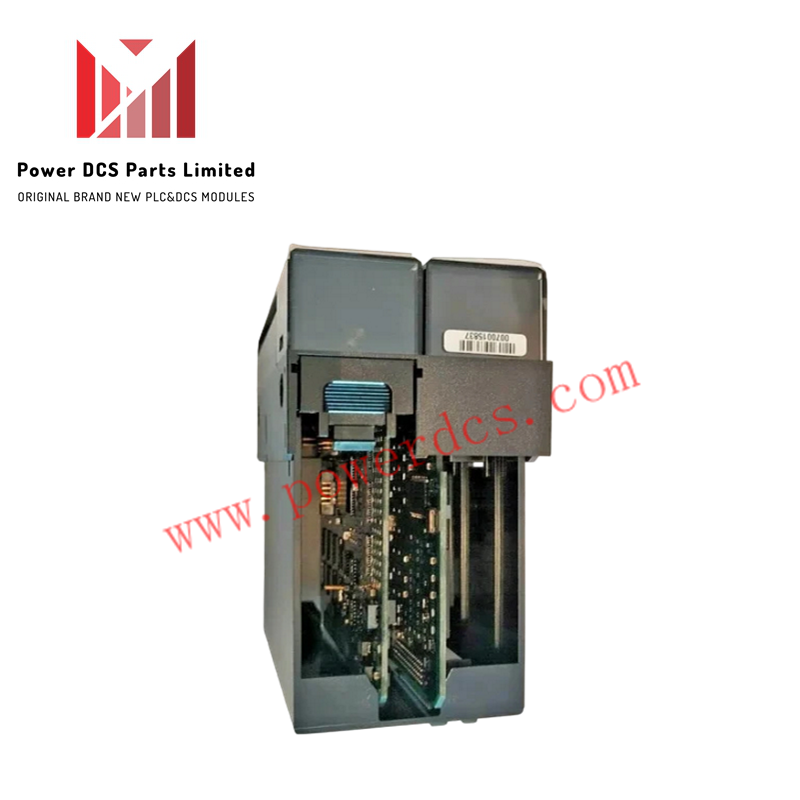

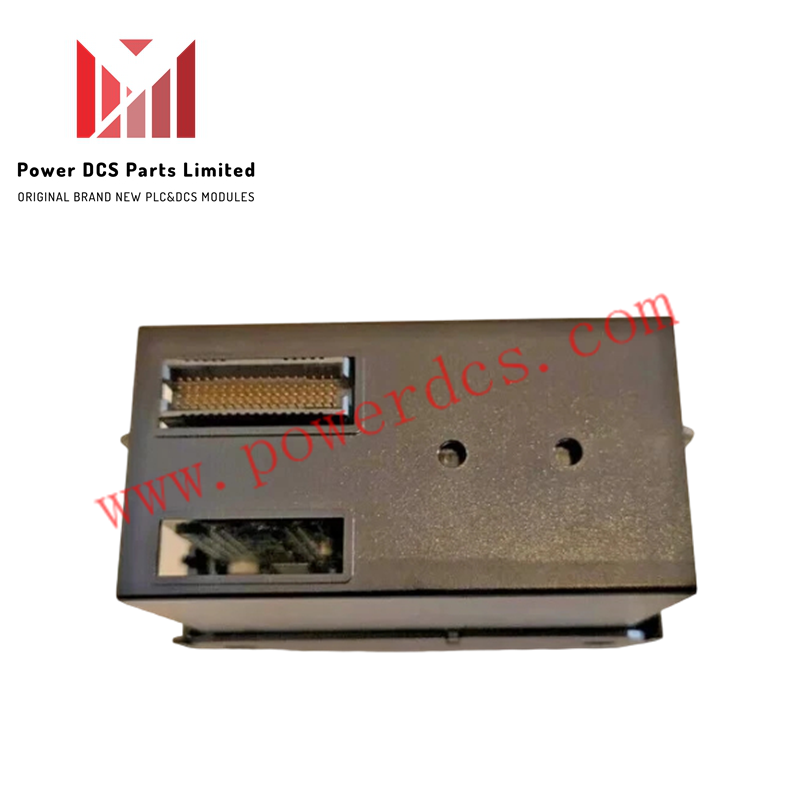

TK-PRS022 | Honeywell | Control Processor PCM C200E

The Honeywell TK-PRS022 (part number 51404305-575) is a control processor module engineered for Honeywell TDC 3000 and TPS control platforms. It delivers core logic execution, control sequencing, and communication management to maintain stable operation in distributed industrial environments.

Processing and System Communication

The module provides program and data memory resources dedicated to executing complex control strategies and interlocking logic. It interfaces directly with the Honeywell control-system bus and I/O communication channels to ensure efficient data exchange across system nodes.

Diagnostics and Power Integration

Integrated diagnostic functions continuously monitor module health and communication status to support system reliability. The unit receives operating power directly from the system backplane and is designed for straightforward chassis installation and maintenance replacement.

Technical Specifications

Frequently Asked Questions

Q: What is the primary function of the TK-PRS022 processor module?

A: It executes core control logic, sequencing, and communication management for Honeywell TDC and TPS architectures.

Q: Which control system platforms are compatible with this processor?

A: It is compatible with Honeywell TDC 3000 and TPS distributed control systems.

Q: How does the module receive its operating power?

A: It is powered by DC voltage supplied directly through the system backplane.
