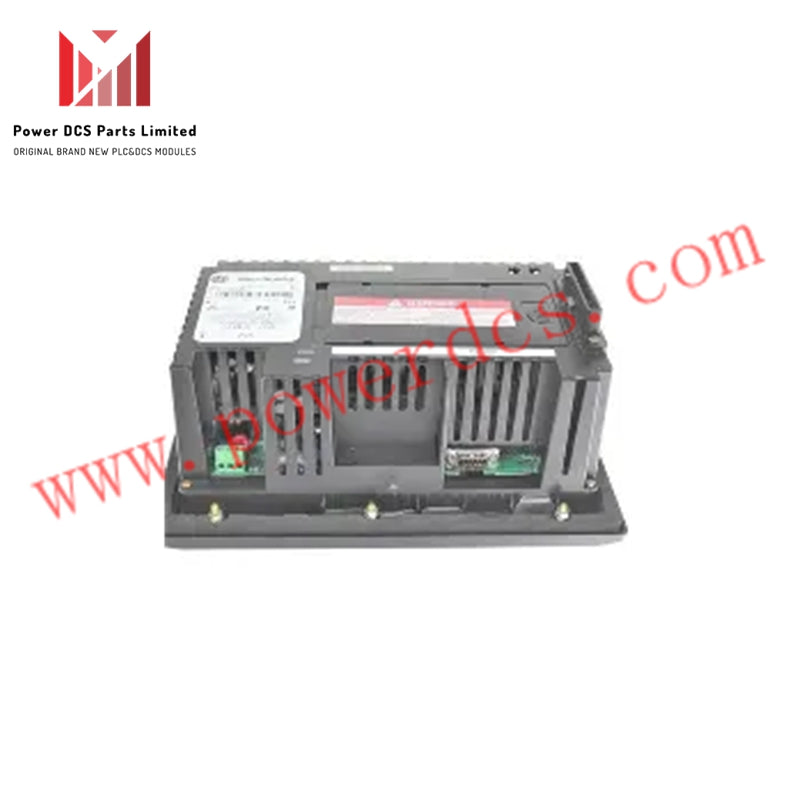

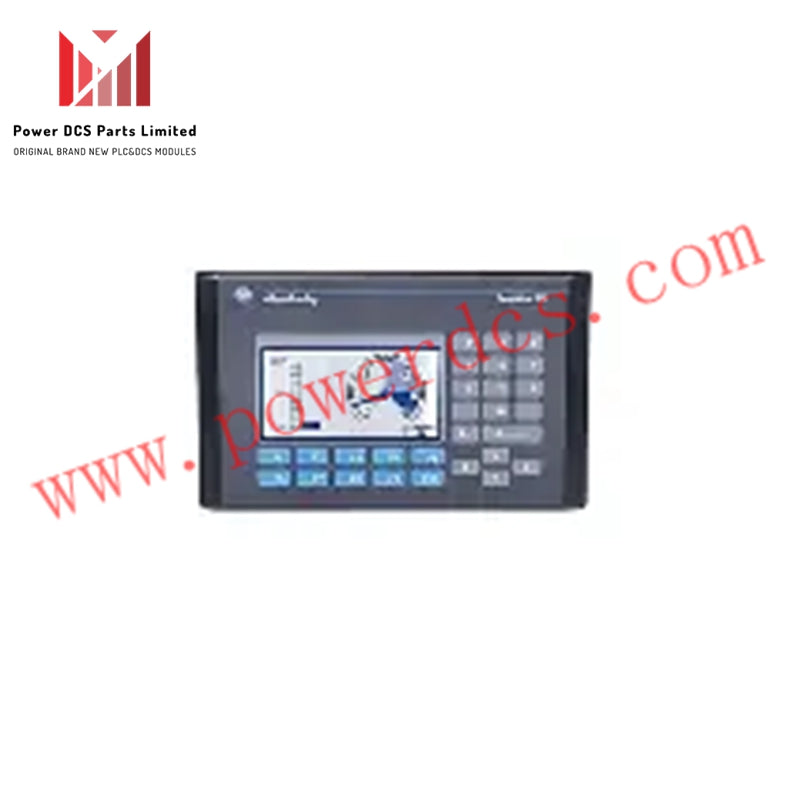

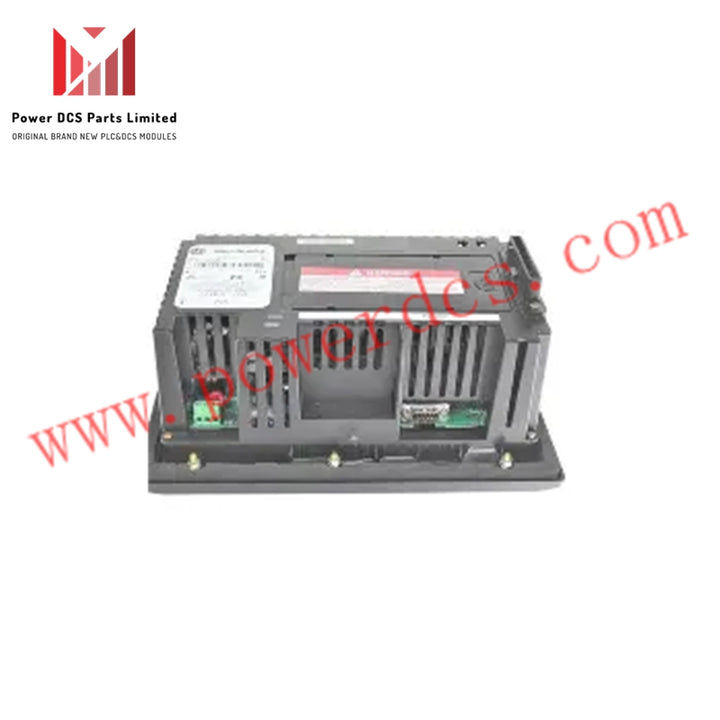

Allen-Bradley 2711-K5A15 PanelView 550 Standard Operator Terminal

Product Overview

The Allen-Bradley 2711-K5A15 is a compact PanelView 550 Standard Operator Terminal designed for efficient monitoring and control of industrial machines. Its 5.5-inch monochrome LCD provides a clear mimic display for real-time process visualization.

Equipped with ten function keys (F1–F10) and a keypad interface, the 2711-K5A15 enables fast operator input and precise control. ControlNet communication allows seamless integration with controllers and other partner devices, while the RS232 printer port supports alarm documentation and reporting.

This terminal operates on an external 85–264V AC supply with a frequency of 47–63 Hz. The device features a durable NEMA 12/13, 4X enclosure for indoor applications and supports IP54/IP65 protection levels, ensuring reliable performance in industrial environments.

The LED backlight offers 100,000 hours of life, and the internal memory includes 170 KB for application runtime and 240 KB of nonvolatile storage for objects, text, and bitmaps.

Technical Specifications

Key Features

• Compact Display: 5.5-inch monochrome LCD with LED backlight ensures visibility in varying light conditions.

• Operator-Friendly Keypad: Ten programmable function keys (F1–F10) facilitate rapid data input and control.

• Reliable Communication: ControlNet and RS232 ports provide seamless connectivity to PLCs and printers.

• Durable Construction: NEMA 12/13, 4X, IP54/IP65 enclosure protects against dust and water exposure.

• Extended Memory: Supports 170 KB application runtime and 240 KB nonvolatile storage for programs and data.

• Long Backlight Life: 100,000-hour LED backlight enhances longevity and reduces maintenance.

Applications

• Industrial Automation: Monitors and controls manufacturing processes efficiently.

• Process Control: Interfaces with PLCs for real-time data acquisition and process visualization.

• Alarm Reporting: RS232 printer port enables documentation of system alarms.

• Machine Control: Provides user input for operational tasks through keypad and function keys.

FAQs

Q1: What display type does the 2711-K5A15 use?
It uses a 5.5-inch monochrome transflective LCD with LED backlight.

Q2: How many function keys are available?
The terminal includes 10 function keys (F1–F10) for user-defined operations.

Q3: Which communication ports are supported?
Supports ControlNet for controller connectivity and RS232 for printer communication.

Q4: Are these terminals original and new?
Yes, all units are full original Allen-Bradley products, brand new.

Q5: How fast is the delivery?
Shipping occurs within 3 days to 2 weeks, depending on order size, via DHL, FedEx, or UPS.

Q6: Can defective units be returned?
Yes, we provide 30-day return support for any quality issues.
