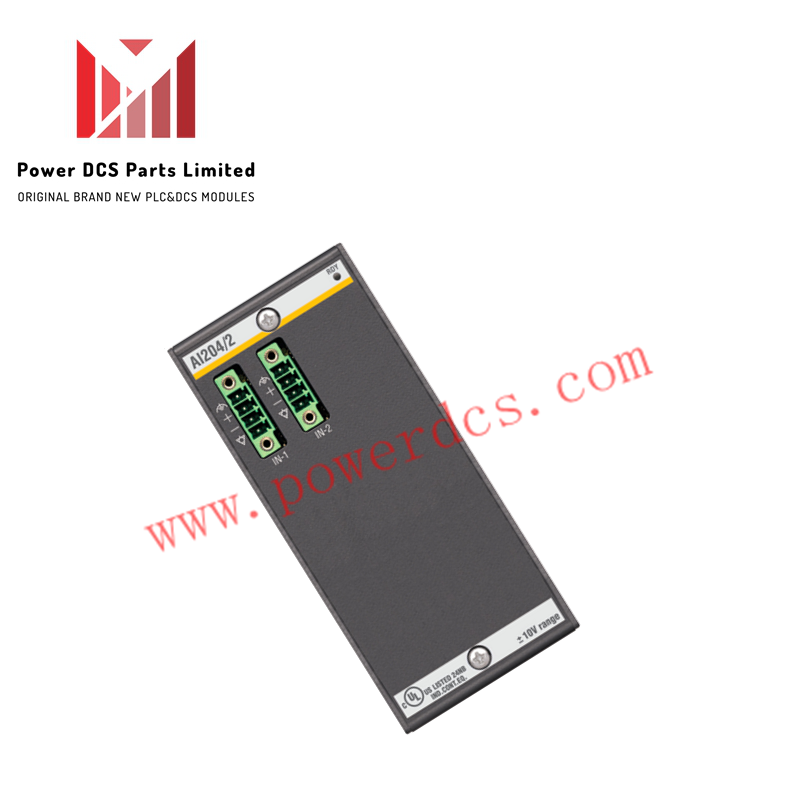

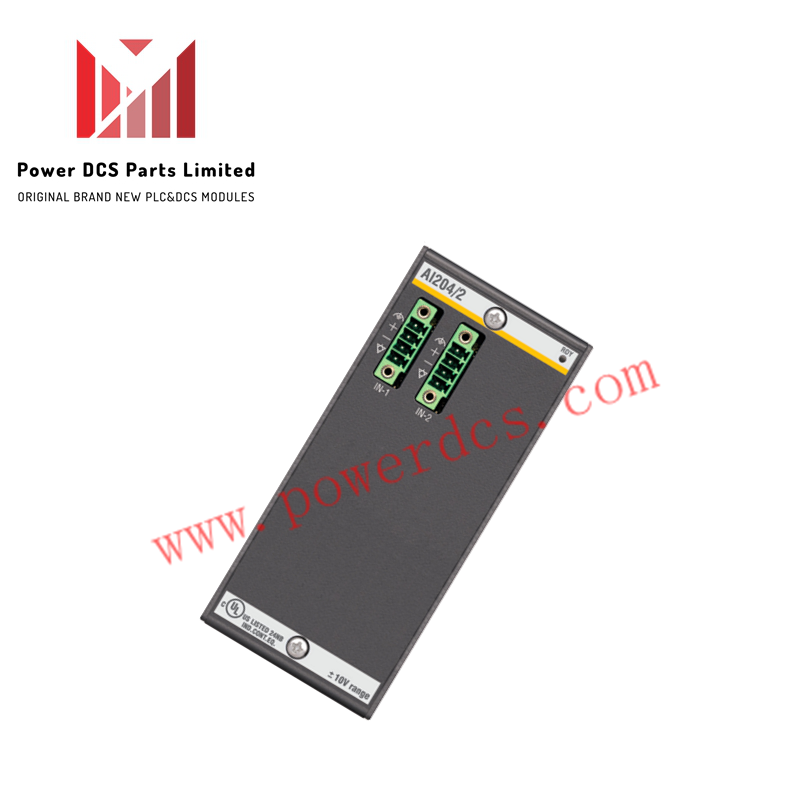

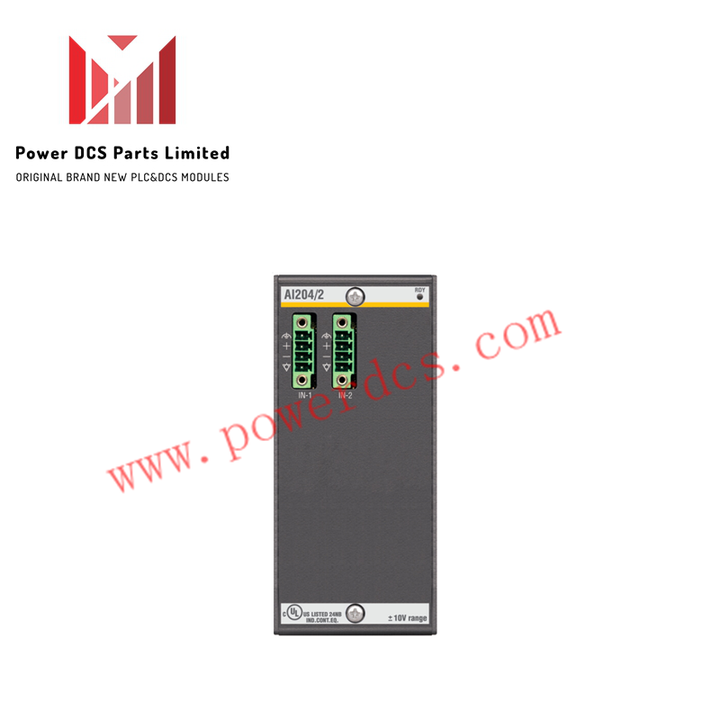

Bachmann AI204/2 Analog Input Module

Description

The Bachmann AI204/2 is a precision analog input module designed for industrial automation systems. It supports differential voltage inputs and delivers high-resolution signal acquisition for control applications.

Specifications

• Model: AI204/2

• Manufacturer: Bachmann electronic GmbH

• Input Channels: 4 differential analog inputs

• Input Voltage Range: ±10 V

• Input Impedance: >100 kΩ

• Resolution: 14 bits

• Sampling Cycle Time: 250 ms

• Input Filter: First-order low-pass

• Operating Voltage: 24 VDC

• Operating Temperature: -30°C to +60°C

• Storage Temperature: -40°C to +85°C

• Humidity (Operation): 5% to 95% without condensation

• Humidity (Storage): 5% to 95% with condensation

• Mounting: DIN rail compatible

• Country of Origin: Austria

• Certifications: CE compliant

Features

• High Signal Accuracy: 14-bit resolution ensures precise analog data acquisition

• Differential Input Design: Reduces noise and improves measurement stability

• Wide Voltage Range: Accepts ±10 V signals for versatile sensor compatibility

• Environmental Resilience: Operates reliably across extreme temperature and humidity conditions

• Compact Integration: Fits seamlessly into Bachmann M1 automation systems

• Low-Pass Filtering: Enhances signal clarity by reducing high-frequency noise

• Reliable Performance: Built for continuous operation in industrial control environments
