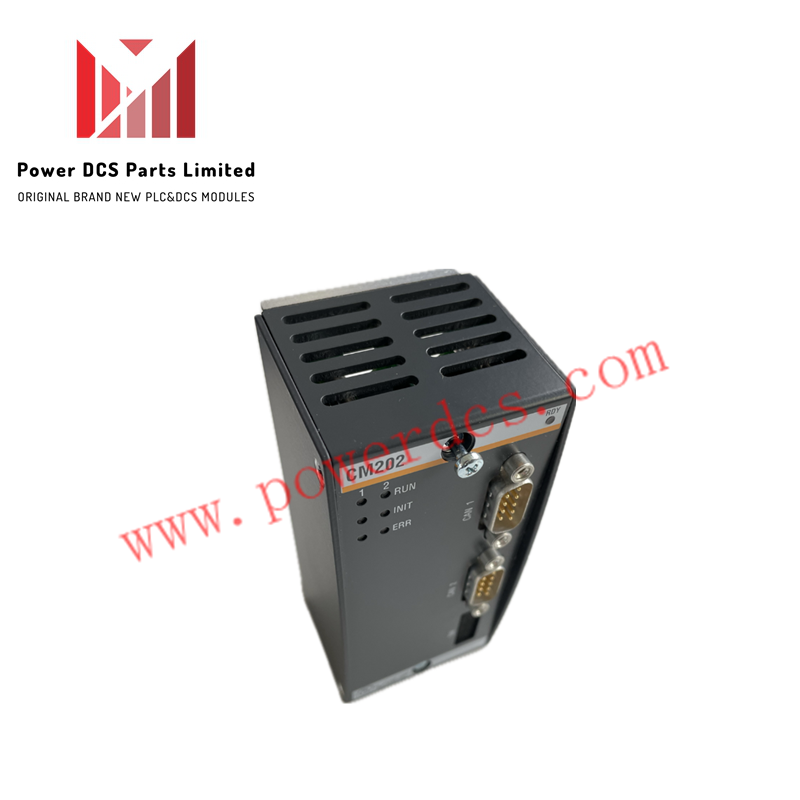

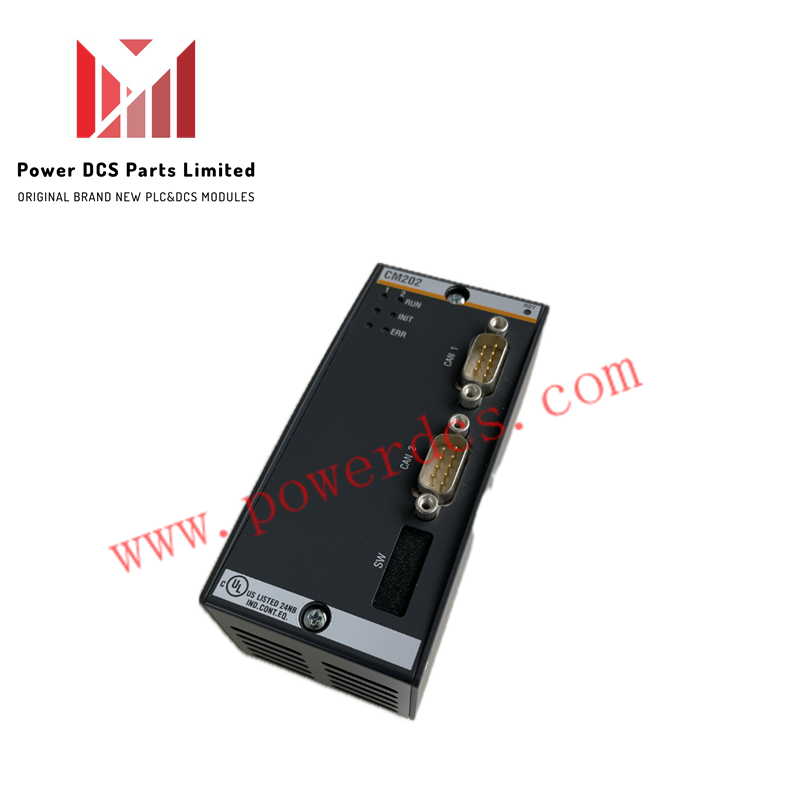

Bachmann CM202 CAN Interface Module

Description

The Bachmann CM202 is a versatile CAN interface module designed for robust communication in industrial automation systems. It supports multiple CAN protocols and operates two independent, isolated networks.

Specifications

• Model: CM202

• Manufacturer: Bachmann

• Supported Protocols: CANopen, J1939, NMEA 2000, proprietary protocols

• CAN Ports: 2 independent, galvanically isolated connections

• Network Configuration: Each port configurable as NMT master or slave

• Short-Circuit Protection: Integrated on both CAN channels

• Controller Compatibility: Up to 4 CM202 modules per M1 controller

• Connection Type: 2-wire CAN bus

• Installation: DIN rail mounting

• Certifications: CE compliant

• Country of Origin: Austria

Features

• Dual Network Operation: Runs two separate CAN networks simultaneously

• Protocol Flexibility: Supports standard and custom CAN-based communication protocols

• Galvanic Isolation: Enhances noise immunity and system stability

• Modular Expansion: Easily integrates into Bachmann M1 automation systems

• Software Configuration: CANopen setup via EDS files in SolutionCenter

• Reliable Performance: Designed for continuous operation in demanding environments

• Compact Design: Saves space in control cabinets while delivering high functionality
