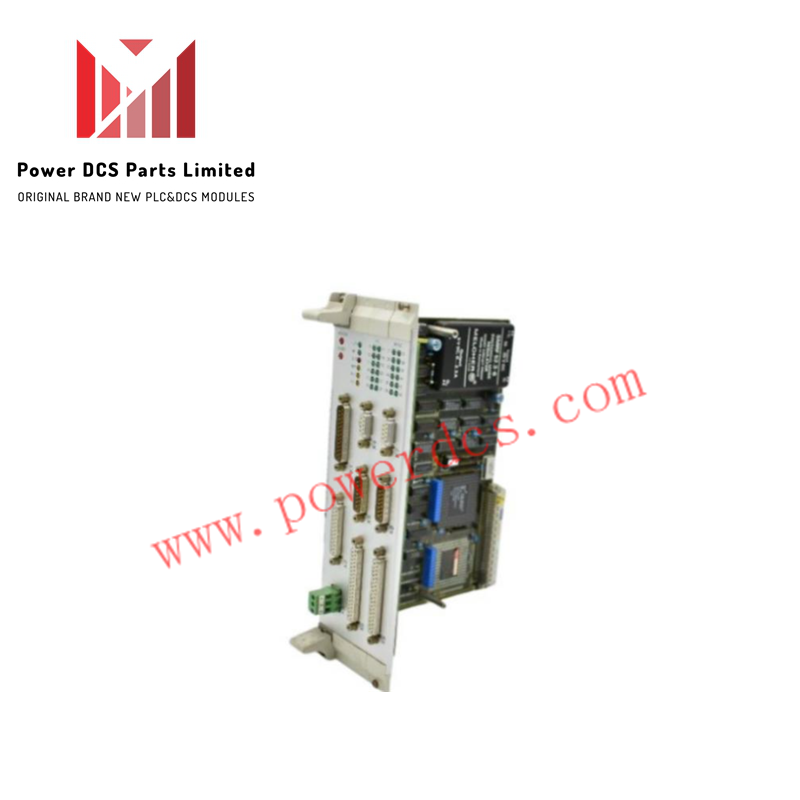

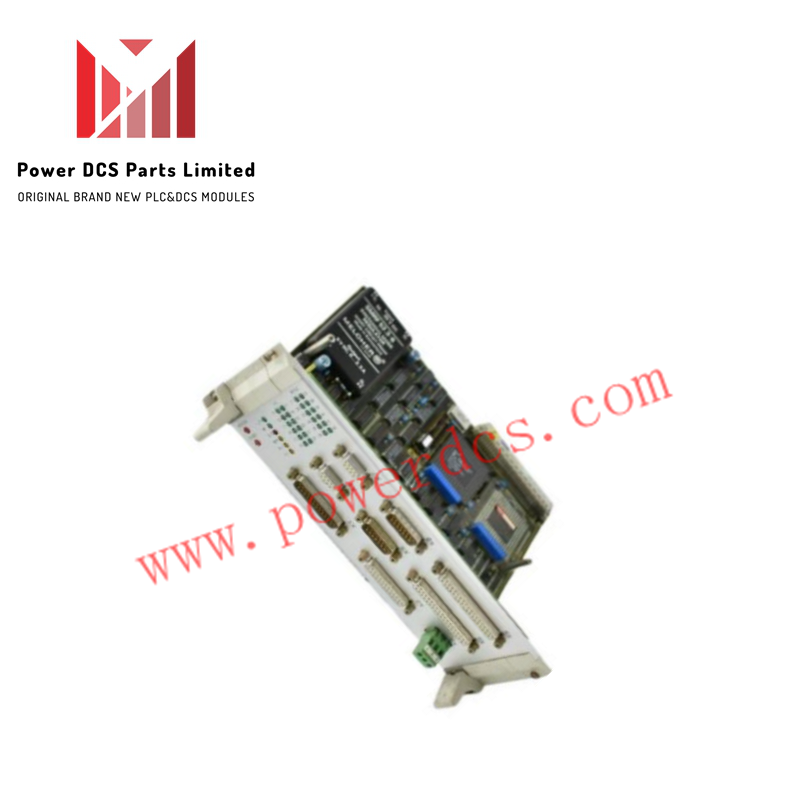

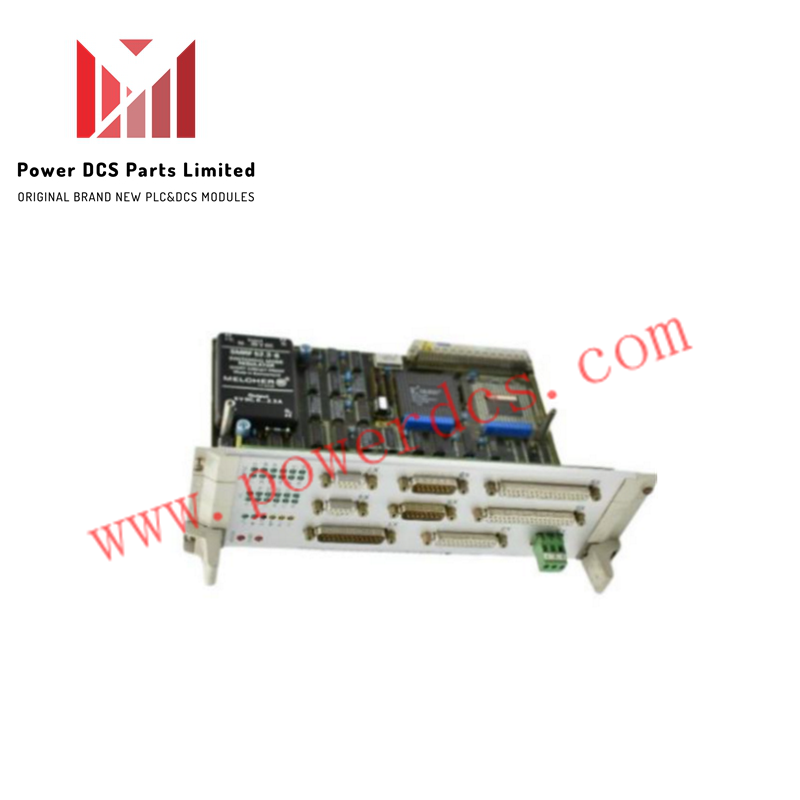

SIEMENS 6DD2920-0AL0 DIGITAL CONTROL LOGIC MODULE

Description

The Siemens 6DD2920-0AL0 is a digital control logic module from the SIMADYN D family. It is designed for trigger monitoring and relay control in industrial automation systems requiring precise digital signal processing.

Specifications

• Model: 6DD2920-0AL0

• Series: SIMADYN D

• Manufacturer: Siemens

• Input Voltage Range: 12–24 VDC

• Output Configuration: 2 SPDT relay contacts

• Monitoring Resolution: 1 ms

• Communication Interface: MODBUS RTU compatible (RS-485)

• Power Consumption: Max 50 mA @ 24 VDC

• Dimensions: 90 mm × 100 mm × 60 mm

• Weight: 0.3 kg

• Certifications: CE, RoHS

• Country of Origin: Germany

Features

• Dual Trigger Channels: Supports two independent digital signal paths for flexible control

• High-Speed Monitoring: 1 ms resolution ensures accurate event detection

• MODBUS RTU Support: Enables seamless integration with RS-485 networks

• Compact Form Factor: Fits easily into standard module carriers SAV21 and SAV22

• Industrial Reliability: Built for continuous operation in demanding environments

• Easy Installation: Simplifies wiring and setup with user-friendly interface
