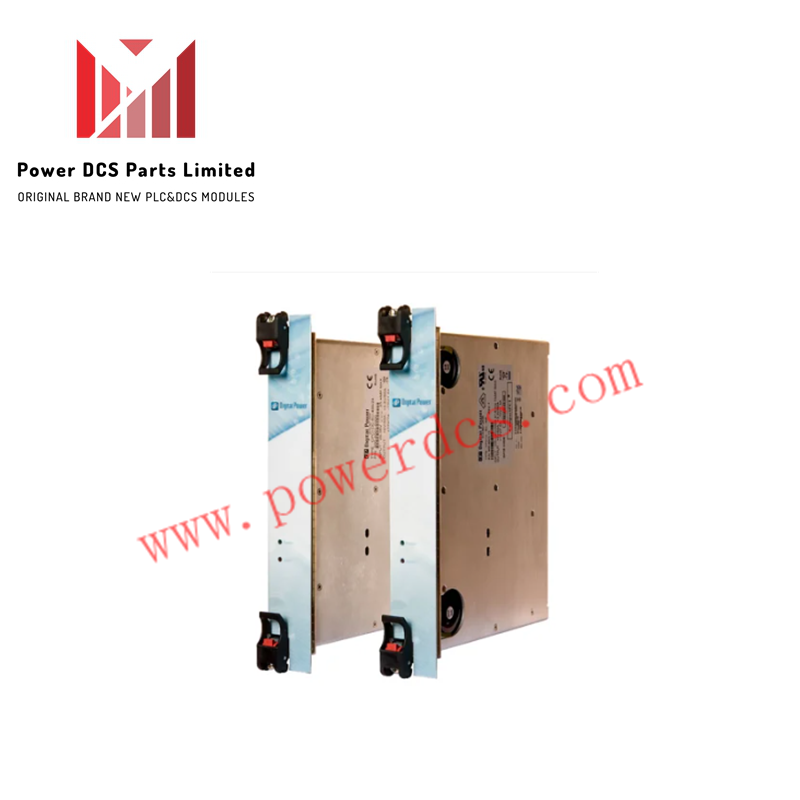

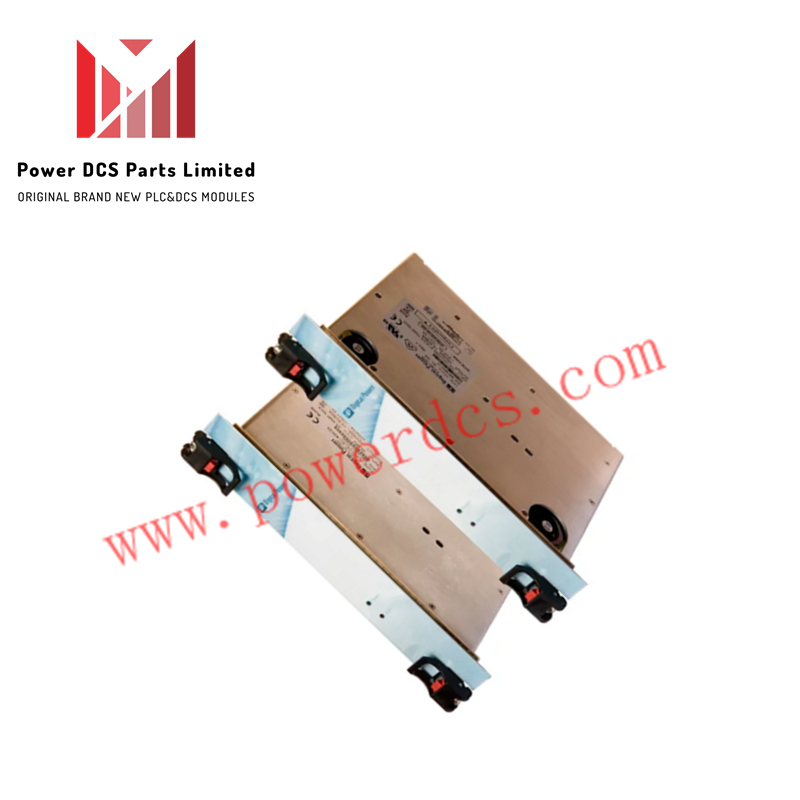

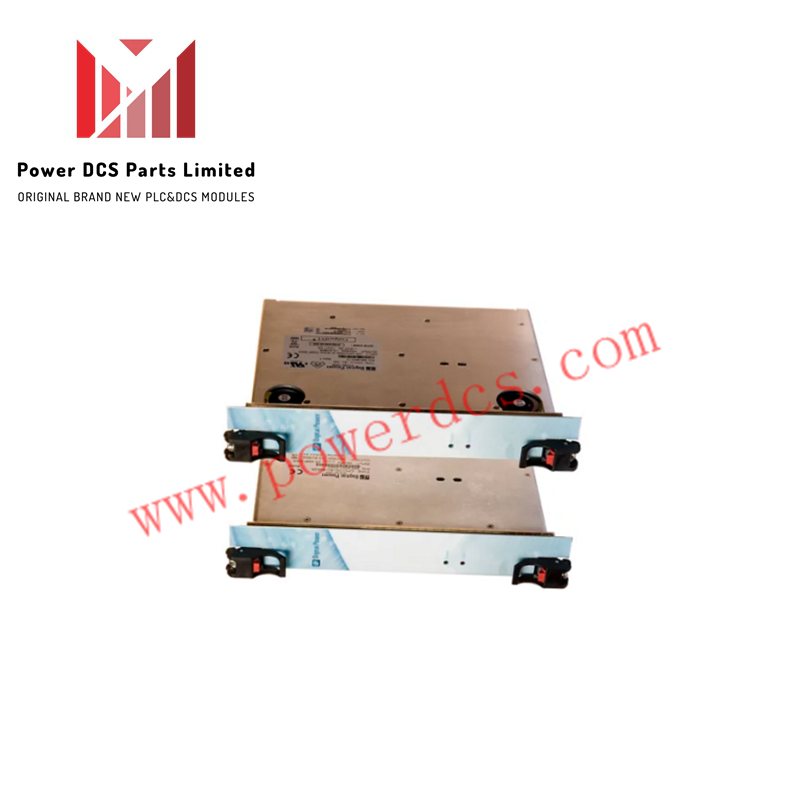

DP CPCIAC-6U-500 Power Supply Modules

Description

The DP CPCIAC-6U-500 is a high-efficiency 6U CompactPCI power supply module manufactured by Telkoor (sometimes labeled as DP or Teikoor). It is built to meet PICMG 2.11 standards and is ideal for rugged industrial, telecom, and embedded applications.

Specifications

• Model Number: CPCIAC-6U-500

• Manufacturer: Telkoor / DP

• Form Factor: CompactPCI 6U, 8HP width

• Input Voltage: 85–264 VAC, auto-ranging

• Output Power: Up to 500W

• Output Voltages: +5V, +3.3V, +12V, -12V DC

• Current Capacity: Up to 60A or 80A on +5V and +3.3V rails

• Efficiency: Typically >81%

• Cooling: Forced air or passive depending on chassis

• Power Factor Correction: Active PFC included

• Hot-Swap Capability: Yes, compliant with PICMG 2.11

• Redundancy Support: N+1 configuration with active current sharing

• Operating Temperature: -20°C to +55°C (derated up to 70°C)

• Dimensions: 233.35 mm × 160 mm × 80 mm

• Weight: Approx. 3.2 kg

• Origin: Israel

Features

• High Power Density: Delivers up to 500W in a compact 6U form factor

• Multi-Voltage Output: Supports all standard CompactPCI rail voltages

• Hot-Swappable Design: Enables module replacement without system shutdown

• N+1 Redundancy: Ensures uninterrupted operation with backup power module

• PICMG Compliance: Meets PICMG 2.11 for full system compatibility

• Active PFC: Improves power quality and reduces harmonic distortion

• Thermal Protection: Built-in safeguards against overheating and overload

• Industrial Reliability: Designed for telecom, automation, and defense systems

• Flexible Integration: Compatible with various CompactPCI chassis and backplanes

• Fast Delivery: Typically ships within 3–4 days from stock availability
