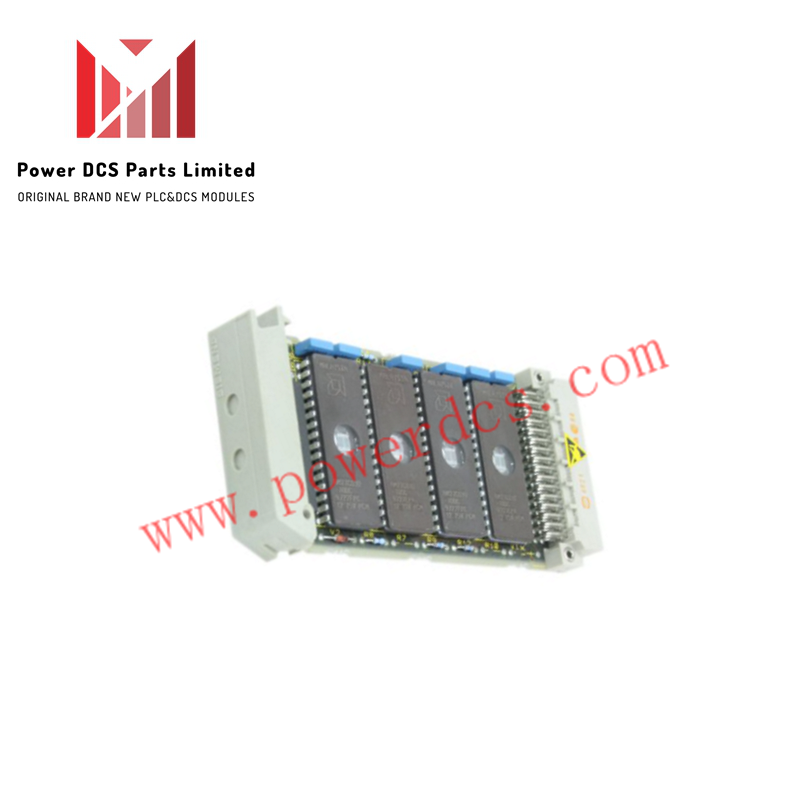

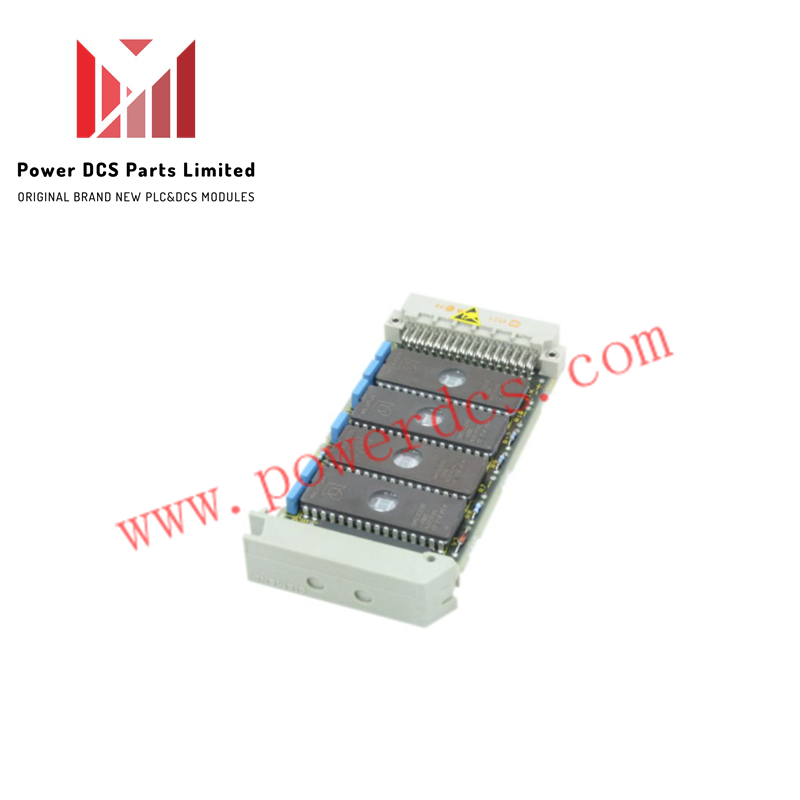

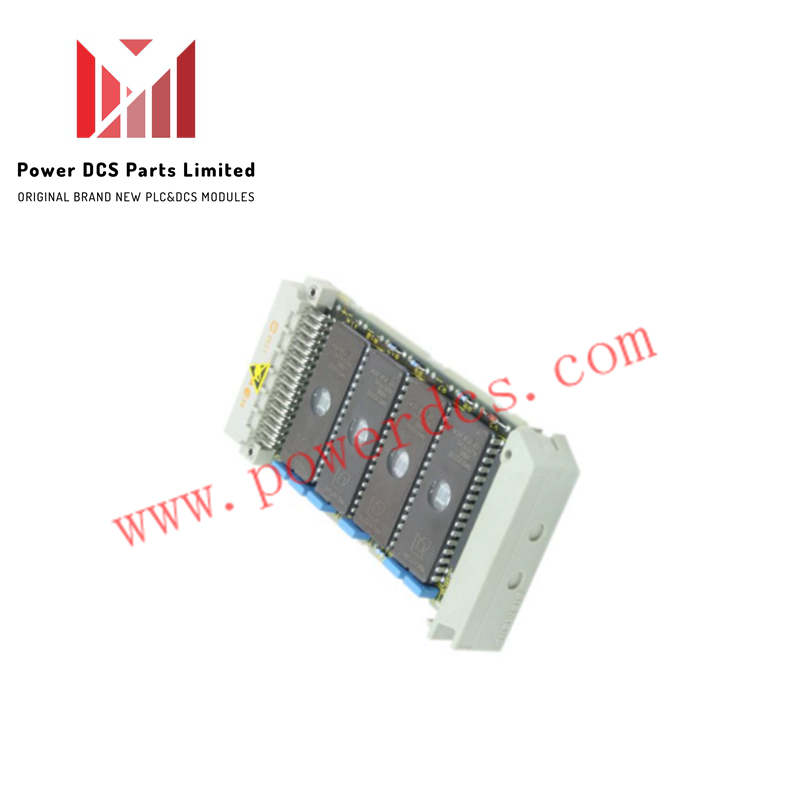

Siemens 6DD1610-0AG1 Memory Board

Description

The Siemens 6DD1610-0AG1 is a memory submodule designed for the SIMADYN D digital control system. It stores machine code in EPROMs and retains operating parameters in EEPROMs, ensuring stable performance in turbine and drive control applications.

Specifications

• Model: 6DD1610-0AG1

• Manufacturer: Siemens

• Series: SIMADYN D

• Module Type: Memory Board (MS41)

• Memory Capacity: 512KB EPROM, 2KB EEPROM

• Slot Configuration: One 28-pin slot, four 32-pin slots

• Dimensions: Width 6.30 cm, Height 11.80 cm, Depth 1.90 cm

• Weight: 0.03 kg

• Country of Origin: Germany

• Lifecycle Status: Active

• Application: Stores OS code and user-defined parameters

• Mounting: Modular rack integration

Features

• Dual Memory Architecture: EPROM stores system code; EEPROM retains modifiable parameters

• Flexible Slot Design: Supports one 28-pin and four 32-pin interfaces for versatile configuration

• Compact Form Factor: Slim dimensions allow easy integration into control racks

• Reliable Data Retention: EEPROM ensures persistent storage of controller settings

• Industrial-grade Durability: Built for long-term use in power generation and automation systems

• Seamless Integration: Fully compatible with Siemens SIMADYN D control architecture

• Lightweight Construction: Weighs only 0.03 kg, ideal for space-constrained environments
