10101/2/1 Honeywell FSC Fail-safe Digital Input Module
Specifications
Manufacturer: Honeywell
Product No.: 10101/2/1
Condition: 10 Items in Stock
Product Type: Digital Input Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months
Product details
Description

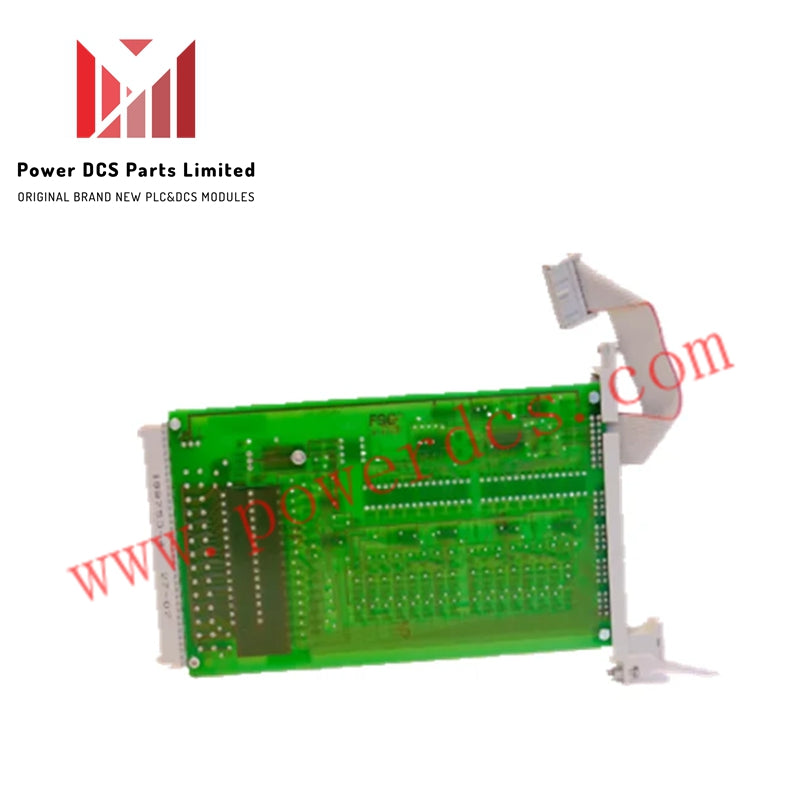

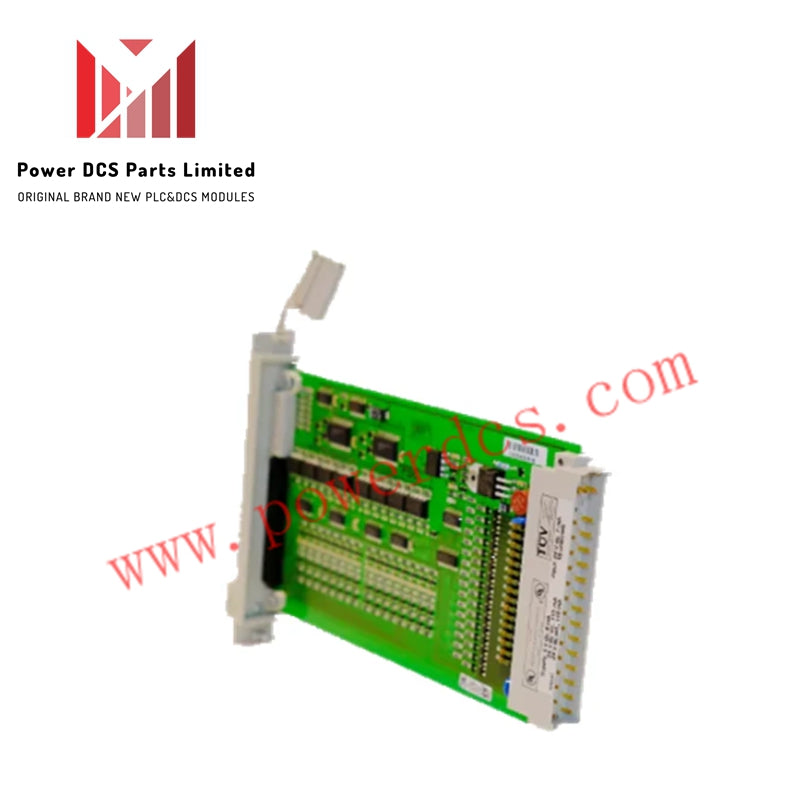

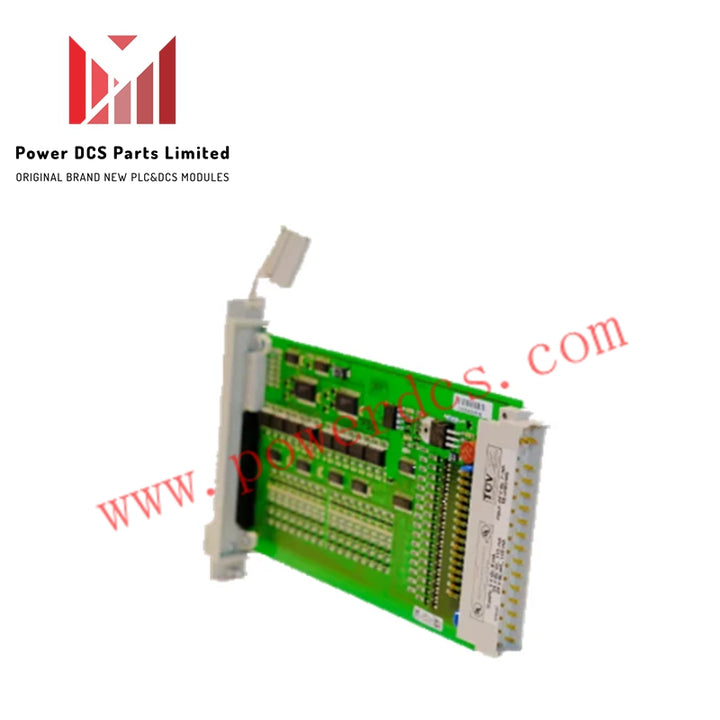

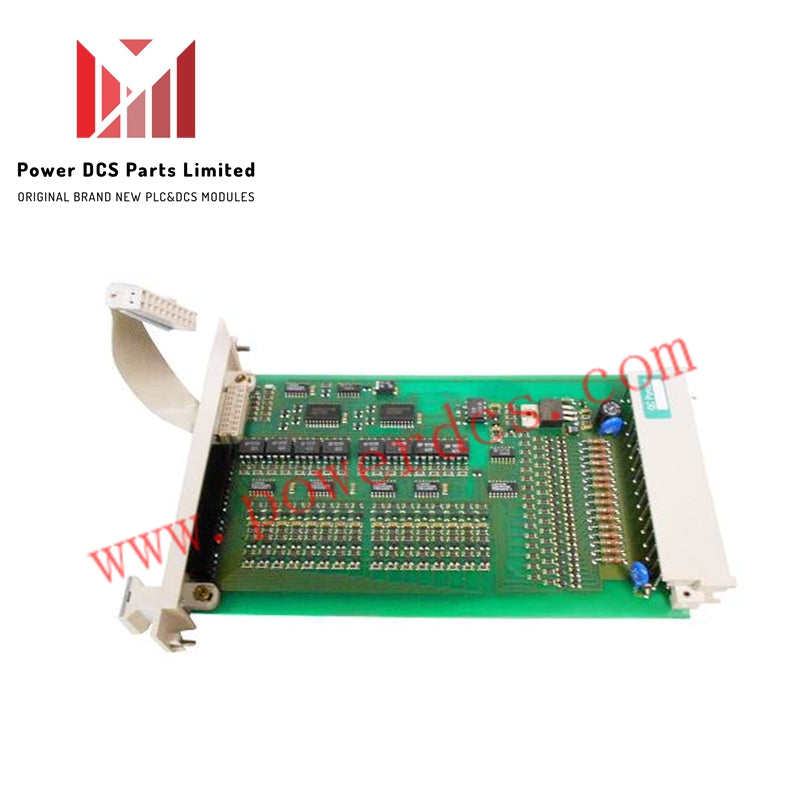

Configured for fail-safe discrete signal processing within safety-critical industrial infrastructures, the Honeywell 10101/2/1 (10101/2/1 Fail-safe Digital Input Module) provides direct physical/electrical execution across 16 input channels. It evaluates 24 VDC logic state transitions, filtering input levels to ensure reliable state detection and high-integrity safety loop performance.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 10101/2/1 |
| Brand | Honeywell |
| Weight | 0.2 Kg |
| Dimensions | 4 TE, 3 HE (4 HP, 3U) |
| Operating Temp | Not specified |
| Power Consumption | 5 VDC 8 mA, 24 VDC internal 110 mA, 24 VDC external 110 mA |
| Number of Input Channels | 16 |
| Maximum Input Voltage | 36 VDC |
| Input Current | 7 mA at 24 VDC |
| Input Logic Thresholds | HIGH > 15 VDC, LOW < 9 VDC (I < 2 mA) |
| Approvals | CE, TÜV, UL |
Channel-to-Channel Isolation And Safety Execution
Operating within safety instrumented frameworks, the module enforces strict electrical boundaries across all 16 input channels to prevent cross-talk and common-mode interference. Signal verification routines continuously monitor logic level transitions, confirming the integrity of incoming binary data. Galvanic isolation and rigorous threshold discrimination ensure that faulty external voltage surges or line disturbances are properly isolated, driving the system into a predictable, fail-safe state when signal parameters fall outside established safety limits.
Frequently Asked Questions
Q: Does the 10101/2/1 module support hot-swapping under power within the safety rack?
A: Hot-swapping is strictly prohibited during active safety loop execution; system power must be completely disconnected from the rack to prevent bus faults or unintended trip commands.
Q: What are the specific voltage limits for recognizing valid high and low logic states?
A: An input voltage exceeding 15 VDC is registered as a logical HIGH, whereas voltages dropping below 9 VDC with a current under 2 mA are interpreted as a logical LOW.
Field Installation Guidelines
- Ensure the safety rack backplane power is fully switched off and locked out before handling or inserting the module.
- Align the module card edge carefully with the 4 HP, 3U enclosure slot and seat it firmly into the backplane connector.
- Fasten the front panel securing screws to maintain robust mechanical placement and proper chassis ground continuity.
- Verify that external 24 VDC supply lines and field sensor wiring are terminated securely, keeping signal cables separated from high-voltage conduits to eliminate induced noise.
