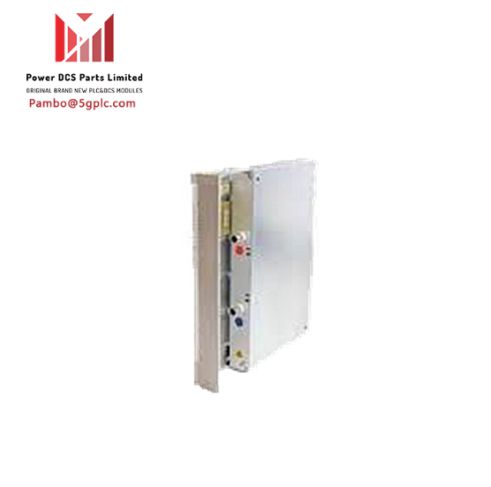

3BSE012868R1 ABB CI626V1 Communication Interface Module

Description

The ABB 3BSE012868R1 CI626V1 is an AF100 Communication Interface Module designed for seamless integration within the Advant OCS framework. It serves as a bridge, enabling communication between the Intelligent System Adapter (ISA) and the AF100 network.

Features

• Integrated Coaxial Media Modems: Drives up to 700 meters (2,300 feet) of 75-ohm coaxial cable.
• Galvanic Isolation: Ensures isolation between modems and the communication interface.
• Supports Multiple Stations: Connects up to 80 AF100 stations.
• Compact Design:
  • Dimensions: 10.0" x 2.0" x 11.0" (25.4 cm x 5.1 cm x 27.9 cm).
• Lightweight: Weighs approximately 1.4 kg (3 lbs).

Technical Specifications

• Model Number: 3BSE012868R1
• Type: AF100 Communication Interface Module
• Manufacturer: ABB
• Compatibility: Advant Master, Advant OCS
• Gross Weight: 1.44 kg
• Dimensions: 10.0" x 2.0" x 11.0" (25.4 cm x 5.1 cm x 27.9 cm)
• Tariff Code: 8517620050
