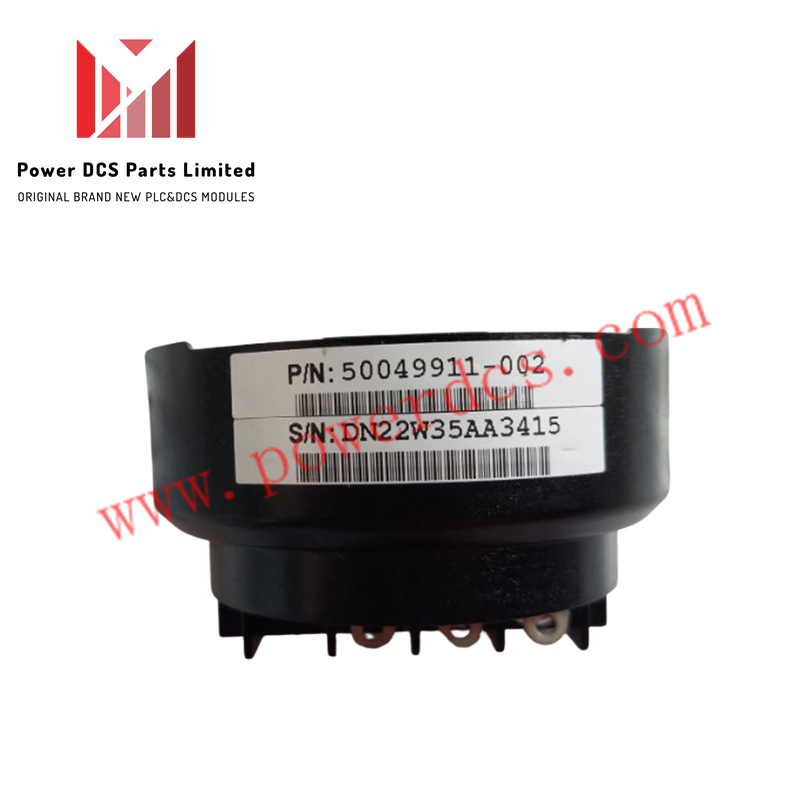

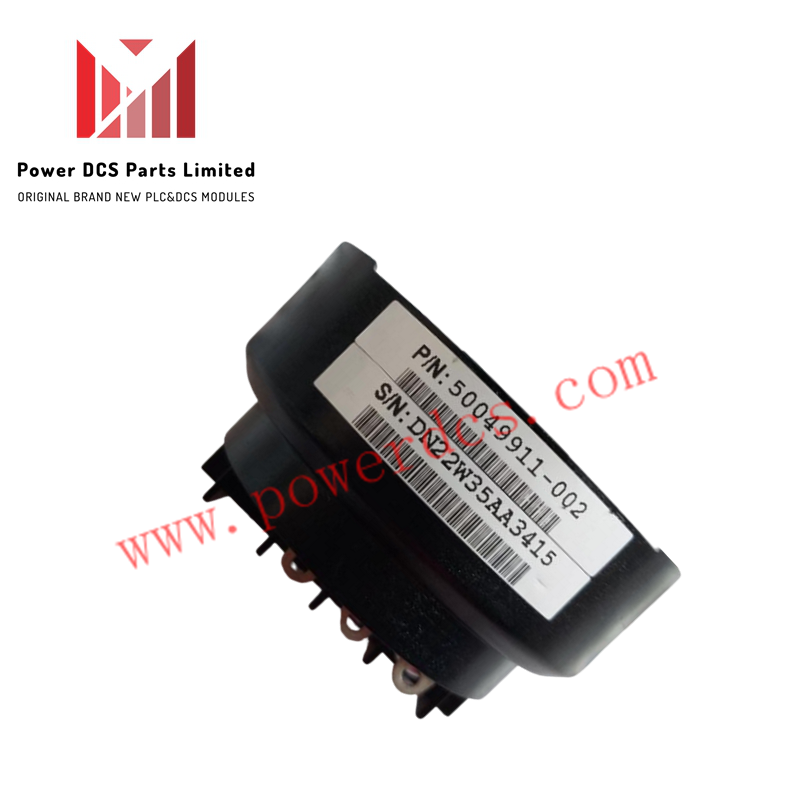

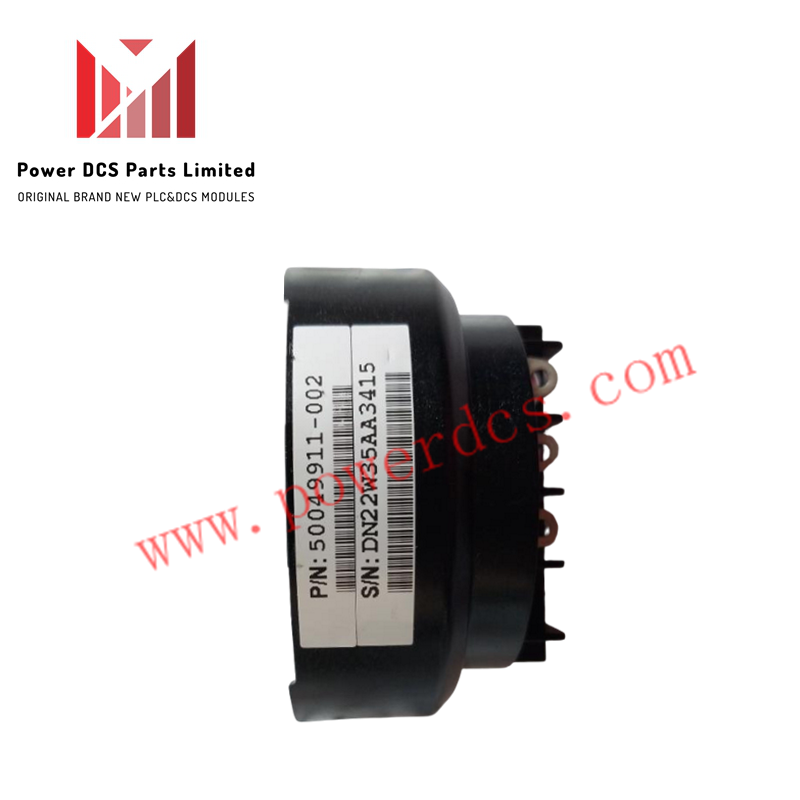

50049911-002 | Honeywell | Industrial Panel Display Module

The 50049911-002 is an industrial panel display module manufactured by Honeywell for DCS controller rack platforms. It translates internal controller bus signals into real-time alphanumeric and graphical status outputs, providing local diagnostics and operator feedback directly at the rack enclosure. Operating on 5.2 W drawn from the backplane power rails, this assembly incorporates channel-to-channel isolation and galvanic separation to protect logic circuitry from ground loops and field surges.

Bus Isolation and Signal Protection

The module features galvanic channel-to-channel isolation across its power distribution and signal interfaces, preventing ground potential variances between the display housing and backplane logic. This architecture blocks high-voltage field-side transients and suppresses common-mode electrical noise, maintaining stable data updates across the controller rack sub-bus.

Field Installation Guidelines

When installing or servicing the 50049911-002 display assembly, follow these procedural steps:

1. De-energize all rack and node power sources completely before installing or removing the unit.
2. Wear an ESD grounding wrist strap during handling to shield internal driver circuits from static discharge.
3. Align the module with its designated panel cutout guide rails and slide it in until the rear edge connector seats fully into the backplane.
4. Fasten all panel retention screws evenly to hand-tight torque to prevent loosening under industrial vibration.
5. Confirm low-impedance ground continuity between the display bezel and the cabinet frame, ensuring the panel gasket is properly seated to maintain enclosure sealing.

Frequently Asked Questions

Q: Can the Honeywell 50049911-002 display module be hot-swapped during operation?

A: No, system rack power must be completely turned off prior to removal or insertion to prevent backplane bus transients.

Q: How is operating power supplied to the 50049911-002 display?

A: Regulated DC power is drawn directly from the internal controller backplane power rails through the rear connector.

Q: What mounting requirements ensure proper cabinet sealing and grounding?

A: The panel gasket must be correctly seated against the enclosure cutout, and retention screws must be tightened evenly to secure low-impedance ground bonding.
