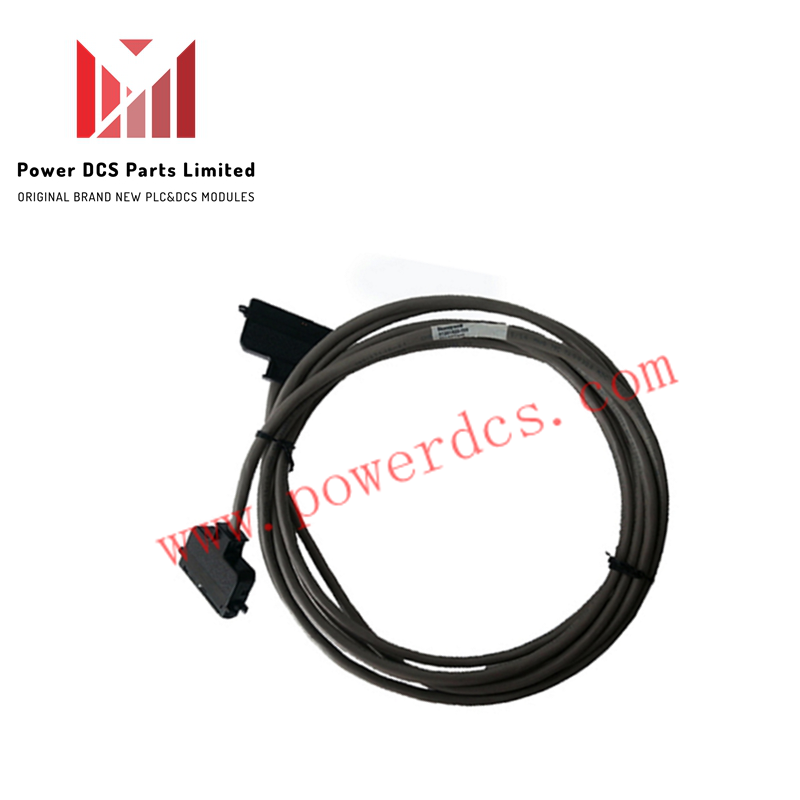

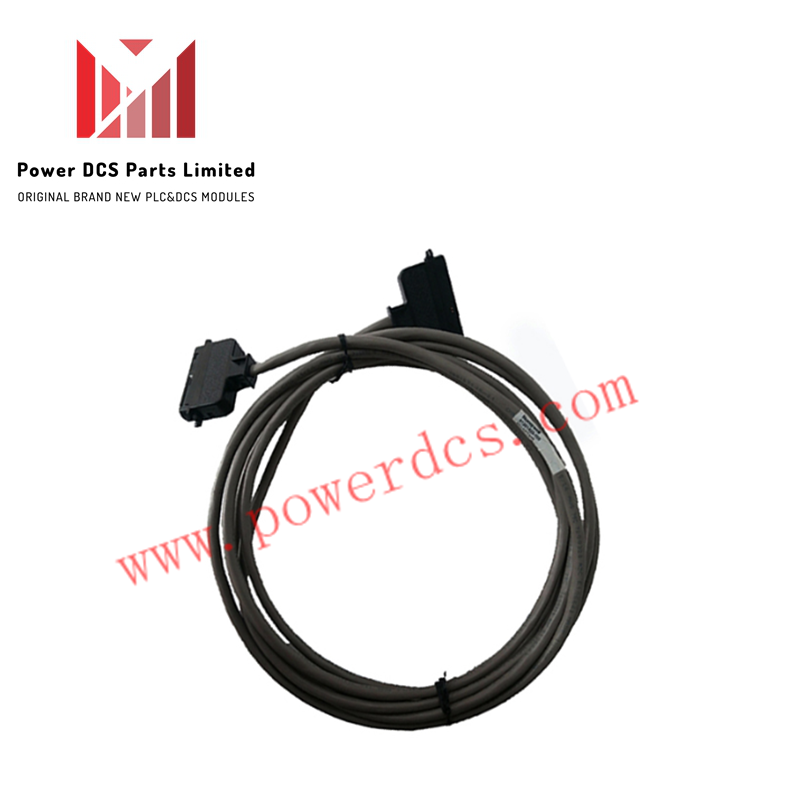

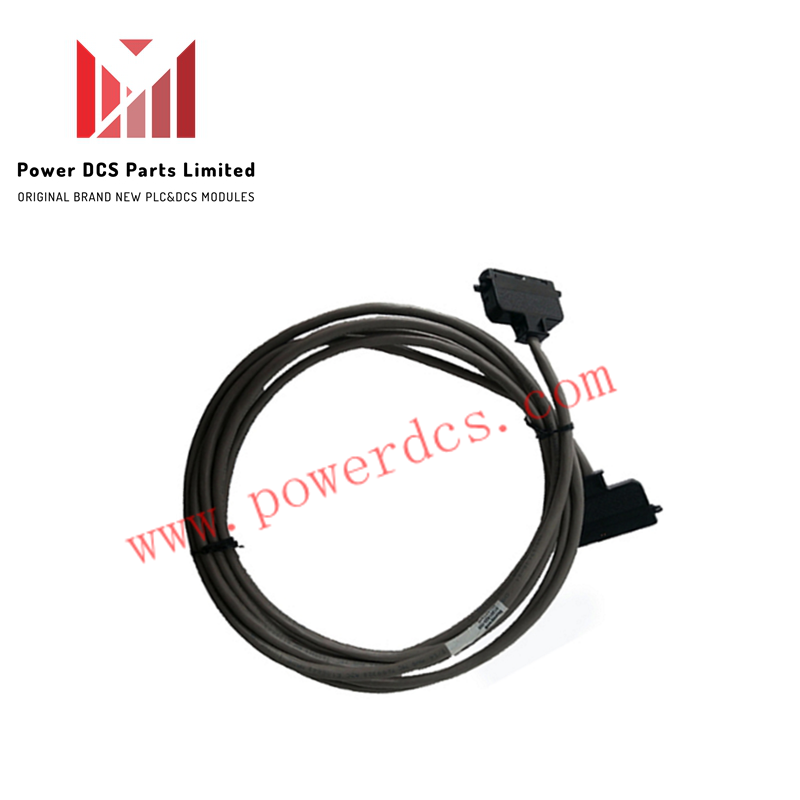

51202329-402 I/O Link Cable | Honeywell
Specifications
Manufacturer: Honeywell
Product No.: 51202329-402
Condition: 10 Items in Stock
Product Type: I/O Link Cables
Payment:T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months
Product details
Description
Configured for shielded differential communication and power transfer between nodes in Honeywell control networks, the Honeywell 51202329-402 (51202329-402 I/O Link Cable) provides direct physical signal execution and data exchange.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51202329-402 |
| Brand | Honeywell |
| Origin | United States |
| Weight | 0.2 kg (estimated) |
| Dimensions | 2 meters length |
| Operating Temp | -40 deg C to 85 deg C |
| Power Consumption | Passive cabling component |
| Cable Type | Shielded twisted pair with TPE jacketing |
| Connector Type | Standard RJ45 interface |
| Data Transfer Rate | Up to 10 Mbps |
Honeywell DCS Process Control and Signal Communication
The assembly integrates within Honeywell distributed control architecture, maintaining strict channel-to-channel isolation and cold junction compensation (CJC) path integrity. Standard configuration supports 4-20 mA HART loop protocol environments alongside high-speed digital communication layers. The integrated foil shielding minimizes electromagnetic interference (EMI) across noisy industrial floors, ensuring deterministic bus operation and low-latency packet transmission between field devices and master controller cards.
Frequently Asked Questions
Q: Does the 51202329-402 support hot-swapping on active controller networks?
A: Cabling adjustments must be performed with upstream loop power isolated to prevent communication dropouts or transient voltage spikes on connected control nodes.
Q: What type of shielding is utilized to protect data integrity against environmental noise?
A: The physical construction incorporates a foil shielding layer around the twisted pair conductors to suppress induced electromagnetic interference.
Field Installation Guidelines
- Verify that system power and communication loops are de-energized prior to routing and connecting the cable between controller nodes and interface modules.
- Route the 2-meter cable along designated internal cabinet wireways, maintaining physical separation from high-voltage AC power lines to prevent induced noise coupling.
- Secure connector plugs firmly to terminal interfaces, ensuring locking mechanisms or retention clips are fully engaged to withstand industrial vibration environments.
